Technical Parameter :
| capacity | items | unit | TC20 | TC20A | TC16 | TC16A |
| Max turning over bed/slide | mm
(in) |
Φ500/Φ320
(19.69/12.6) |
Φ500/Φ320
(19.69/12.6) |
Φ500/Φ370
(19.69/14.57) |
Φ500/Φ370
(19.69/14.57) |
|
| Max turning length | mm
(in) |
500
(19.69) |
500
(19.69) |
290
(11.41) |
290
(11.41) |
|
| Max turning dia. | mm
(in) |
Φ370
(14.57) |
Φ370
(14.57) |
Φ260
(10.24) |
Φ260
(10.24) |
|
| Max bar dia. | mm
(in) |
Φ51
(2) |
Φ51
(2) |
Φ50
(2) |
Φ50
(2) |
|
| Hydraulic chuck dia. | mm
(in) |
210
8〞 |
210
8〞 |
169
6〞 |
169
6〞 |
|
| spindle | spindle nose | GB5900.1 | A2-6 | A2-6 | A2-6 | A2-6 |
| Spindle taper hole size | 1:20 | 1:20 | 1:20 | 1:20 | ||
| Spindle thru-hole dia. | mm
(in) |
Φ62
(2.44) |
Φ62
(2.44) |
Φ66
(2.59) |
Φ66
(2.59) |
|
| spindle speed | r/min
(rpm) |
50～4500 | 50～4500 | 40～4200 | 40～4200 | |
| Main motor power(con/30min) | Kw
(hp) |
11/15
(14.96/20.4) |
15/18.5
(20.4/25.16) |
5.5/7.5
(7.48/10.2) |
7.5/11
(10.2/14.96) |
|
| tailstock | Quill diameter/travel | mm
(in) |
Φ90/100
(Φ3.54/3.94) |
Tailstock travel 600
(23.6) |
Φ70/80
(Φ2.76/3.15) |
|
| Center taper(standard/live spindle structure) | MT No. | 5/4 | 4 | 4 | ||
| carriage | slant degree | DEG | 45° | 45° | 30° | 30° |
| X/Z-axis travel | mm
(in) |
210/560
(8.27/22.04) |
210/560
(8.27/22.04) |
160/330
(6.3/12.99) |
160/330
(6.3/12.99) |
|
| X/Z-axis rapid traverse | m/min
(ipm) |
30/30
(1180/1180) |
30/30
(1180/1180) |
24/27
(944.88/1063) |
24/27
(944.88/1063) |
|
| Turret | number of station | 12 | 12 | 8 | 8 | |
| Tool section(turning/ boring) | mm | 25×25/Φ40 | 25×25/Φ40 | 25×25/Φ32 | 25×25/Φ32 | |
| others | power source | kVA | 45 | 45 | 23 | 23 |
| Dimension(L×W×H) | mm
(in) |
4426X2165X2048 (chip conveyer included)
(174.25X85.24X80.63) |
4426X2165X2048 (chip conveyer included)
(174.25X85.24X80.63) |
1866X2226X1661 (chip conveyer included)
(73.46X87.64X65.39) |
1866X2226X1661 (chip conveyer included)
(73.46X87.64X65.39) |
|
| Gross weight | Kg
(lbs) |
5500
(12127) |
5500
(12127) |
3600
(7938) |
3600
(7938) |
Introduction

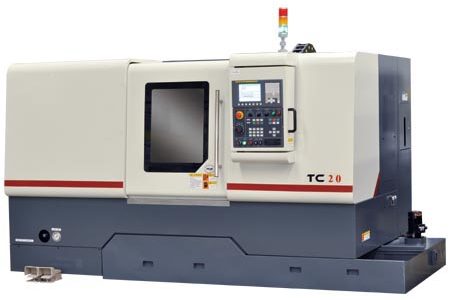

TC series CNC lathe including TC20, TC20A,TC16, TC16A, standard models with Fanuc 0i TF control, economical A type withChina made GSK988T control.
It can do middle and small batch machining oninternal and external cylinder, taper, curved surface, metric and inch threadsfor manufacturing, electric parts, auto, motorcycle, mold industries.
The machine is with whole piece casting of machine base with flat type machine bed,slant carriage structure, rigid spindle for heavy cutting. The servo spindleruns stable with low noise. The feeding system has imported ballscrews, linearguideways and bearings.
