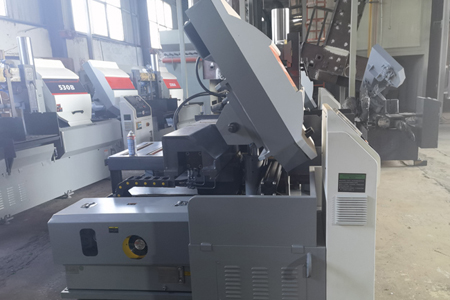

530mm Cutting Capacity full automatic bandsaw machine horizontal type
Round material: Ø530 mm
Square : 530X530mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications | 530A | 530B |
| Cutting capacity 0° (flat) (length x width) | 530*530 mm | 530*530 mm |
| Cutting capacity 0° (round) | 530 mm | 530 mm |
| Cutting capacity 0° (square) | 530*530 mm | 530*530 mm |
| Cutting speed infinitely variable | 25/55/85 m/min | 10~95 m/min |
| Stop length(single stroke) | 500 mm | 500 mm |
| Accuracy of the feeding(single feeding) | ±0.2 mm | ±0.2 mm |
| Saw blade size | 41*1.3*6240 mm | 41*1.3*6240 mm |
| Saw blade tension type | Manual | Hydraulic |
| Workbench height | 785 mm | 785 mm |
| Motor rating main drive | 7.5 kw | 7.5 kw |
| Motor rating of hydraulic feed | 1.5 kw | 1.5 kw |
| Overall dimensions (length x width x height) | 3300*2000*2000 mm | 3300*2000*2000 mm |
| Weight(NET WEIGHT) | 3700 kg | 3780 kg |
Resources & Downloads:
530mm Cutting Capacity full automatic bandsaw machine horizontal type Product Introduction :
Product Details

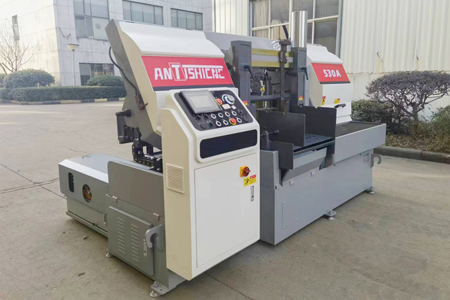

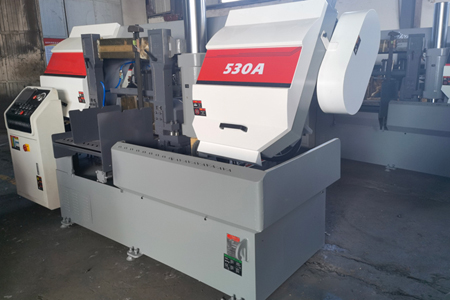

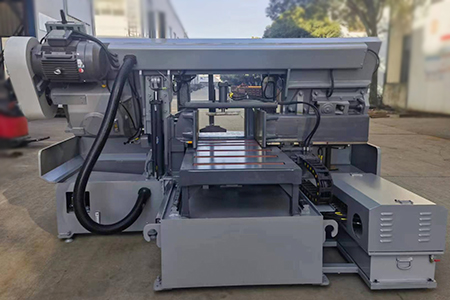

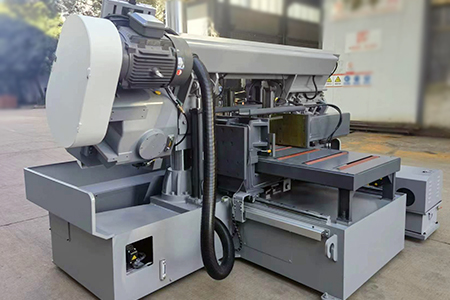

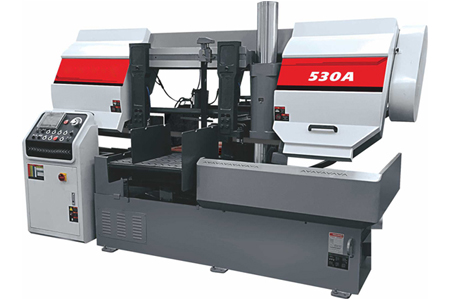

The 530A and 530B full automatic cutting bandsaw machine is new advanced design with one time forming structure. No welding frame. All operating switches are clearly grouped on a touchscreen and control panel. The machine aims to the fully-automatic control as it’s main feature. Using PLC touch screen panel, you can regulate the saw frame feed, steplessly adjust the saw blade speed and machine the work-piece hydraulically. The robust automatic material feed does not need any electronics or programming and still offers high repeat and dimensional accuracy.
Features
Rigid dual column frame with column guide for superior stability
Control panel with touchscreen
Hydraulic vise work-piece clamping
Automatic saw blade overload control
Support table with integrated feed rollers
Material feed system with work-piece guide rollers
Fast approaching bar detection of the work-piece height
Feed roller table 700 m (27 inch)
Our Advantages
●530A and 530B series horizontal band saw, the evolution of the classic medium size bandsaw:
Sawing speed increased by 50%;
Saw blade life increased by 50%
Machining accuracy increased by 50%;
Equipment life increased by 50%
●Four major technological breakthroughs, all-round upgrades
●Intelligent welding: robot welding, beyond the human beings limit to ensure stability, uniformity and consistency
●Special processing: micron-level precision CNC multi-faceted processing at one time, shot blasting, corrosion-resistant and wear-resistant coating to ensure high precision, durability and reliability of parts
●Precision assembly: 35 years of technology accumulation, process assembly, stable and efficient equipment operation guarantee
●Industrial design: International industrial design company creatively design
●Six system-level evolution, new standard for all-aspect sawing
This machine is an equipment for sawing metal materials with bimetallic saw blades. It has the advantages of compact structure, fast cutting speed, high precision, narrow saw gap, low noise, convenient operation, etc. It is a new energy-saving product that replaces circular saws and bow saws.
It is widely used for sawing various metal materials in various industries such as electro mechanical, metallurgy, automobiles, bridges, and ships.
Standard Equipment（530A)
Saw-band
Work-piece counter
Band break control
Coolant system
Hydraulic clamping
Feed roller table 700 m (27 inch)
Linear stop
Operator instructions
Optional Equipment (530B)
Bi-metallic band saw blade 41*1.3*6240mm
2 meter roller table for 530 bandsaw
Chip conveyor and trolley for 530 bandsaw
Hydraulic blade tentioning for 530 bandsaw
Clamping force regulation at Hydraulic station
