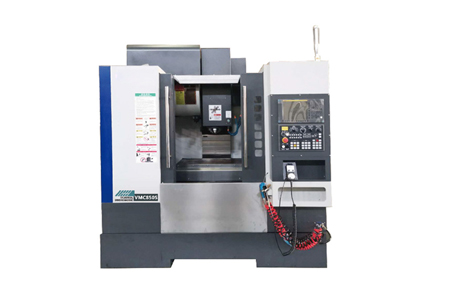

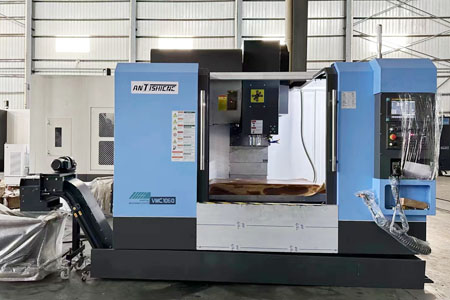

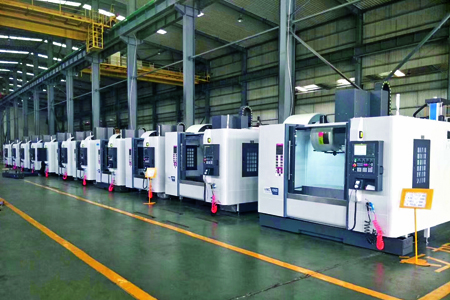

VMC Series Vertical Machine Center
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Technical SPEC| Model | Unit | VMC650 | VMC850 | VMC855 | VMC1060 | VMC1160 | VMC1260 | VMC1370 | VMC1380 | VMC1580 | VMC1680 | VMC1890 | |
Table Size(length*width) | mm | 800×500 | 1000×500 | 1000×550 | 1200*600 | 1200*600 | 1200×600 | 1400X700 | 1400X800 | 1600×800 | 1700×800 | 2000×900 | |
Max Loading Weight | kg | 400 | 500 | 500 | 800 | 800 | 800 | 1200 | 1300 | 1500 | 1500 | 2000 | |
Number-width x distance | mm | 5-18×90 | 5-18×90 | 5-18×90 | 5-18×100 | 5-18×100 | 5-18×100 | 5-18×110 | 7-18×110 | 7-22*110 | 7-22*110 | 7-22*125 | |
X/Y/Z Travel | mm | 650/500/500 | 800/500/500 | 800/550/550 | 1000/600/600 | 1000/600/600 | 1200/600/600 | 1300/700/700 | 1300/800/700 | 1500/800/700 | 1600/800/700 | 1800/900/800 | |
Max .Distance From spindle nose to Table Surface | mm | 120-620 | 150-650 | 120-670 | 120-720 | 120-720 | 120-720 | 100-800/160-760 | 185-885 | 150-850 | 155-855 | 150-950 | |
Spindle center to Z axis guide surface | mm | 550 | 570 | 595 | 650 | 650 | 650 | 750 | 850 | 855 | 855 | 950 | |
Spindle motor power | kW | 7.5/11 | 7.5/11 | 7.5/11 | 11月15日 | 11月15日 | 11月15日 | 11/15/15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | |
Max. Spindle Speed | rpm | 10000 | 10000 | 8000 | 8000 | 8000 | 8000 | 8000/6000 | 8000/6000 | 6000 | 6000 | 6000 | |
Spindle Taper | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40/BT50 | BT50 | BT50 | BT50 | BT50 | ||
3 axis rapid speed | m/min | 48/48/48 | 48/48/36 | 48/48/36 | 36/36/36 . | 36/36/36 . | 36/36/36 | 24/24/24 | 20/20/20 | 20/20/20 | 20/20/20 | 18/18/15 | |
Max cutting speed | m/min | 10 | 10 | 0 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
Pull stud | MAS403 BT40-45° | MAS403 BT40-45° | MAS403 BT40-45° | MAS403 BT40-45° | MAS403 BT40-45° | MAS403 BT40-45° | MAS403 BT40-45° | MAS403 BT50-45° | MAS403 BT50-45° | MAS403 BT50-45 | MAS403 BT50-45 | ||
ATC capacity | BT40-24T | BT40-24T | BT40-24T | BT40-24T | BT40-24T | BT40-24T | BT40/50-24T | BT50-24T | BT50-24T | arm type BT50-24T | arm type BT50-24T | ||
Max. Diameter of tool length | mm | Φ85×350 | Φ85×350 | Φ85×350 | Φ85×350 | Φ85×350 | Φ85×350 | Φ85/125*350 | Φ125×300 | Φ125*300 | 125×300 | 125×300 | |
Positioning Accuracy | mm | ±0.004 | ±0.004 | 0.004 | +0.004. | 0.004 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | |
Repeatability Accuracy | mm | ±0.003 | ±0.003 | 0.003 | 0.003 | 0.003 | +0,004 | +0,004 | +0,004 | +0,004 | 0.004 | 0.004 | |
CNC system | FANUC/SIEMENS/MITSUBISHI CNC OPERATION SYSTEM | ||||||||||||
Machine Size (L*W*H) | mm | 2100x2600x2650 | 2700x2500x2650 | 2700x2500x2650 | 3200x2550x2700 | 3200x2550x2700 | 3200x2550x2700 | 3500x2700x2800 | 4000x2700x2800 | 4100x2700x2800 | 4150×3370×2900 | 4300×3450×2900 | |
Machine Weight | Kg | 4900 | 5300 | 5800 | 6800 | 7000 | 7500 | 10800 | 13800 | 14300 | 14800 | 15800 |
Product Features:
The machine tool adopts a new generation of vertical machining center with high precision, high speed and high rigidity developed by 3D computer-aided design and finite element analysis. The guide rail adopts three-line rail (or two-line one-hard) guide rails, and the maximum rapid speed can reach 48m / min, spindle speed 6000 to 15000 rpm optional positioning accuracy <4μm, repeated positioning <3μm; suitable for various mechanical processing fields such as mold, military industry, hardware, auto parts and so on.
Product Description :
VMC series vertical machining center inherits the advantages of strong rigidity, symmetrical struc-ture and strong stability of the foundation frame of the traditional vertical CNC milling machine,introduces the international advanced dynamic rigidity design concept, and optimizes the design of the moving parts.
![](https://www.antsmachine.com/wp-content/uploads/2021/11/9a9wJrJ6RiGUXVqrXoB9qQ-1.jpg)
Number | Standard Equipment | Number | Optional Equipment |
1 | The back row chip full cover sheet metal without the chip | 1 | Front row chip full cover sheet metal belt chip remover |
2 | Drawer type water tank and chip box | 2 | Central outlet function of spindle |
3 | Backward impact chip washing device | 3 | 3 axis linear scale |
4 | Full-function operation panel and handwheel | 4 | Function of the fourth axis |
5 | ATC | 5 | Spindle oil cooling function |
6 | Belt drive spindle | 6 | Straight connection drive spindle |
7 | Sprinkler cooling system at the spindle side | 7 | Oil-water separation device |
8 | Air cooling system at spindle side | 8 | Workpiece and tool measuring device |
9 | Heat exchange device of electric cabinet | 9 | Door open switch |
10 | Work area cleaning water gun, air gun | 10 | High speed and high precision functions |
11 | Working light and alarm light | 11 | Column elevation (bridge type or height block) |
