FB-1530 1500w Fiber Laser Cutting Machine
Processing area(L×W) : 3000x1500mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | FL-1530 |
| Processing area(L×W) | 3000mm×1500mm |
| Power | 1500w |
| X axis track | 1550mm |
| Y axis track | 3050mm |
| Z axis track | 150mm |
| X,Y axis positioning accuracy | ±0.03mm/m |
| X,Y axis repeat positioning accuracy | ±0.02mm/m |
| X, Y axis max speed | 80m/min |
| X,Y axis max acceleration | 1G |
| Max.load of worktable | 900Kg |
| CNC system | Cypcut Fscut2000 |
| Voltage/Power | 380V/50HZ / 14KW |
| Dimension(L×W×H) | Around 4700mm×42HL-200mm×1600mm |
Product Details
FSCUT2000 cutting software is a three-dimensional pipe cutting software, you can directly read UG, Solid Works software export IGS format files, automatically extract the section to be cut and the track to be cut, without manual editing and selection. Fast and convenient automatic leveling and center correction function eliminates the cumbersome manual operation, improve the accuracy of cutting; automatically according to the size of the pipe to calculate the pipe rotation and single-sided cutting head when the lifting height, to avoid cutting the process of collision. But also greatly reduces the single-sided cutting when the unnecessary lift, save time.
Max laser source 1500W
Max laser has higher elector-optical conversion efficiency (>35%), higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting.
This machine applies to many application scenarios: cutting, welding holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.
Features
Output Power up to 20KW at work piece
Maintenance-free Operation
Wall-Plug Efficiency 40%
Cost-effective cutting system
Fiber delivery 50,100,150 or 200um
Record Reliability
Hot Redundancy
Compact Rugged Design

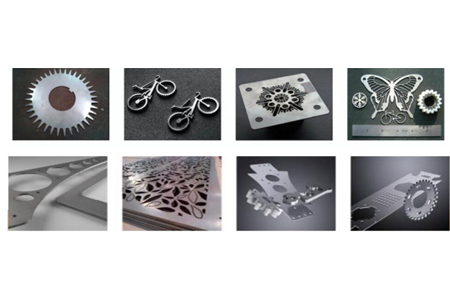

Applications
2D/3D thin & thick metal cutting
Cutting Mild and Stainless Steel
Optimized for 24/7 cutting operations
Processing Titanium
Processing Highly Reflective Materials: Copper, Brass& Aluminum
Other Details

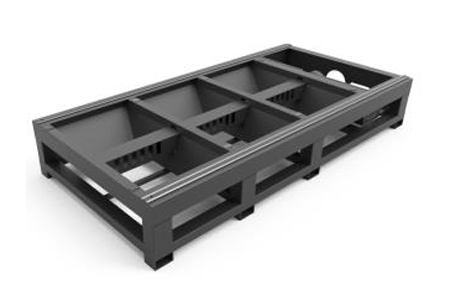

Tube welding machine base.
Max laser source.
Ray tools Laser head with auto focus( for laser power 1.5kw).
Cypcut Fscut2000 controller.
Separately cabinet
CHINT electric parts
Tube welding
Italian COLGAR machine milling boring
Zonal ventilation design
Machine error accuracy 0.05mm
With 24 hours quenching process
Support max moving speed 70m/min
Standard Equipment
| Name | Quantity | Brand and Origin |
| Laser Source | ||
| 1500W | 1 | Max |
| Laser Head | ||
| Auto-focusing Laser Cutting Heads | 1 | RAYTOOLS |
| Machine Base & Fittings | ||
| Machine Base | 1 | ANTISHI |
| X Rack | Taiwan | |
| Guide | Taiwan | |
| Electric Parts | CHINT,AIRTECH | |
| Machine Tools | 1 | ANTISHI |
| Reducer | 3 | Niece |
| Software & Servo Motor | ||
| Software | 1 | Cypcut Fscut2000 |
| Servo Motor | 4 | INOVANCE |
| Technique Database | 1 | ANTISHI |
| Attachment | ||
| Operating Floor | 1 | ANTISHI |
| Water Chiller | 1 | S&A |
| Exhaust Fan | 1 | ANTISHI |
| Auto Oil Box | 1 | ANTISHI |
| Graphic Format Support: Pro/E.UG,AutoCAD | ||
