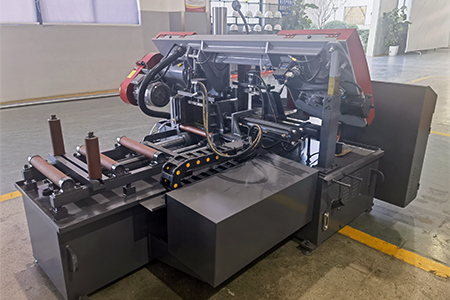

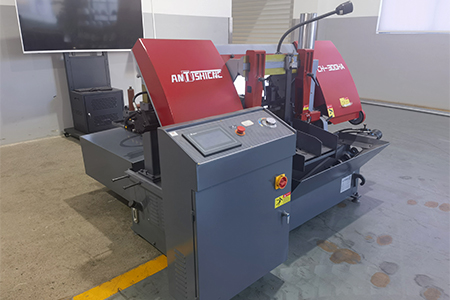

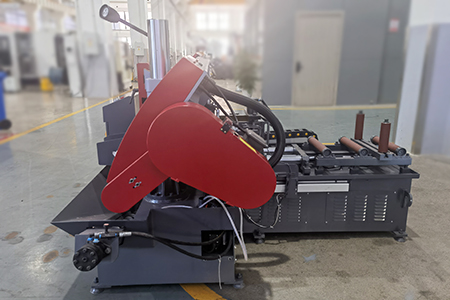

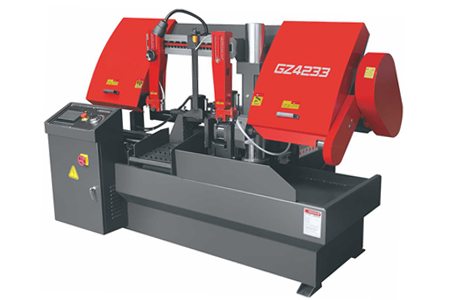

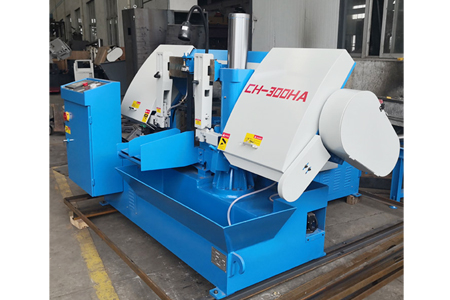

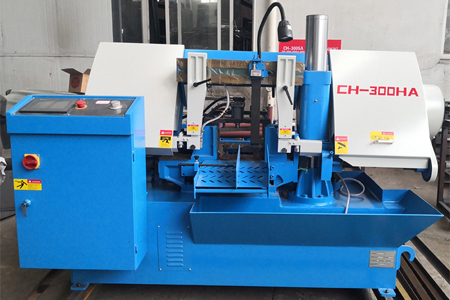

Fully Automatic PLC Control Horizontal Straight Cutting Bandsaws GZ4233(CH-300HA)
Round material: Ø330 mm
Square material: 330w x 330h
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications | GZ4233(CH-300HA) |
| Cutting capacity 0° (flat) (length x width) | 330*330mm |
| Cutting capacity 0° (round) | 330mm |
| Cutting capacity 0° (square) | 330*330mm |
| Cutting speed infinitely variable | 22/35/50/75m/min |
| Stop length(single stroke) | 500mm |
| Accuracy of the feeding(single feeding) | ±0.2mm |
| Saw blade size | 34*1.1*4115mm |
| Saw blade tension type | Manual |
| Workbench height | 500mm |
| Motor rating main drive | 4kw |
| Motor rating of hydraulic feed | 0.75kw |
| Overall dimensions (length x width x height) | 2050x2050x1380 |
| Weight(NET WEIGHT) | 1584kgs |
| Blade size | 34*1.1*4115mm |
Product Details
The ANTISHI company GZ Series PLC control fully automatic metal cutting bandsaw machine is a robust, modern-to-use workshop saw for precise sawing of medium diameters. All operating switches are clearly grouped on a touchscreen and control panel. The machine aims to the fully-automatic control as it’s main feature. Using PLC touch screen panel, you can regulate the saw frame feed, steplessly adjust the saw blade speed and machine the work-piece hydraulically. The robust automatic material feed does not need any electronics or programming and still offers high repeat and dimensional accuracy.
GZ series band saws, which are designed for straight cuts in larger work-pieces made of steel, cast iron and other metals. The rigid dual column frame is extremely stable and the main drive is via low-maintenance V-belts. The work-piece clamping and the stroke of the saw frame are driven hydraulically.
Features
Rigid dual column frame with column guide for superior stability
Control panel with touchscreen
Hydraulic vise work-piece clamping
Automatic saw blade overload control
Support table with integrated feed rollers
Material feed system with work-piece guide rollers
Fast approaching bar detection of the work-piece height
Feed roller table 700 m (27 inch)
Standard Equipment
Hydraulic part clamping
Bimetallic band saw blade
Support with roller
Coolant system
Work lamp
Operating tools
Operator manual
Optional Equipment
| NO. | Spare parts Description | Specification | Function |
| 1 | Detachable rack | 2 meter | Take the load of materials |
| 2 | Press-up device | CH-300HA | Installed on a vice |
| 3 | Pressure reducing valve | Clamping force regulation at Hydraulic station | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
| 4 | Spiral chip conveyor | CH-300HA | Remove the cutting chips |
| 5 | Saw belt hydraulic tensioning | CH-300HA | Tension the saw blade hydraulically |
| 6 | Inverter | CH-300HA |
