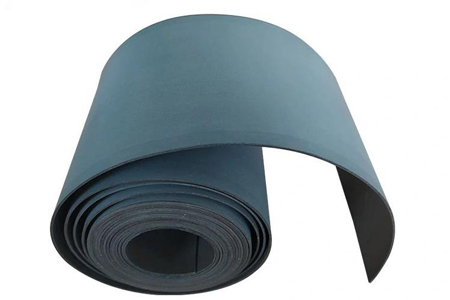

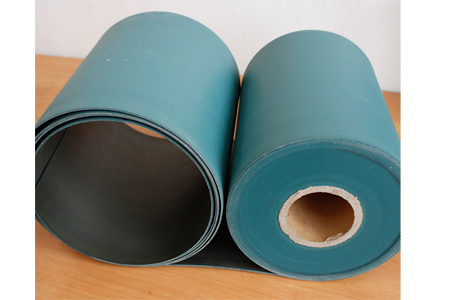

Blue-green composite machine tool guide rail soft belt | ||
Name | Parameter | Remark |
Wear | 0.008mm/100km | P=1.2MPa V=10m/min |
friction coefficient | 0.18 | F=250N,n=200r/min, No 30 engine oil |
compression deformation rate | 0.08% | P1.2MPa t=24h |
limit value of PV | 0.65MPa㎧ | V=1.0m/s,dry rub |
adhesive shear strength | 12MPa | Hg4-853-81 |
specific gravity | 3.4 | |
storage period | 15 years | Keep away from light and retest after expiration |
The ANTISHICNC imported blue-green composite machine tool guide soft belt is produced with imported raw materials, which ensures the product quality and reduces the production cost, greatly reducing the enterprise’s procurement cost
