Straight feed CNC Cylindrical Grinding Machine with Truss Manipulator
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| ITEM | Unit | Machine Model：
FX27P-60CNC |
|
| Processing Capability | Maximum rotating diameter of worktable | mm | 270 |
| The longest distance between two thimble | mm | 600 | |
| Maximum grinding diameter | mm | 270 | |
| Maximum load between two top centers | Kg(b) | 60(Centers work)
20(Work head work) |
|
| Grinding wheel size (diameter × width × aperture) | mm | 405×38(32-50)×127 | |
| Wheel speed | rpm | 1650 | |
| Maximum linear speed of grinding wheel | m/s | 35(65 with High speed grinding wheel) | |
| Wheel dressing | mm | Automatic | |
| Wheel head | Feed angle | Deg | 90 |
| Feed stroke | mm | 220 | |
| X axis feed speed | m/min | 6 | |
| X axis minimum feed | mm | 0.001 | |
| Head stock | Spindle speed | rpm | 50-500 |
| Spindle form | Simultaneous movement or centering | ||
| Thimble specifications | MT-5 | ||
| Tailstock | Automatic telescopic distance | mm | 40 |
| Center specifications | MT-4 | ||
| Workbench | Z axis fast moving speed | m/min | 8 |
| Z axis minimum feed | mm | 0.001 | |
| Maximum travel stroke | mm | 640 | |
| Rotation angle | Deg | +7/-3 | |
| Motor | Wheel spindle motor | KW | 3.75 |
| X axis feed motor (servo) | KW | 1.5 | |
| Z axis feed motor (servo) | KW | 1.5 | |
| Headstock spindle motor | KW | 0.75 | |
| Cooling water pump motor | KW | 0.75 | |
| Lubricating oil motor | KW | 0.25*2 | |
| Tailstock oil pump motor | KW | 0.75 | |
| Others | Machine net weight | Kg | 3300 |
| Gross weight | Kg | 3500 | |
| Packing size (length * width * height) | mm | 2700*2000*2000 | |
Product Detail

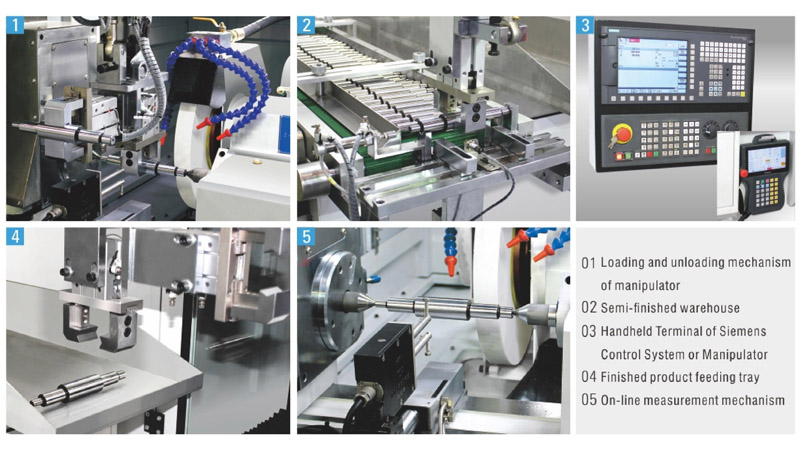

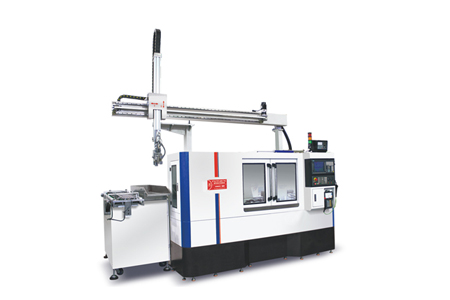

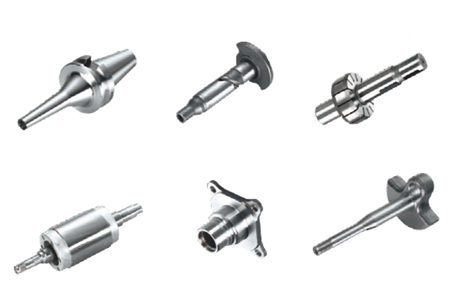

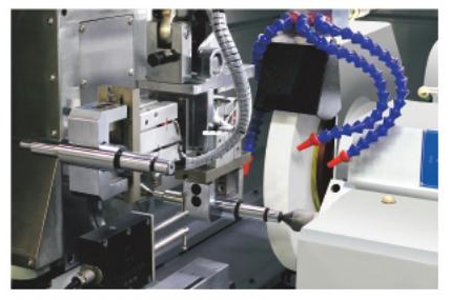

FX27P-60CNC high precision straight feed cylindrical grinding machine is full cover type, with the truss manipulator. It reclaims and unloads the material automatically.
The grinding machine equipped with active measuring device to realize full closed-loop control of grinding process.
Features :
●This equipment is a fully automatic CNC machining form integrating external cylindrical grinding machine and a robot. It can automatically load and unload in the grinding process, realize one-person multi-machine management mode, minimize labor cost and realize the establishment of industrial production line.
●The Siemens system controls the whole machine operation, including online measurement, and abnormal warning. The robot system can adapt to the processing of work-pieces of different shapes, it can effectively control the precision and consistency of the work-piece.
●The 90-degree rotary robot minimizes the cumbersome loading and unloading, redundant movements, and full monitoring of the work-piece to prevent the product from colliding with the machine and ensuring the safety of the operator.
●The overall structure of the grinding system is compact, maximizing the use of workshop space and excellent overall cost performance.
Optional Equipment
1. Inner hole grinding device

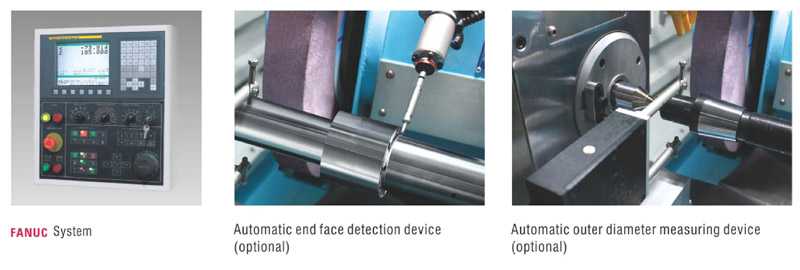

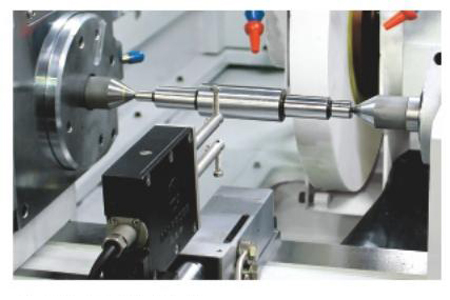

2. Outer diameter online automatic measuring instrument
3. End face online automatic measuring instrument
4. Magnet + paper belt filter
5. Full cover sheet metal
6. Roller sand repairing device
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
