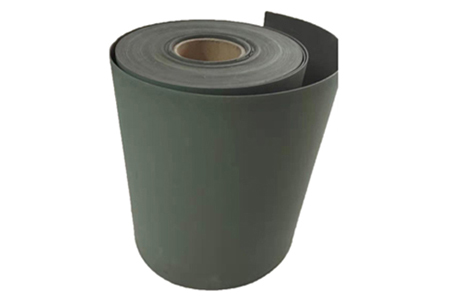

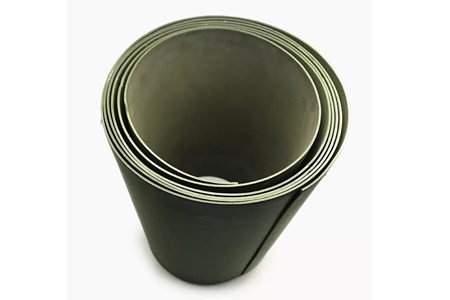

Dark green composite machine tool guide rail soft belt
Name Parameter Remark
Wear 0.0011mm/100km P=1.2MPa V=10m/min
Friction Coefficient 0.3 F=250N,n=200r/min, No.30 engine oil
Compression Deformation Rate 0.10% P1.2MPa  t=24h
Limit Value Of PV 0.60MPa㎧ V=1.0m/s,dry rub
Adhesive Shear Strength 12MPa Hg4-853-81
Specific Gravity 3.25
Storage Period 15 years Keep away from light and retest after expiration


Dark green composite machine guide adopts domestic leading technology. Domestic raw material production, technical indicators comparable to imported soft belt, is Shanghai ANTISHI most cost-effective products.
