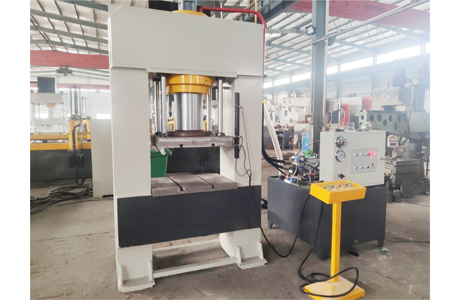

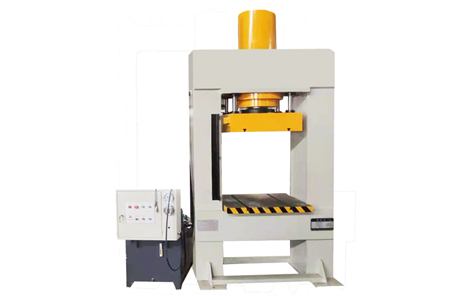

HP22 Series Gantry Hydraulic Press Machine

Nominal Pressure : 10~500T

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Description Unit HP22-10T HP22-30T HP22-50T HP22-63T HP22-100T HP22-150T HP22-200T HP22-315T HP22-500T
Nominal Pressure KN 100 300 500 630 1000 1500 2000 3150 5000
Liquid Max. Working Pressure Mpa 25 25 25 25 25 25 25 25 25
Oil cylinder range mm 50 200 220 220 400 250 1200 500 1150
The largest open mm / 270 405 405 1000 405 2200 800 2060
Table size mm 220*130 300×400 480×360 400×500 300×400 440×980 1500*1500 1000×700 4000×1000
Machine dimension mm / 1160×550×1600 1500×650×1950 1500×650×1950 1160×550×1600 1730×730×2250 / / /

Introduction:
HP22 series gantry frame hydraulic press provides the most economical hydraulic press for your processing, suitable for metal materials (watches, hardware products, bicycles, motorcycles, tableware, kitchen utensils, automobiles, electrical appliances, rubber, grinding wheels, buttons, gold and silver jewelry, ceramics, powder metallurgy, etc.), such as bending, flanging, extrusion, forming, correction, press-fitting, etc.; it can also be used for stamping and forming of plastic materials.

Features:
1. HP22 series gantry frame hydraulic press is small in size, simple in structure, economical and applicable; it is suitable for outdoor and infrequently used occasions.
2. HP22 series gantry frame hydraulic press can perform assembly, disassembly, straightening, calendering, stretching, bending, punching and other work on machine parts.
3. The manual has the advantages of reasonable structure, stable performance, stable output pressure, safety and reliability, etc., and truly realizes one machine with multiple functions.
4. The power source of the 100-ton gantry frame hydraulic machine can be operated manually or electrically, which is simple and quick, compact in structure, and sensitive and reliable in action. Fast speed, low energy consumption and low noise.
5. Various variants of this series of machine tools can be produced according to user requirements, and the pressure maintaining function can also be realized. The overall steel plate welding frame type frame is adopted, which has good overall rigidity and high compressive strength;
6. The pressure, stroke and holding pressure can be adjusted according to the requirements of the pressing process;
7. It has different derived models such as lower jacking, upper jacking, upper and lower composite jacking or shallow drawing, which are suitable for various pressing and forming processes;
8. After closing the mold, the pressure starts quickly, and it only takes a few seconds to reach the rated pressure;
9. The independent fuel tank is adopted, which is convenient to replace and clean the fuel tank; after more than ten years of mass production, the quality is stable and the performance is reliable.
