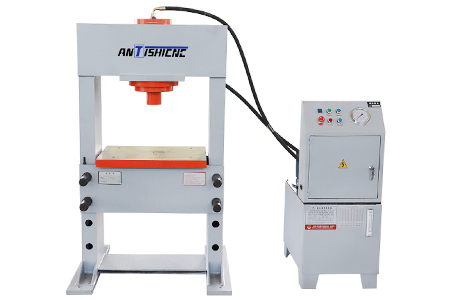

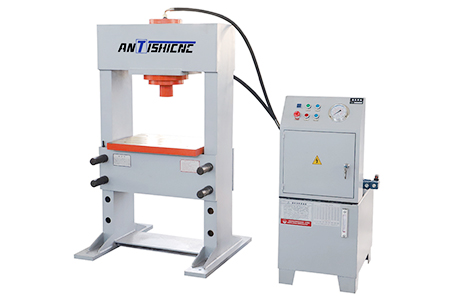

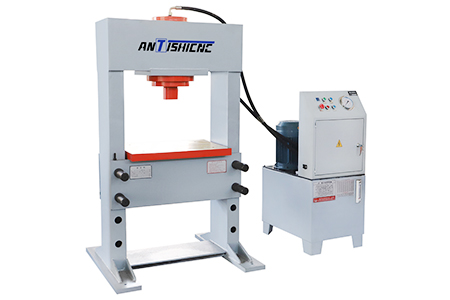

YM41-100T 100 Tons Gantry Column structure hydraulic presses machine
Liquid pressure: 31.5Mpa
Stroke: 240mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Description | YM41-100TA | YM41-100TB |
| Liquid pressure (MPA) | 31.5 | 31.5 |
| Stroke (mm) | 240 | 240 |
| Gantry span (mm) | 520 | 720 |
| Table size (mm) | 500*500 | 700*500 |
| Motor power (kw) | 5.5 | 5.5/5.5/7.5 |
| Oil pump displacement (ml/R) | 10/25/40 | 10/25/0 |
| Descending speed (mm/s) | 7.5/19/30 | 7.5/19/30 |
| Return speed (mm/s) | 10/25/41 | 10/25/41 |
Resources & Downloads:
YM41-100T 100 Tons Gantry Column structure hydraulic presses machine Product Introduction :
Machine Introduction:
100 tons gantry column structure hydraulic press machine, also known as 100 tons gantry frame hydraulic press machine, adopts gantry frame all-steel structure, vibration aging treatment to make the mechanical deformation is small, frame design by finite element design, with high rigidity and high precision. Gantry hydraulic press machine table can move up and down, expanding the machine opening and closing height, more convenient to use. It is composed of master cylinder, hydraulic power system and electrical system. The working table is welded with high quality steel plate to ensure reliability and durability.
Application:
100 tons gantry hydraulic press machine is widely used in the mechanical industry, disassembly, molding, straightening, stretching, sheet metal molding press work, and can be a one-time cold riveting molding of the parting teeth is the modern automotive repair industry needs pressure equipment.
Features:
1.100 tons gantry hydraulic press machine adopts all-steel structure, by vibration aging treatment to make the mechanical deformation is small, frame design by finite element analysis, with high rigidity, high precision.
2.The working table is welded with steel plate to ensure reliability and durability.
3.The structure of 100 tons gantry hydraulic press machine is simple, economical and practical, and the hydraulic control adopts cartridge valve integrated system;
4.Reliable action, long service life, small hydraulic shock, and reduce connection management and leakage points;
5.Independent electrical control system, reliable work, intuitive action, easy maintenance, the use of buttons centralized control, hydraulic press machine with adjustment and semi-automatic operation;
6.Through the operation panel selection, can realize the fixed range, fixed pressure two kinds of forming process, and has the holding pressure delay time and other functions;
7.100 tons of gantry hydraulic press machine ram working pressure, no-load fast downstream and slow working into the stroke range can be adjusted according to the needs of the technology.
| 100 tons gantry hydraulic press machine adopts all-steel structure, by vibration aging treatment to make the mechanical deformation is small, frame design by finite element analysis, with high rigidity, high precision. Reliable action, long service life, small hydraulic shock, and reduce connection management and leakage points. |  |
 |

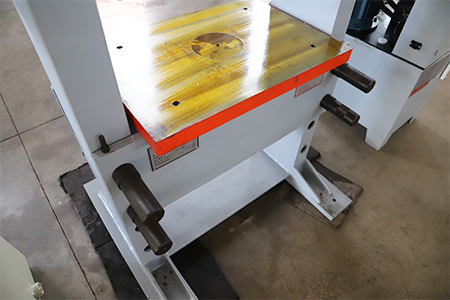

The working table is welded with steel plate to ensure reliability and durability. |
| The structure of 100 tons gantry hydraulic press machine is simple, economical and practical, and the hydraulic control adopts cartridge valve integrated system |  |
 |
Independent electrical control system, reliable work, intuitive action, easy maintenance, the use of buttons centralized control, hydraulic press machine with adjustment and semi-automatic operation |
| Through the operation panel selection, can realize the fixed range, fixed pressure two kinds of forming process, and has the holding pressure delay time and other functions |  |
 |
100 tons of gantry hydraulic press machine ram working pressure, no-load fast downstream and slow working into the stroke range can be adjusted according to the needs of the technology |
YM41-100T Hydraulic Press Machine Main Parts
| Oil Pressure Pump:
Compared with the plug-in oil pump, the horizontal positioning of the oil pump can reduce the heat generation, the oil temperature rises slowly, and the machine life is extended. |
 |
| Hydraulic Tank:
Shot blasting combines three new processes of high-pressure vacuuming dough clearance. After the equipment is commissioned, the fuel tank is opened again, and the hydraulic oil flows into the main tank through the high pressure, and the components of each part are cleaned twice. |
 |
| Piston Rod:
Piston rod surface hardness to 55℃ is an effective solution to seal ring injury, and not easy to scratch. |
 |
