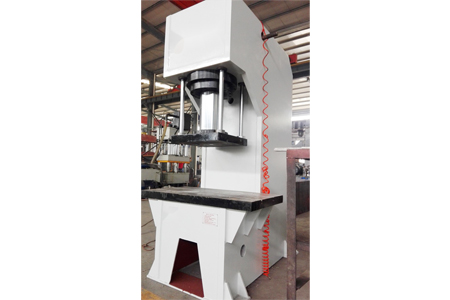

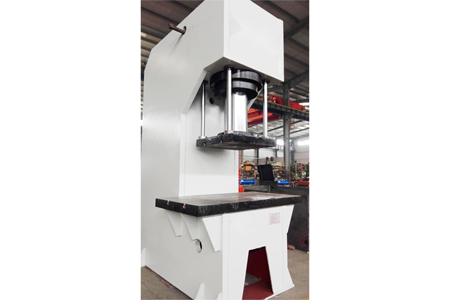

HP41 Single Column Hydraulic Press

Introduction:
The HP41 series is applicable to the pressing process of metal materials, such as bending, flanging, extrusion, forming, as well as correction, pressing and so on. At the same time, it can be used in the pressing process of plastic materials, such as stamping, bending, flanging and thin stretching, etc. It can also be used for correction, pressing, pressing and molding of plastic products and powder products. It is mainly suitable for the correction of shaft parts and profiles and the press-fitting of shaft sleeve parts, the bending, embossing and sleeve shape of plate parts, the stretching plastic products of simple parts, machine tools, internal combustion engines, light textile machinery, shafts, bearings, washing machines, automobile motors, air-conditioning motors, electrical appliances, assembly lines of military enterprises and foreign-funded enterprises and other industries.

1. The body adopts a C-shaped structure, which is similar to a traditional mechanical punching machine. It has a simple and compact structure, a small footprint, and is easy to operate.
2. The main cylinder of the hydraulic machine is a piston cylinder with a fast cylinder inside, which can realize fast downward and slow pressing action. Increase productivity.
3. The oil cylinder is placed on the top of the fuselage. When the oil cylinder is working, it is pressed from top to bottom, the lower mold is stationary, and the upper mold is pressed.
4. The electrical system adopts PLC+touch screen+proportional amplifier, cooperates with the proportional hydraulic system, and sends instructions according to the process requirements to complete the process cycle action of the machine.
5. The hydraulic system of precision bearing press-fit single-column hydraulic press is controlled by the integrated form of hydraulic integrated block and oil circuit to realize the cyclic action required by the process.

Features:
1. High-precision displacement sensor is used for detection, and the repeat positioning accuracy is high, up to ±0.02mm.
2. Compared with the traditional similar models, the energy saving can reach 30%.
3. The operation of precision bearing press single-column hydraulic press is more user-friendly, with a friendly man-machine interface, and the pressure, position and speed can be set and adjusted arbitrarily on the computer screen.
4. Adopt closed-loop system control, high pressure accuracy.
5. In the fully automatic production mode, the production cycle of the traditional model can be shortened by about 20%.
6. The servo hydraulic system is used to control, which can meet the changing requirements of different processes for speed and pressure, and the movement is more stable.
7. The main hydraulic components adopt famous brand products to ensure the stability of hydraulic system performance.
8. PLC program control, touch screen parameter setting and monitoring, realize digital control.
