Round Bending Machine

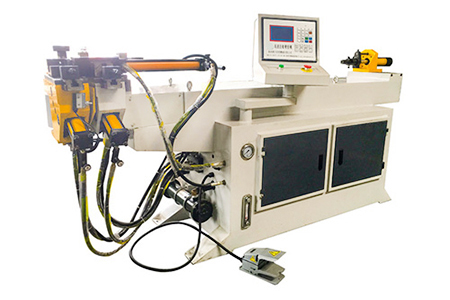

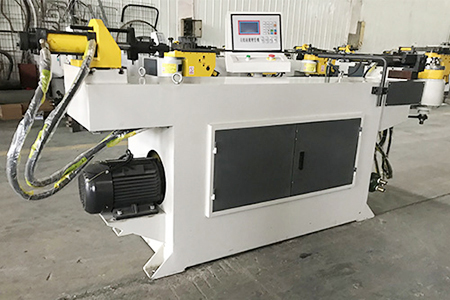

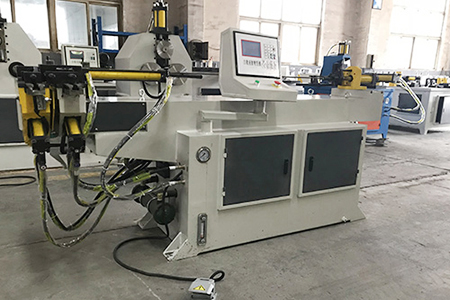

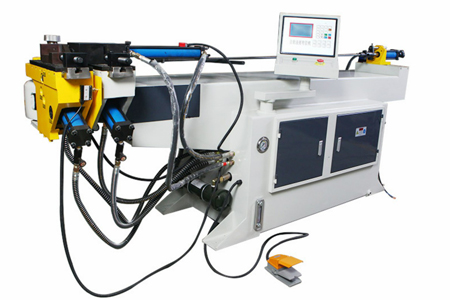

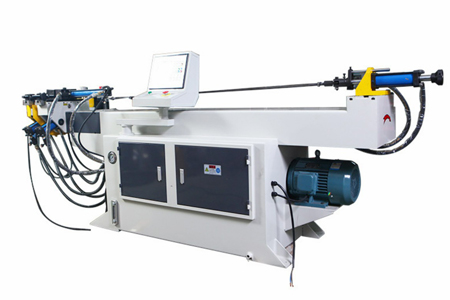

Single-Head Hydraulic Pipe Bending Machine DW38NC

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email :
(your request will be responsed within 1 hour.)

Technical Parameter :

Main specifications Unit DW38NC Remark
Max. bending diameter x Wall thickness mm Φ38×2 1. The minimum bending radius is based on the pipe diameter

2. The maximum bending radius can be determined according to customer requirements
3. The maximum length of core penetration can be according to customer requirements

Max. bending radius. mm R200
Mini. bending radius. mm R≥1.5D
Max. bending Angle. Degree 190
Standard core length. mm 1600
Control system / Microcomputer control
Number of elbow allowed for pipe fitting Unit 16
Number of parts that can be stored Unit 16×16
Oil motor power KW 4
Max system pressure Mpa 12
Hydraulic system control Solenoid valve
Tank volume L 110
Machine dimensions mm 2500×750×1250
Machine weight Kg 600


1.High speed single head hydraulic pipe bending machineuse microcomputer control, multi-group program, multi-angle setting, so that the operation is simple and convenient.

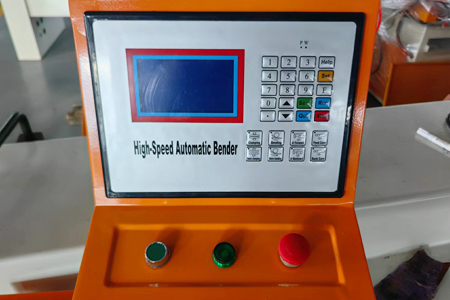

2.Chinese subtitles display, man-machine dialogue operation, you can choose manual, half cycle, full cycle operation mode.

3.Adopt high-performance imported hydraulic valves and electrical components.

4.Equipped with large capacity cooling system, effectively control the working temperature.

5.The machine has the characteristics of easy operation, stable performance, high efficiency, high safety factor,whichis the ideal equipment for pipe fitting processing industry.

6.You can choose manualor semi-automatic operation mode. The movable foot switch has two functions: start and stop.

Main Parts for the machine

Specifications Supplier
Machine frame China
Major electrical appliance Taiwan TAIAN
Hydraulic valve Taiwan 7OCEAN
Overflow valve Taiwan 7OCEAN
Electric motor China
High pressure tubing China
Oil pump China
Emergency stop switch China
Switching power supply Taiwan MEAN WELL
Bearings China
The mold China

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
