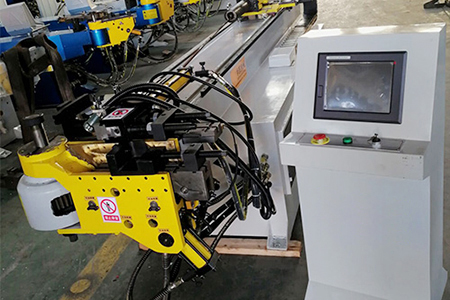

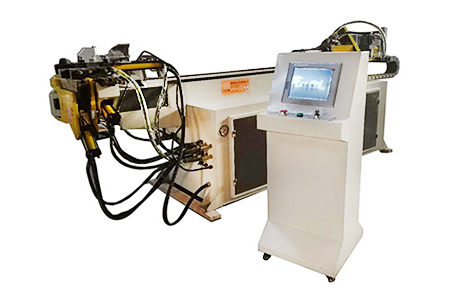

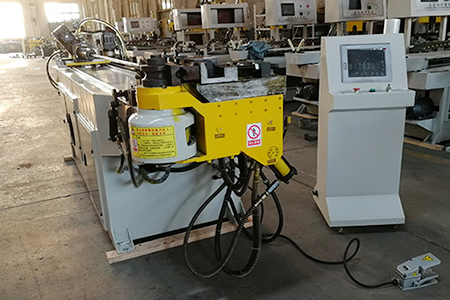

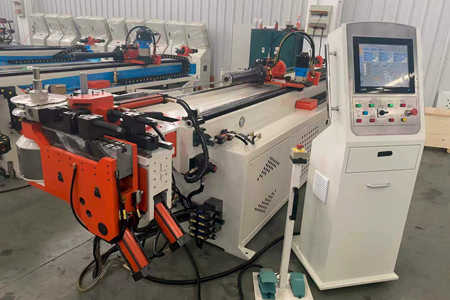

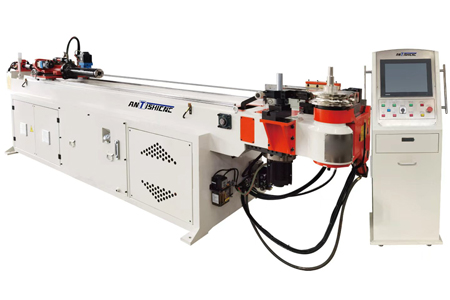

Technical Parameter :
|Maximum bending pipe diameter ×Wall thickness||Φ50mm×3mm||1. The minimum bending radius is based on the diameter of the pipe.
2. Maximum bending radius can be according to customer requirements.
3. The maximum core length can be according to customer requirements.
|Carbon steel pipe|
|Maximum bending radius||R250mm|
|Minimum bending radius||R≧1.5D|
|Maximum bending Angle||190°|
|Maximum feeding length||2200mm|
|Feeding method||Direct delivery|
|Working speed||Bending speed||Max 85°/s|
|Tubing speed||Max 200°/s|
|Feeding speed||Max 1000mm/s|
|Working accuracy||Bending accuracy||±0.1°|
|Information input mode||1. coordinate(X . Y. Z)|
|2. Working value(Y. B. C)|
|Bend way||Hydraulic bending|
|Corner servo motor||750w|
|Feed servo motor||1000w|
|Pipe fittings allow elbows||50|
|Number of parts that can be stored||500|
|Oil motor power||5.5kw|
|Maximum system pressure||12 Mpa|
1.A touch screen display, CNC computer operation, can store 500 sets of memory.
2.Rebound compensation value setting procedures, procedures and processing data security functions.
3.Corner, feeding, bending are servo controlled.
4.The operating system is equipped with password, key, and quantity and time record for production management.
5.It has the function of slow bending and slow core pulling.
6.Error messages are displayed on the screen to help the operator clear them immediately.

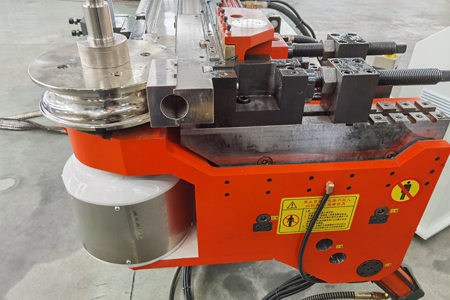

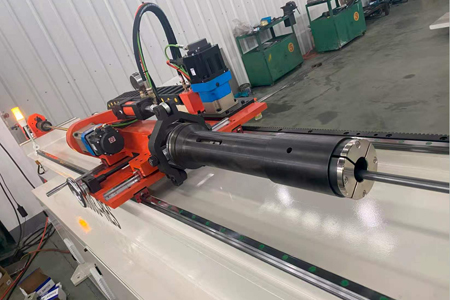

Main Parts for the machine
|The oil pump||PVL1-19||China|
|Pressure valve||02W||Taiwan’s seven ocean|
|Solenoid valve||G02-2C-DC24||Taiwan’s seven ocean|
|The overflow valve||2B3B-D24||Taiwan’s seven ocean|
|Sealing ring||/||Taiwan CHO|
|AC contactor||LCED1801||Taiwan TAIAN|
|touch screen||10 inch||China|
|Switching power||24V||Taiwan MEAN WELL|
|Corner servo motor||750W||Japan MITSUBISHI|
|Feed servo motor||1000W||Japan MITSUBISHI|
|Central controller||/||China/Japan MITSUBISHI|
|thermal relay||LR-16B||Taiwan TAIAN|
Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
