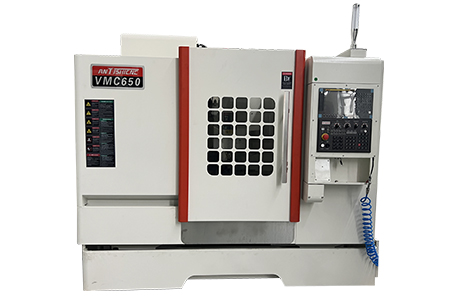

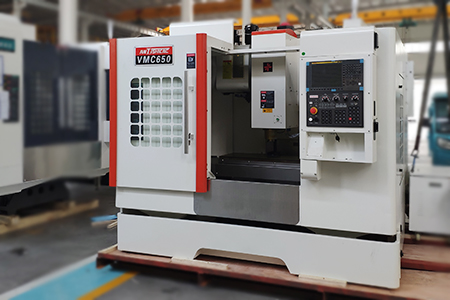

VMC650 vertical machining center
Table Size(L*W) : 800x500mm
Max Loading Weight : 400kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Parameters / Model | Unit | VMC650 |
| Table Size(length*width) | mm | 800×500 |
| Max Loading Weight | kg | 400 |
| Number-width x distance | mm | 5-18×90 |
| XYIZ Travel | mm | 650/500/500 |
| Max .Distance From spindle nose to Table Surface | mm | 120-620 |
| Spindle center to Z axis guide surface | mm | 550 |
| Spindle motor power | kW | 7.5/11 |
| Max. Spindle Speed | rpm | 10000 |
| Spindle Taper | BT40 | |
| 3 axis rapid speed | m/min | 48/48/48 |
| Max cutting speed | m/min | 10 |
| Pull stud | MAS403 BT40-45° | |
| ATC capacity | BT40-24T | |
| Max. Diameter of to’length | mm | Φ85×350 |
| Positioning Accuracy | mm | ±0.004 |
| Repeatability Accuracy | mm | ±0.003 |
| CNC system | FANUC/SIEMENS/MITSUBISHI | |
| Machine Size (L”W*H) | mm | 2100x2600x2650 |
| Machine Weight | Kg | 4900 |
Product Features:
The machine tool adopts a new generation of vertical machining center with high precision, high speed and high rigidity developed by 3D computer-aided design and finite element analysis. The guide rail adopts three-line rail (or two-line one-hard) guide rails, and the maximum rapid speed can reach 48m / min, spindle speed 6000 to 15000 rpm optional positioning accuracy <4μm, repeated positioning <3μm; suitable for various mechanical processing fields such as mold, military industry, hardware, auto parts and so on.
Product Description :
VMC series vertical machining center inherits the advantages of strong rigidity, symmetrical struc-ture and strong stability of the foundation frame of the traditional vertical CNC milling machine,introduces the international advanced dynamic rigidity design concept, and optimizes the design of the moving parts.
STANDARD AND OPTIONAL ACCESSORIES
| Number | Standard configuration | Number | Special configuration |
| 1 | The back row chip full cover sheet metal without the chip | 1 | Front row chip full cover sheet metal belt chip remover |
| 2 | Drawer type water tank and chip box | 2 | Central outlet function of spindle |
| 3 | Backward impact chip washing device | 3 | 3 axis linear scale |

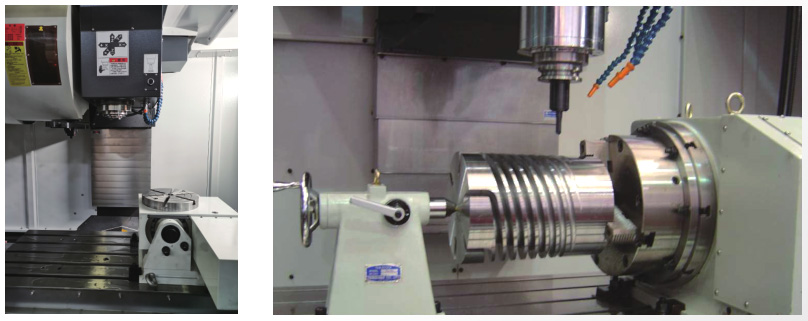

| 4 | Full-function operation panel and handwheel | 4 | Function of the fourth axis |
| 5 | ATC | 5 | Spindle oil cooling function |
| 6 | Belt drive spindle | 6 | Straight connection drive spindle |
| 7 | Sprinkler cooling system at the spindle side | 7 | Oil-water separation device |
| 8 | Air cooling system at spindle side | 8 | Workpiece and tool measuring device |

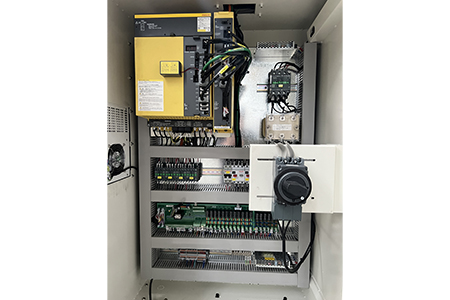

| 9 | Heat exchange device of electric cabinet | 9 | Door open switch |
| 10 | Work area cleaning water gun, air gun | 10 | High speed and high precision functions |
| 11 | Working light and alarm light | 11 | Column elevation (bridge type or height block) |
