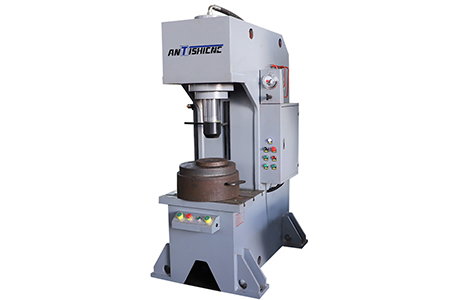

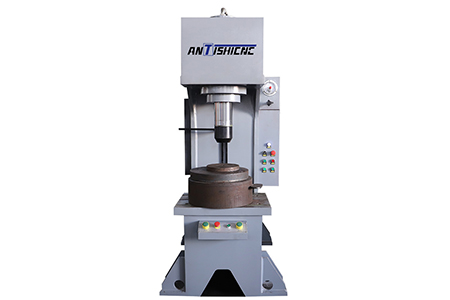

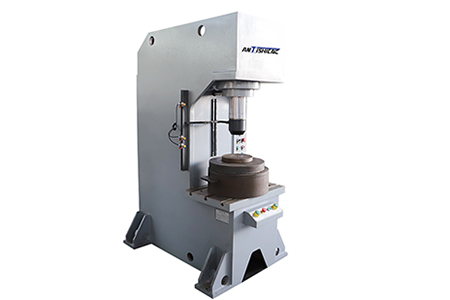

YQ41-100T (With Press head) Single-column Hydraulic Press Machine

YQ41-100T (With Press head) Single-column Hydraulic Press Machine Product Introduction :

Machine Introduction

100 tons of single-column hydraulic press machine, also known as single-column hydraulic press machine, the body of the C-type or bow-shaped, the use of all-steel CO2 welded, welded by tempering and aging treatment, to ensure that the body is not deformed. Hydraulic system is located in the body, beautiful appearance, easy to operate, can widen the working range, the use of three-sided space to lengthen the stroke of the hydraulic cylinder (optional), the machine’s working pressure, pressing speed and slider stroke can be adjusted according to the needs of the process, and can be completed with ejector process, without ejector process, tensile process of three kinds of process, each process and for the fixed-pressure, fixed-course two kinds of process action for selection, fixed-pressure molding After pressing, the process has pressure preservation, time delay and automatic return. This series of single-column hydraulic press machine is mainly applicable to the press fitting of shaft parts, bending of plate parts, imprinting, nesting, stretching of simple parts, and press molding of plastic products. Machine tools, internal combustion engines, light textile machinery, shafts, bearings, washing machines, automobile motors, air conditioning motors, military enterprises, electrical appliances, and three-funded enterprises assembly line and other industries use.

Operation mode

1.The press is equipped with semi-automatic and automatic operation mode.
2.The stroke of the slider of the hydraulic press machine is adjusted by the stroke control device.
3.In addition to the buttons on the operating table to complete all the actions of the press, there should be “two-handed pressing”, “return”, “stop”, “emergency stop “stop”, ‘emergency stop’ and other buttons.

Safety protection devices

1.Set the emergency stop button, press the emergency stop button, the press stops immediately.
2.The slider is equipped with limit switches at the upper and lower limits.
3.In the lower chamber of the piston cylinder, set up hydraulic support insurance circuit
