AC servo slow wire cutting machine
X, Y, Z axis travel :
400X300X260 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Project | Unit | CK400F | CK400S | CK400L |
| X, Y, Z axis travel | mm | 400X300X260 | ||
| U, V axis travel | mm | 80X80 | ||
| Maximum workpiece size [WxDxH] | mm | 960X690X255 | ||
| Workpiece weight | kg | 500 | 400 | |
| X,Y feed speed | mm/min | Max.800 | Max.1800 | |
| Motor system | ais | X·Y·U·V·Z axis AC servo motor | X·Y axis linear motor/U·V·Z axis AC servo motor | |
| Wire diameter (standard) | mm | ∅0.15-0.3(0.25) | ||
| Thread tension | gf | 300-2500 | ||
| Maximum cutting slope (°)/workpiece thickness | – | ±17.8°/80mm(wide angle nozzle,DA+DB=15mm) | ||
| Mechanical net weight (with water system) | kg | 3200 | 3650 | |
| Processing fluid power system device | ||||
| Filtration capacity | L | 340 | 809 | |
| Filter method | – | Paper Net | ||
| Water quality control | – | Auto | ||
| Liquid temperature control | – | Auto | ||
| Processing power | ||||
| Loop mode | – | Power MOS Transistor | ||
| Maximum output current | – | 25 | ||
| Set unit | A | 0.001 | ||
| Maximum command value | mm | ±9999.999 | ||
| Dimensions [WxDxH] | mm | 2332X2145X2108 | 2431X2285X2108 | |
| Maximum Power Consumption | mm | 3-phase 220V±5%/11KVA | ||

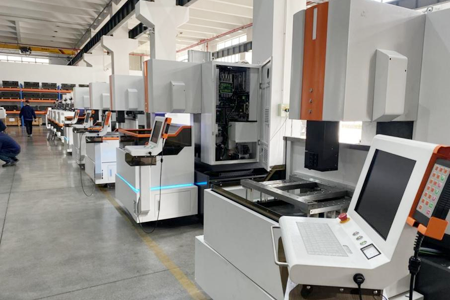

Equipment Introductions

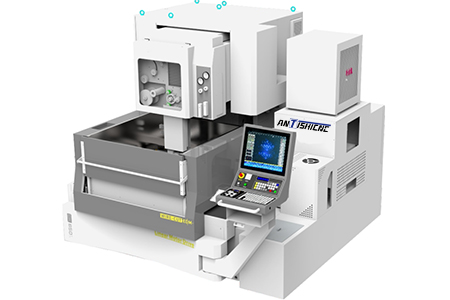

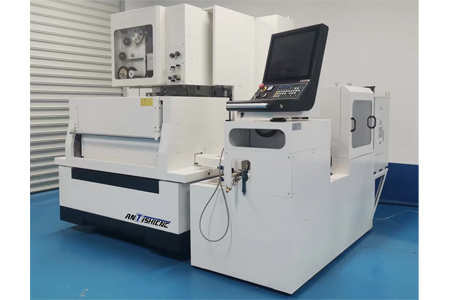

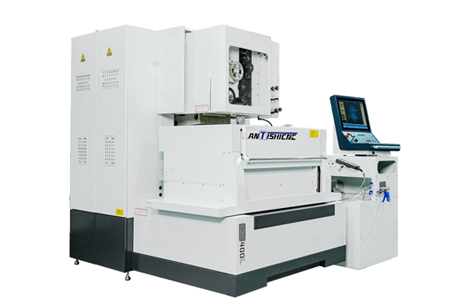

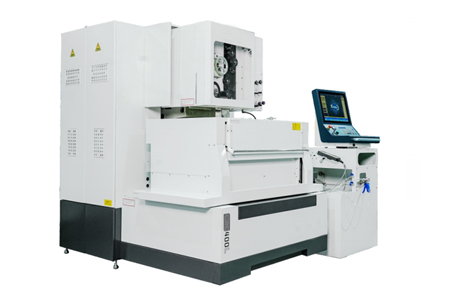

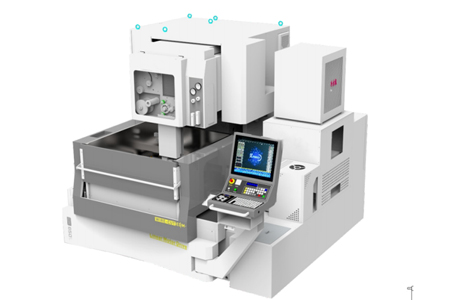

Shanghai ANTISHICNC “CK” series integrated wire-cutting machine tool is a Submersible Linear Motor slow-feeding wire-cutting machine with X /Y /Z/U/V travel with 400*300*260*80*80mm
high-precision multi-axis CNC medium-feeding wire cutting machine tool, with high reliability and high processing stability. The machine tool adopts the “mechanical and electrical integration” design as a whole, and has many highlights such as a smaller footprint.
Standard processing accuracy: dimensional accuracy≤5μm Ra≤0.58 μm (processing conditions are as follows)
1) Cutting times: 3 times;
2) Workpiece thickness: 50mm;
3) Copper wire: 0.2mm;
4) Material: SKD11
5) Cutting shape: (10*10mm) octagonal;
6) Water temperature, room temperature: 25℃±2℃
| NO. | ITEM Description | QTY | NO. | ITEM Description | QTY |
| 1 | Ion exchange resin | 10 L | 18 | Socket head bolts with round head 90 | 4 |
| 2 | paper net | 2 | 19 | Round head hexagon socket bolt 80 | 4 |
| 3 | Diamond eye mask take and pay jig | 1 | 20 | Socket head bolts with round head 70 | 4 |
| 4 | Diamond Eye Mask (0.26mm) | 2 | 21 | Socket head bolts with round head 50 | 4 |
| 5 | Copper wire (0.25mm) | 1 roll | 22 | Socket head cap bolts 40 | 4 |
| 6 | Giving electrons (polishing) | 2 | 23 | Socket head bolts with round head 30 | 4 |
| 7 | Water nozzle | 6 | 24 | Socket head bolts with round head 20 | 4 |
| 8 | Spring | 1 | 25 | Filter | 1 |
| 9 | Vertical Corrector (Discharge Block) | 1 | 26 | 19 inch TFT LCD monitor | 1 |
| 10 | work fixture | 2+2 | 27 | DC traditional power supply | 1 |
| 11 | LCD wire control box | 1 | 28 | AC non-electrolytic power supply | 1 |
| 12 | OV power supply | 1 | 29 | Freezer | 1 |
| 13 | Socket head bolts with round head 110 | 4 | 30 | Stabilized transformer | 1 |
| 14 | Round head hexagon socket bolt 100 | 4 | 31 | ANTISHICNC dedicated U disk | 2 |
