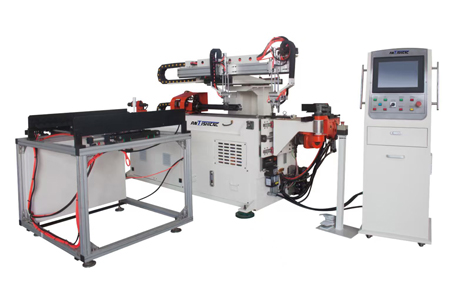

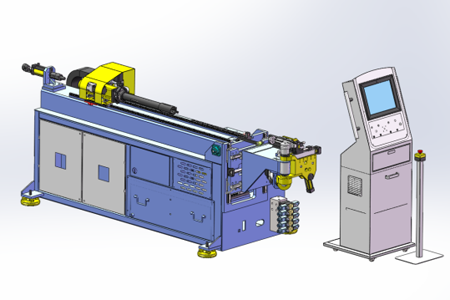

Automatic Feeding CNC Pipe Bending Machine CNC18RDE
Max. pipe specification : Φ18×1.6 mm
Max. bending radius : R100 mm
Bending angle range : 0 ~ 190°
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Main Technical Parameters
| Category | Parameter | Specification |
|---|---|---|
| Processing Capacity (for 20# carbon steel) | Max. pipe specification (carbon steel) | Φ18×1.6 mm |
| Max. pipe specification (stainless steel) | Φ16×1.5 mm | |
| Max. pipe specification (copper/aluminum) | Φ20×2.0 mm | |
| Min. bending radius | R10 mm (1D) | |
| Max. bending radius | R100 mm | |
| Bending angle range | 0 ~ 190° | |
| Max. bends per single pipe | 50 pcs | |
| Standard max. feeding length | 1500 mm (customizable up to 2000 mm) | |
| Axis Configuration (5-axis full servo) | Y-axis (Feeding) | Servo driven, positioning accuracy ±0.01 mm, max. speed 1200 mm/s |
| B-axis (Pipe rotation) | Servo driven, positioning accuracy ±0.01°, max. speed 180°/s | |
| C-axis (Bending) | Servo driven, positioning accuracy ±0.01°, max. speed 180°/s | |
| Z-axis (Mandrel retraction/extension) | Electric servo mandrel system | |
| X-axis (Automatic feeding arm) | Servo-controlled robotic feeding unit | |
| Automatic Feeding System | Feeding mode | Servo robotic arm + material rack |
| Applicable pipe length | 300 ~ 1500 mm | |
| Feeding cycle | ≤4 seconds per piece | |
| Positioning accuracy | ±0.1 mm | |
| Material rack capacity | 50 ~ 200 pieces (subject to pipe diameter) | |
| Optional functions | Pipe length detection, material shortage alarm, anti-overlapping feeding | |
| Control System | Controller | Mitsubishi PLC + industrial touch screen |
| CNC system | Dedicated system, supports X/Y/B/C/Z axes linkage | |
| Input mode | Coordinate value (X/Y/Z) or process value (Y/B/C) | |
| Program storage | 500 sets of product programs | |
| Standard functions | Springback compensation, angle correction, multi-language support, fault self-diagnosis, production counting | |
| Power & Electrical Specifications | Driving type | Full servo motor (hydraulic-free) |
| Total power | Approx. 7.5 kW | |
| Power supply | 380V / 50Hz / 3-phase | |
| Working ambient temperature | 0 ~ 45℃ | |
| Operating noise | ≤65 dB | |
| Overall Dimension & Weight | Overall dimension (L×W×H) | 3200×1100×1600 mm |
| Machine weight | Approx. 1800 kg |
Resources & Downloads:
Automatic Feeding CNC Pipe Bending Machine CNC18RDE Product Introduction :

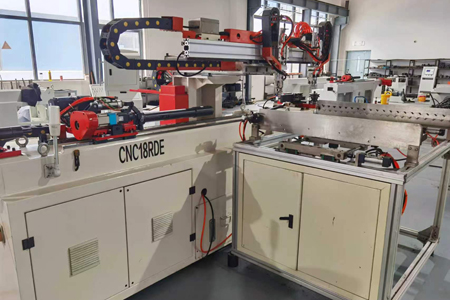

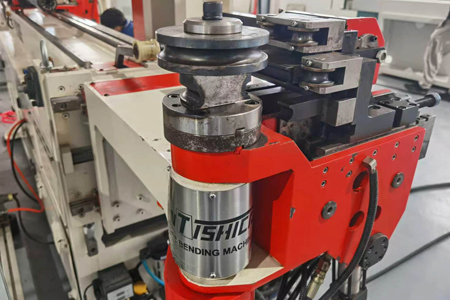

The CNC18RDE is a 5-axis full-electric servo pipe bender equipped with robotic automatic feeding and unloading systems. It is specially developed for high-volume production of small-diameter pipes with multiple bends and strict precision requirements.
Adopting a hydraulic-free full-servo design, the machine features zero oil leakage, stable performance free from oil temperature interference, low noise and easy maintenance. It is widely applied to process automotive air conditioning pipes, fuel pipes, heat dissipation pipes, sanitary pipes, medical pipeline components and other tubular workpieces.
Model Definition
CNC18: Maximum pipe bending diameter Φ18 mm
R: Pipe rotation (servo rotary axis)
D: Direct electric drive (full servo system, no hydraulic unit)
E: Automatic feeding (robotic feeding mechanism)
Optional Configurations
1. Extended material rack (max. length up to 2000 mm)
2. Automatic inspection unit (length detection & defective bend detection)
3. Servo unloading conveyor
4. Safety light curtain & full protective enclosure
5. Multi-language system (English, Spanish, Russian, Arabic, etc.)
6. Remote diagnosis and network connection function
