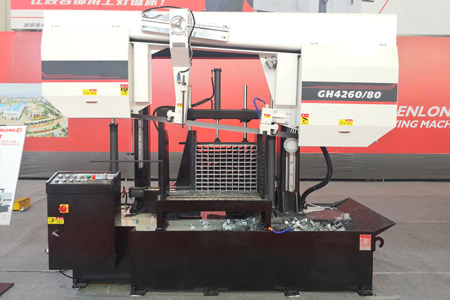

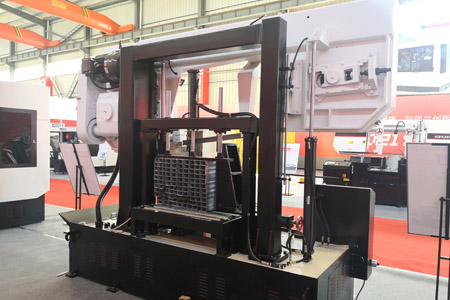

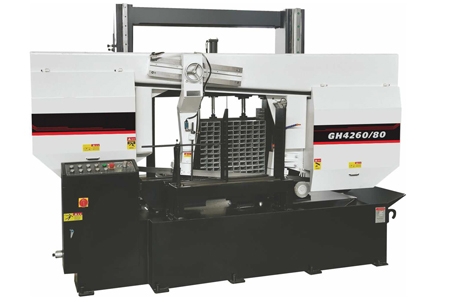

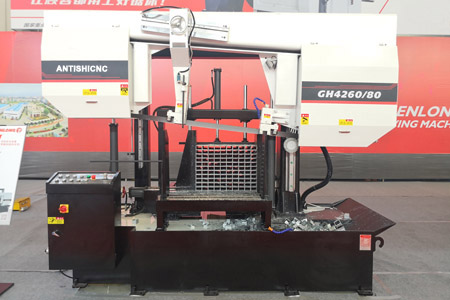

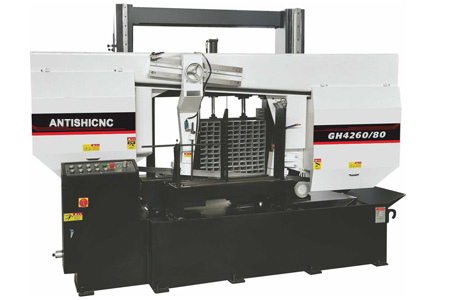

    • Automatic Horizontal Band Saw For Profile GH4260/80

    Warranty : 1 Year for machinery warranty

    Availability : On Stock

    WhatsApp : +86-19534031668
    Wechat : +86-19534031668
    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

    Maximum sawing range Round 600mm
    Quadrate 600×800mm    		 main motor power 11kW
    Band saw blade specifications 54×1.6×7200 mm Hydraulic motor power 0.75kW
    Band saw blade cutting speed 40/61/91 m/min Cooling pump power 120W
    Band saw blade feed speed Stepless speed regulation Saw blade angle 7.3°
    Single feed length 500mm

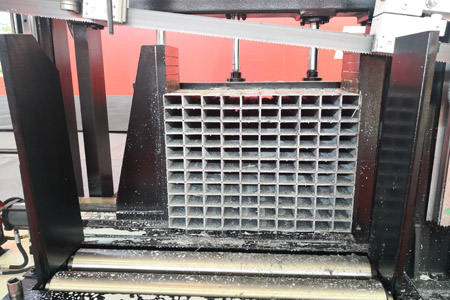

    *Extreme sawing: 400 × 400mm bundled square tube (wall thickness 3mm), sawing time: 5 minutes 8 seconds


    Product description:

    1.Special CNC sawing machine for bundled section sawing

    2. Main drive wheel structure

    3. Extra large saw blade angle is more suitable for profile cutting

    4. Gantry up pressure structure

    5. Automatic matching lower limit, no need to adjust the lower limit when cutting different widths

    6. The third jaw (optional) can realize tailing sawing without turning around.

    Standard Equipment:
    Blade cleaning brush.
    Working light
    One piece of bi-metal saw blade.
    One set of tools with tool box
    Roller table 1M long
    Top clamping device at back side

    Optional Equipment:
    Spiral Chip Conveyor
    Saw Belt Hydraulic Tensioning
    Inverter
    Laser projector
    2 meters detachable rack
    Press-up device (installed on a vice)
    Pressure reducing valve
