Technical Parameter :
|Maximum sawing range||Height: 500 mm
Width: 500 mm
|main motor power||5.5kW 4P|
|Band saw blade specifications||41×1.3x 5700 mm||Hydraulic motor power||0.75kW|
|Band saw blade cutting speed||40/55/70/90 m/min||Cooling pump power||120W|
|Band saw blade feed speed||Stepless speed regulation||Saw blade angle||7.3°|
|Single feed length||500mm|

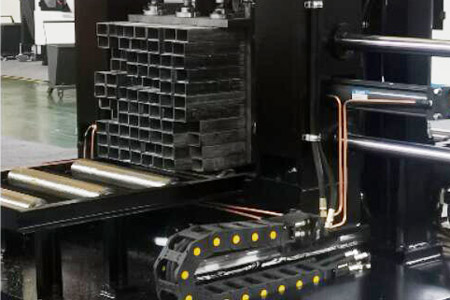

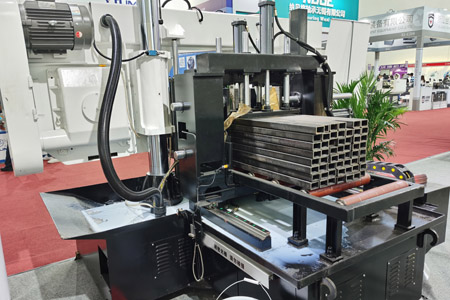

*Extreme sawing: 400 × 400mm bundled square tube (wall thickness 3mm), sawing time: 5 minutes 8 seconds

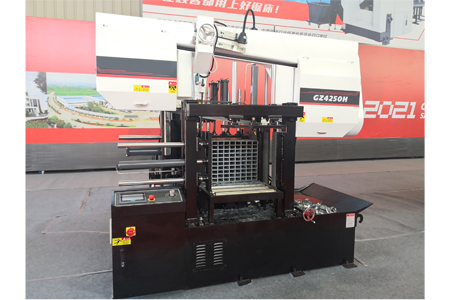

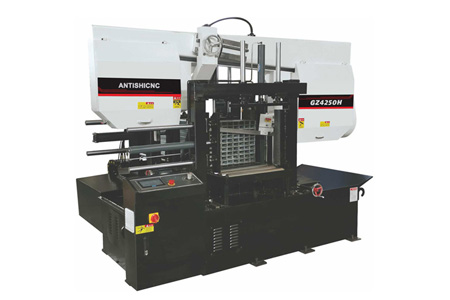

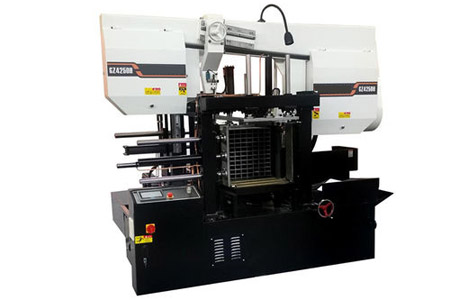

1.Special CNC sawing machine for bundled section sawing
2. Main drive wheel structure
3. Extra large saw blade angle is more suitable for profile cutting
4. Gantry up pressure structure
5. Automatic matching lower limit, no need to adjust the lower limit when cutting different widths
6. The third jaw (optional) can realize tailing sawing without turning around.
Blade cleaning brush.
One piece of bi-metal saw blade.
One set of tools with tool box
Roller table 1M long
Top clamping device at back side
Spiral Chip Conveyor
Saw Belt Hydraulic Tensioning
2 meters detachable rack
Press-up device (installed on a vice)
Pressure reducing valve
