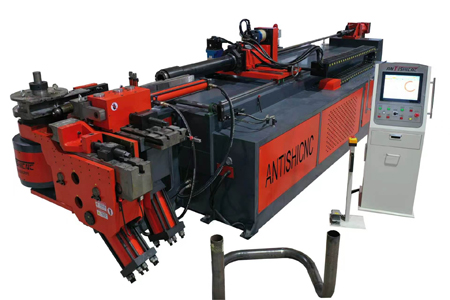

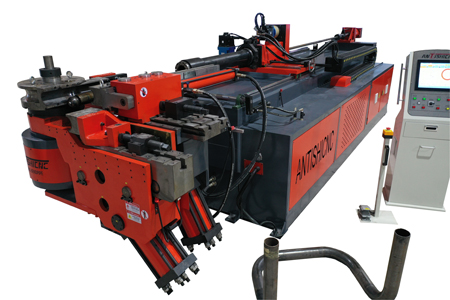

Automatic Pipe Bending Machine DW120CNC-2A-1S
Max. bending capacity : Φ120×5mm
Bending angle range : 0 ~ 190°
Max. feeding length : 4500mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Bending Capacity
| Parameter | Specification |
|---|---|
| Max. bending capacity | Carbon steel pipe Φ120×5mm (1.5D); Stainless steel pipe Φ100×5mm (1.5D) |
| Applicable materials | Carbon steel, stainless steel, copper, aluminum, alloy and other metal pipes |
| Bending angle range | 0 ~ 190° |
| Bending radius | R50 ~ R450mm; Min. bending radius ≥ 1.5D (D = pipe outer diameter) |
| Max. feeding length | 4500mm (extended length available on request) |
| Max. bends per workpiece | 33 pcs |
| Storable part programs | 330 sets |
Accuracy & Operating Speed
| Parameter | Specification |
|---|---|
| Bending angle accuracy | ±0.15° |
| Pipe rotation accuracy | ±0.1° |
| Feeding positioning accuracy | ±0.1mm |
| Max. bending speed | 30°/s |
| Max. pipe rotation speed | 160°/s |
| Max. feeding speed | 800mm/s |
Drive & Power System
| Parameter | Specification |
|---|---|
| Pipe bending drive | Hydraulic drive, main cylinder bore Φ140mm |
| Feeding axis (Y) | Servo drive, motor power 3.5kW (Mitsubishi) |
| Pipe rotation axis (B) | Servo drive, motor power 2.0kW (Mitsubishi) |
| Hydraulic motor power | 22kW |
| Max. system working pressure | 12MPa |
Control System
| Parameter | Specification |
|---|---|
| Controller | Mitsubishi PLC + touch screen (supports Chinese, English and multiple languages) |
| Input mode | Coordinate (X/Y/Z) & operating value (Y/B/C) |
| Controlled axes | 2 servo axes (Y/B) + hydraulic bending axis (C), namely 2A-1S |
| Core functions | Automatic spring back compensation, self-diagnosis of faults, program backup & recovery via USB flash drive |
| Operating modes | Manual, semi-automatic and fully automatic cycle |
| Parameter | Specification |
|---|---|
| Machine bed | Fabricated with thick steel plate welding and stress relief treatment, featuring high rigidity and excellent deformation resistance |
| Clamping type | Hydraulic triangular locking structure with three-point positioning to prevent pipe slippage |
| Die system | Quick-change die interface. Standard equipped with pressure die, anti-wrinkle die and mandrel |
| Overall dimension | 5090 × 1200 × 1500mm |
| Machine weight | Approx. 4500kg |
Resources & Downloads:

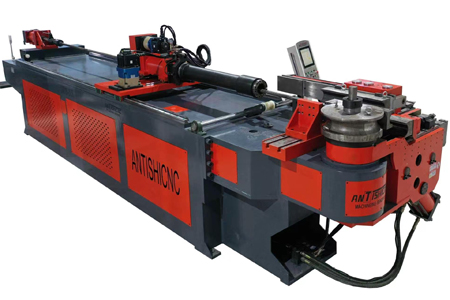

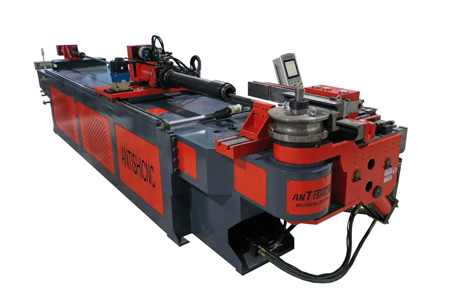

Automatic Pipe Bending Machine DW120CNC-2A-1S Product Introduction :
The DW120CNC-2A-1S is a fully automatic CNC pipe bending machine with 2-axis servo & hydraulic combined drive.
It is designed for large-diameter and thick-walled pipes, featuring high precision and 3D spatial bending capability, ideal for mass production of heavy-duty pipe work-pieces.
Application Fields
Widely used for bending processing of large-diameter and thick-walled pipes with high precision requirements, including construction machinery, shipbuilding, pressure vessels, automobile frames, mining machinery and other industries.
Standard Configuration
1. Machine Structure
Heavy-duty welded steel bed with stress relief treatment
Hydraulic triangular clamping system (3-point positioning, anti-slip)
Standard die set: clamp die, pressure die, anti-wrinkle die
Quick-change die interface
2. Drive System
Bending axis (C): Hydraulic drive, main cylinder Φ140 mm
Feeding axis (Y): Servo drive, 3.5 kW Mitsubishi motor
Rotation axis (B): Servo drive, 2.0 kW Mitsubishi motor
Hydraulic station: 22 kW motor, max pressure 12 MPa
Hydraulic components: Taiwan Kompass vane pump + solenoid valves
3. Control System
Mitsubishi PLC + 10” touch screen (CN/EN multi-language)
2 servo axes (Y/B) + 1 hydraulic axis (C) – 2A-1S
Input modes: XYZ coordinates / YBC working values
Built-in springback compensation
Storage: 330 part programs, 33 bends per part
Basic fault diagnosis & USB program backup/restore
4. Electrical & Safety
Main electrics: Schneider/Omron components
Emergency stop buttons, safety door interlocks
Cooling fan & hydraulic oil cooler
Optional Configuration
1. Tooling & Auxiliaries
Mandrel (core rod): For thin-wall pipe (≤3 mm) to prevent collapse
Automatic mandrel lubrication system
Roller support: For extra-long pipes (>3 m)
Special dies: Square/rectangular, oval, or multi-radius sets
2. Automation Upgrades
Auto loading/unloading system (for mass production)
Length measuring encoder (±0.05 mm precision)
3D scanning probe (on-line bend inspection)
Extended feeding length: 6000 mm (standard: 4500 mm)
3. Performance & Comfort
Higher precision package: ±0.1° bending accuracy
Servo bending (3A-1S): Replace hydraulic C-axis with servo
Oil mist collector (for stainless steel bending)
Remote monitoring module (IoT, real-time data)
4. Material & Application
High-temperature package: For alloy steel (≥600°C)
Stainless steel package: Anti-corrosion coating + special seals
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
