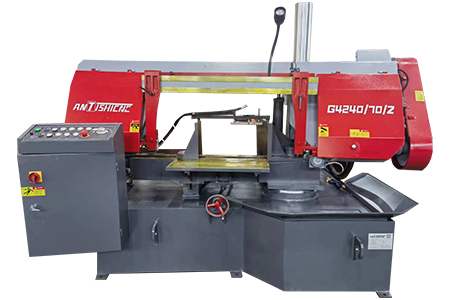

Horizontal Rotary Angel Metal Band Saw Machine G4240X70Z
Rectangular @90° : 400*700 mm
Rectangular @45° : 400*400 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical SPEC| Model | G4240X70Z | |
| 90° Circular cutting capacity | 400 mm | |
| 90° Rectangular cutting capacity | 400*700 mm | |
| 60° Circular cutting capacity | N/A | |
| 60° Rectangular cutting capacity | N/A | |
| 45° Circular cutting capacity | 400 mm | |
| 45° Rectangular cutting size | 400*400 mm | |
| Blade Speed m/min | 20/30/43/54/65 | |
| Blade size(mm) | 41×1.3×5500 mm | |
| Saw blade tension type | Manual | |
| Main motor power | 4 kw | |
| Feeding method | Manual | |
| Angle rotate driving type | Manual | |
| Machine weight | kg | 2500 kg |
| Overall dimension | mm | 2650x1800x1950 mm |
Product Details

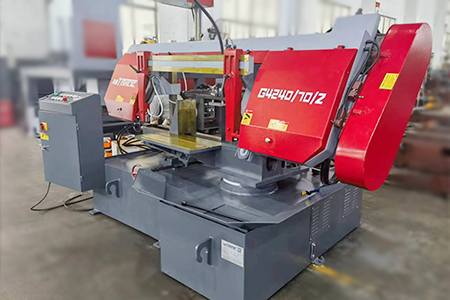

This saw machine is mainly used for angle sawing of profiles. The saw frame can rotate 0-45° around the rotation center under the drive of the screw rod.
The saw machine adopts a double-column structure to ensure the reliability, stability and advancement of the structure. The functions of each part have margins, and at the same time, it also ensures high-quality sawing accuracy.
Standard Equipment of the saw machine
Main Saw machine body

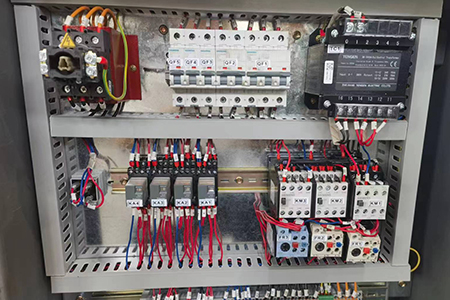

Hydraulic/Electrical control system
Clamping system
Saw blade tension system
Angle rotation device
Cooling/Sweeping system
Operator manual
Optional Parts and Optional Equipment
| NO. | Spare parts Description | Specification | Function |

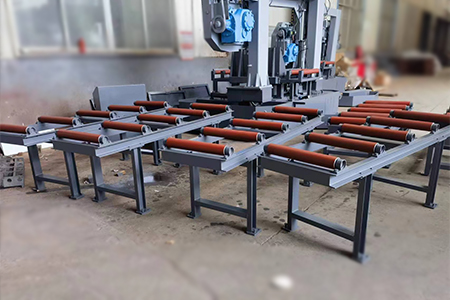

| 1 | detachable rack | 2 meter | Take the load of materials |
| 2 | Pressure reducing valve | Clamping force regulation at Hydraulic station | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
| 3 | Saw blades | 41×1.3×5500 mm | Consumable cutting parts |
| 4 | Hydraulic saw blade tension | Hydraulic Control | Hydraulic tension |
| 5 | Laser projector | G4240X70Z | Project a red line to the worktable for easy blade setting |
