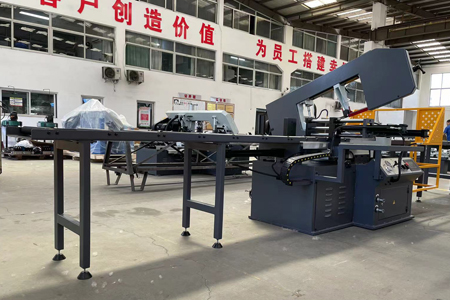

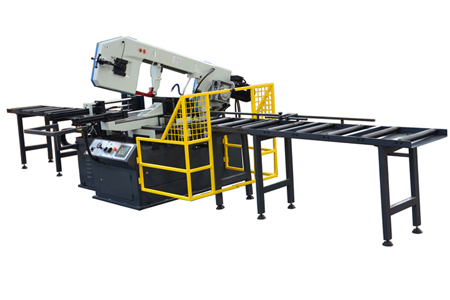

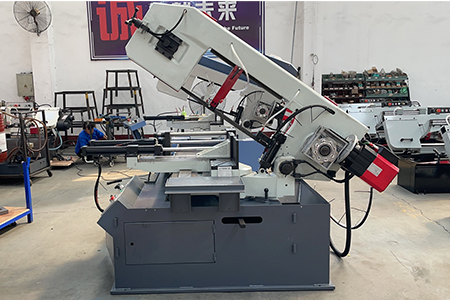

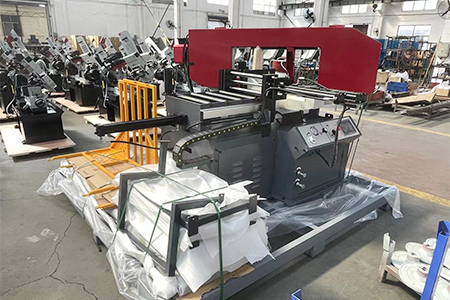

Horizontal Mitre Band Saw Machine BS-460GB
Rectangular @ 90° : 460x250mm
Rectangular @ 60° : 205x250mm
Rectangular @ 45° : 305x250mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Model | BS-460GB |
Circular @90° | 330mm(13”) |
Rectangular @90° | 460x250mm(18”x9.8”) |
Circular @60°(Right) | 205mm(8”) |
Rectangular @60°(Right) | 205x250mm(8”x9.8”) |
Circular @45°(Left & Right) | 305mm(12”) |
Rectangular @45°(Left & Right) | 305x250mm(12’x9.8”) |
Blade speed @50Hz | 40/80MPM |
Blade speed @60Hz | 48/96MPM |
Blade size | 27X0.9X3960mm |
Motor | 2.2kw(servo) |
Drive | Gear |
Packing size | 250x230x163cm |
N.W/G.W. | 1520/1655kg |
Features:
1. High-capacity band control by two-speed motor
2. Vertical rotation on bolt with adjustable tapered bearings without backlash
3. Band stretching is obtained by electro-mechanical blade tensioner with microswitch
4. It is the precise sawing machine features European design and large size.
5. It is European design band saw has the advantage of double speed selection.
6. It is characterized by manual/automatic operation mode.
7. The saw bow can rotate around.
8. The European design band saw has power break device (the machine will automatically power off when the rear protective cover is opened).
9. The falling speed of saw bow is controlled by hydraulic cylinder.
10. It is equipped with a block feeder (with fixed saw length).
11. The European design band saw has sizing device (the machine will automatically stop after sawing the materials).
12. The hydraulic system of the European design band saw automatically controls the up and down of saw bow and the tightness and looseness of the jaw.
13. The cooling system of the European design band saw can prolong the service life of saw blade and improve the precision of the workpiece.

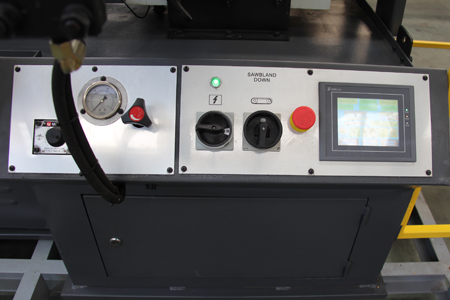

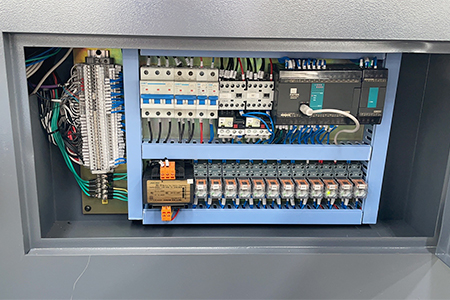

14. The European design band saw has an optional PLC system.
15. Automatic feeding and clamping
16. Metric and inch two kinds of feeding length can be selected

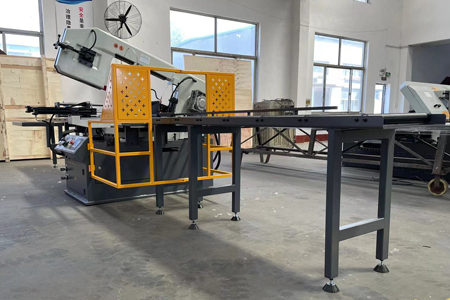

17. 3m length feeding and back platform
18. With manual defend net, can protect operator’s safety effectively
19. Effective width of feeder stand:460mm
20. Height of feeder stand:850mm
21.Max.feeding (single): 500mm

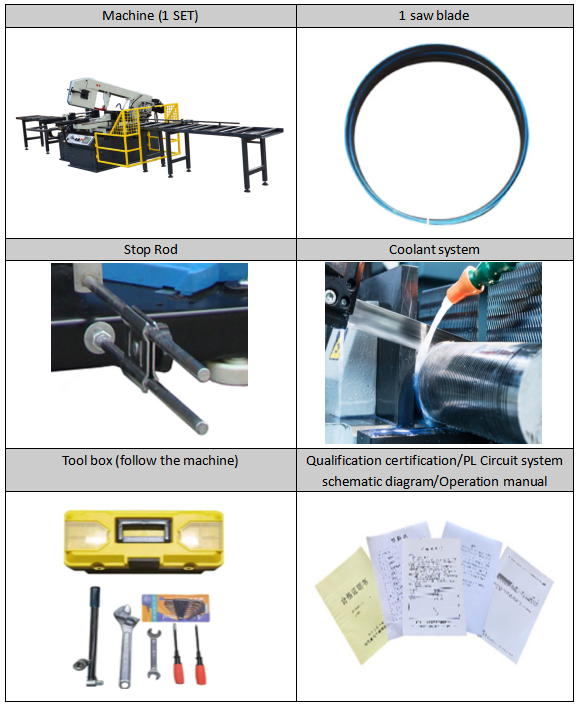

Standard Equipment
Optional Equipment
Servo motor with variable speed
