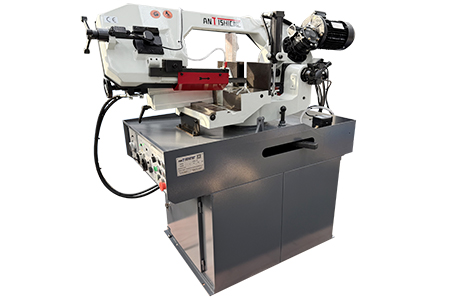

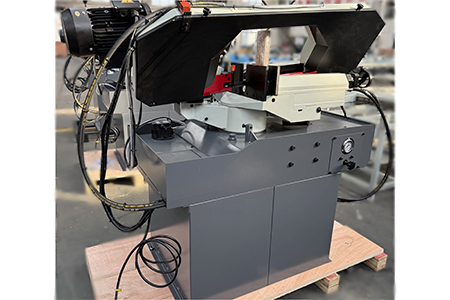

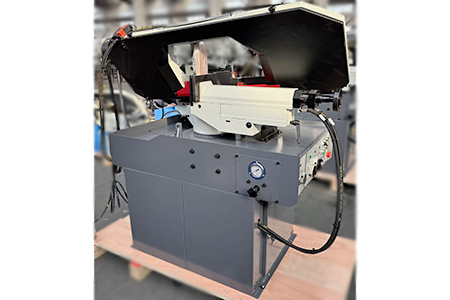

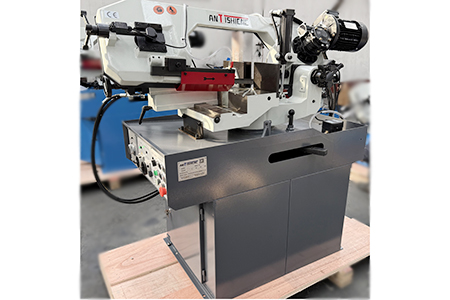

    • Horizontal Mitre Band Saw Machine BS-315GH

    Warranty : 1 Year for machinery warranty

    Availability : On Stock

    WhatsApp : +86-19534031668
    Wechat : +86-19534031668
    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

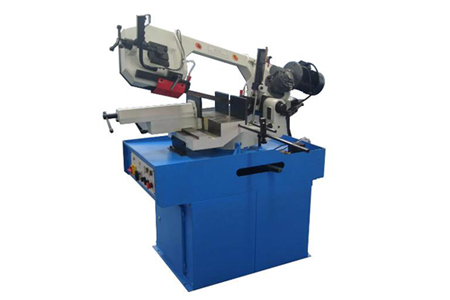

    Model BS-315G
    Cut Circular @90° 230mm(9”)
    Cut Rectangular @90° 315X170mm  (12.4”x6.7”)
    Cut Circular @60° 130mm (5″)
    Cut Rectangular @60° 130x130mm (5″x5″)
    Cut Circular @45° (left and right) 210mm(8.25”)
    Cut Rectangular @45° (left and right 210×170 mm (8.25”x6.7”)
    Blade speed @50Hz 40/80 MPM
    Blade Speed @60HZ 48/96 MPM
    Blade size 27X0.9X2450mm
    Motor power 0.75/1.1 kW

    1.0/1.5 HP (3PH)
    Drive Gear
    Packing size 163x87x97 cm (body)

    72x56x60 cm (stand)
    N.W./G.W. 350/400 kg

    Features:
    1. 9″cutting capacity at 90°
    2. Three phase double speed motor
    3. Gear drive, powerful cutting band saw machine
    4. Hydraulic descent
    5. Dual miter on both side, max. 60°
    6. Quick action lock/release lever for swivel head

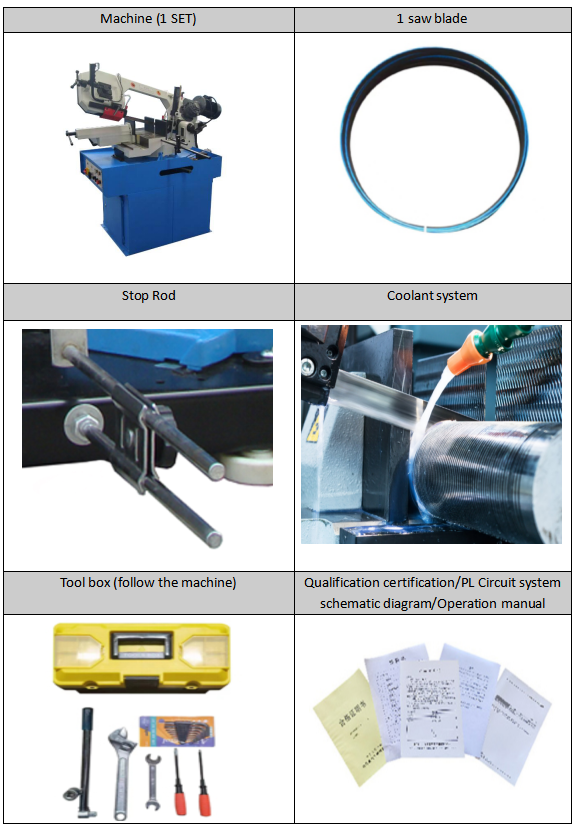

    Standard Equipment
