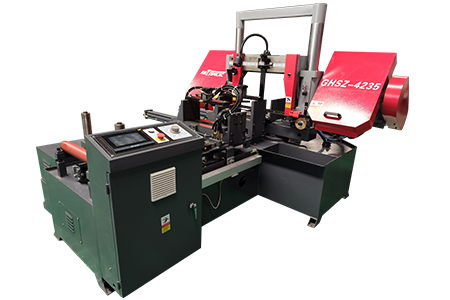

CNC Rotary Angle Horizontal Band Saw Cutting Machine GHSZ4235

Max. cutting : 350*350mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Technical Specifications| Model GHSZ4235
Max. cutting size(mm) 350*350 (45°:350*280)
Saw blade speed (m/min) 27/45/69
Saw blade specifications(mm) 4515*41*1.3
Feed rate CVT

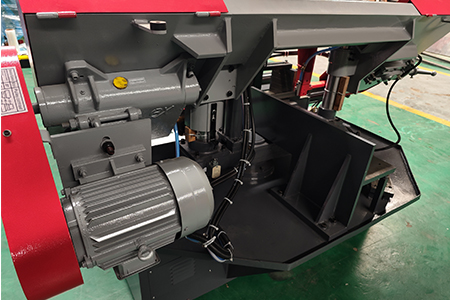

Main motor power 4.0kw
Hydraulic motor power 1.5kw
Water pump motor power 0.04kw

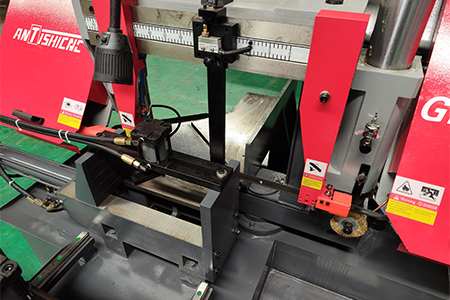

Clamping method (Vice) Fully automatic
Transfer method Turbine shaft
Package Size 2300*3000*1800(mm)
Weight 1.8T

Product Description

The GHS Series PLC Controlled Fully Automatic Metal Cutting Band Saw is a rugged, modern shop saw for precise cuts in medium diameters. All operating switches are clearly grouped on the touch screen and control panel. The machine is mainly characterized by fully automatic control. Using PLC touch screen panel, you can adjust the feed of the saw frame, steplessly adjust the speed of the saw blade, and hydraulically process the workpiece. The powerful automatic feed does not require any electronics or programming and still provides high repeatability and dimensional accuracy.

The GHS Series Band Saws are designed for straight-line cutting of large workpieces made of steel, cast iron and other metals with a rigid double post frame for stability.

Standard Equipment
1. Sawing machine
2. Saw blade *1
3. Clamping of hydraulic parts
4. Cooling system
5. Work lights

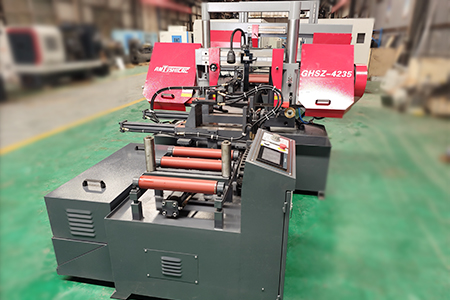

6. Material rack
7. Operating tools
8. Operation Manual

Optional Parts &Optional Equipment
1. Inverter
2. Electric chip removal
3. Power failure protection
4. Saw band hydraulic tensioning
5. Non-electric feeding frame 2 meters
6. Electric feeding frame 2 meters
7.PLC (Japan Omron & Schneider Electric)
