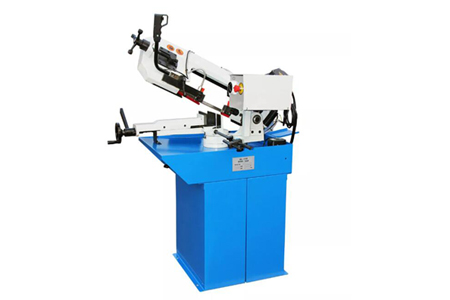

Horizontal Mitre Band Saw Machine BS-215G
Rectangular @90° : 200x120mm
Rectangular @45° : 130x90mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | BS-215G |
| Cut Circular @90° | 150mm(6”) |
| Cut Rectangular @90° | 200x120mm (7.8”x4.7”) |
| Cut Circular @45° | 120mm(4.7”) |
| Cut Rectangular @45° | 130x90mm (5”x3.5”) |
| Blade speed @50Hz | 40/80 MPM |
| Blade size | 20X0.9X2060mm |
| Motor power | 0.6/0.85kW 0.8/1.1HP (3PH) |
| Drive | Gear |
| Packing size | 116x71x79 cm (body)
61x39x67 cm (stand) |
| N.W./G.W. | 212/245 kg |
Horizontal Mitre Band Saw Machine BS-215G Product Introduction :
Features:
1. CE standard bandsaw, max cutting 6” at 90°
2. Cast iron saw frame miter max 45°
3. Quick action lock/release lever for swivel head
4. Coolant system to help clean chips on blade and lubrication the teeth
5. Electronic trigger handle lets you easily turn the saw on and off. Also for manual descent
6. Control panel mounted for easy access

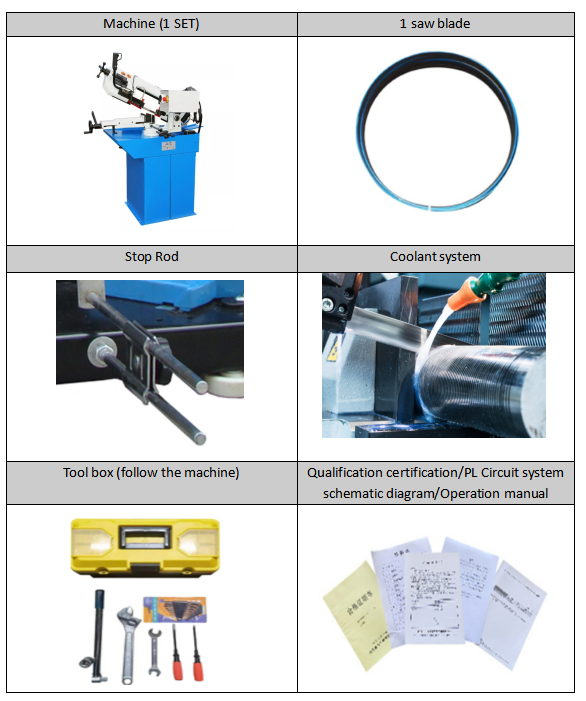

Standard Equipment
