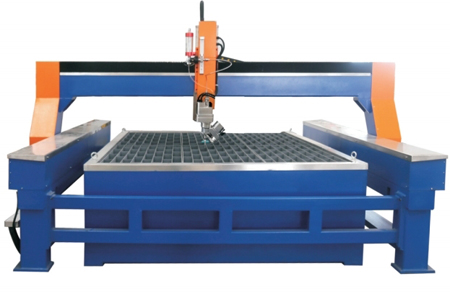

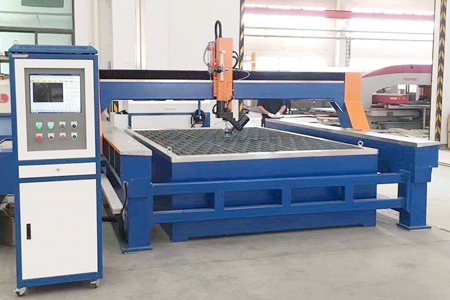

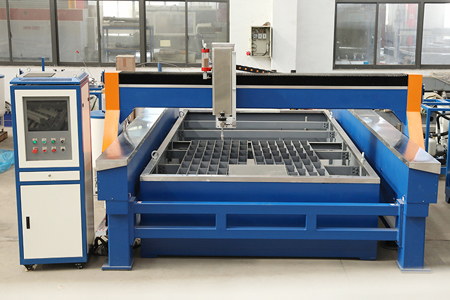

    • CNC waterjet cutting machine (Split gantry type)

    X, Y, Z axis travel :

    2000*6000*150 mm

    No installation required

    Simple operation

    Support video teaching

    1 Year for machinery warranty

    On Stock

    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

    Paramelers Unit AT- 2030 AT -2040 AT-2540 AT-2060
    Efficient Cutting area mm 2000*3000 2000*4000 2500*4000 2000*6000
    Axis travel X：mm 2000 2000 2500 2000
    Y：mm 3000 4000 4000 6000
    Z：mm 150 150 150 150
    Cutting accuracy mm ±0.1 ±0.1 ±0.1 ±0.1
    Positioning accuracy mm ±0.025 ±0.025 ±0.025 ±0.025
    X,Y dry-run speed M/min 0-15 (if 0-30m speed is required, it can be customized)
    Cutting speed M/min Depending on the specific material and thickness

    Main features:
    1.Y-direction dual support, bidirectional ball screw, linear guide transmission, ensuring the running speed and accuracy of the cutting head.
    2.Unique automatic lubrication system, using high-quality drag chains and dedicated mobile cables, durable and durable.
    3.Both the X and Y axes use high-precision ball screws, gear racks, and linear rolling guides.
    4.The machine bed and water tank are detachable, designed to reduce the pressure of sand and machined parts on the moving parts, while also facilitating transportation.

    ANTISHICNC Waterjet Cutting Machine Main Parts Introduction(Selected)
    Main Motor
    (SIEMENS BEIDE)    		 OIL Pump
    (Heng Yuan)    		 CNC SYSTEM
    (WEIHONG)    		 Server Driver
    (WISE/PANASONIC)
    Pressure Booster Unit
    (ANTISHICNC)    		 PLC SYSTEM
    (SIEMENS)    		 Industrial PC
    (NC-65C）    		 Heavy duty Machine body
    (ANTISHICNC)

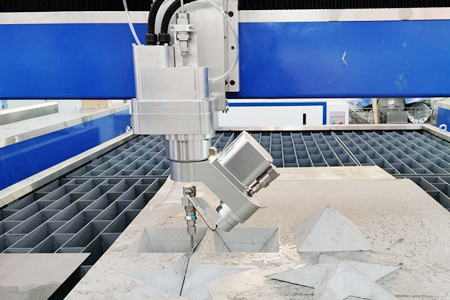

    AC Fix-Axis Cutting head Industrial Chiller(Customer Define) Transmission Unit
    (ABBA/TBI/HIWIN)     		 Standard export wooden
    (ANTISHICNC)
