Technical Parameter :
|Technical Specifications| Model||CH-1000|
|Cutting capacity 0° (flat) (length x width)||1000*1000 mm|
|Cutting capacity 0° (round)||1000 mm|
|Cutting capacity 0° (square)||1000*1000 mm|
|Cutting speed infinitely variable||15~60 m/min(inverter)|
|Stop length(single stroke)||N/A|
|Accuracy of the feeding(single feeding)||±0.2 mm|
|Saw blade size||67×1.6×9820 mm|
|Saw blade tension type||Hydraulic|
|Workbench height||560 mm|
|Motor rating main drive||11 kw|
|Motor rating of hydraulic feed||3.75 kw|
|Overall dimensions (length x width x height)||4560x2170x3040 mm|
|Weight(NET WEIGHT)||9200 kg|

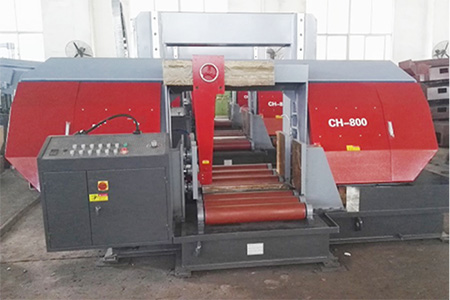

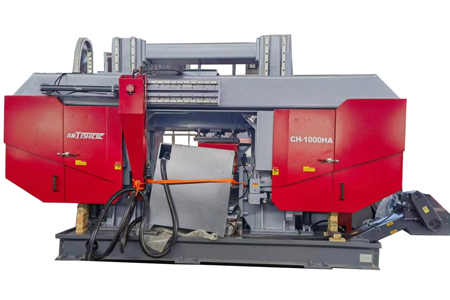

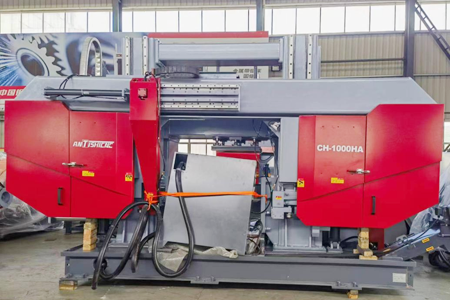

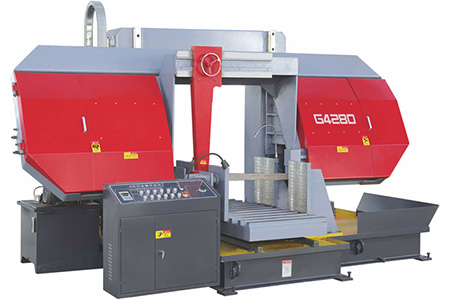

The machine tool adopts a gantry structure to ensure the reliability, stability and advancement of the structure. The functions of each part have sufficient margins, and at the same time, it also ensures high-quality sawing accuracy.
It is mainly used for sawing various medium and large sizes of ferrous and non-ferrous metal bars and plates. It has the advantages of high cutting efficiency, energy saving, narrow saw mouth, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
Hydraulically controlled sawing feed and vise clamping;
High-precision linear guide rail guide, high sawing precision;

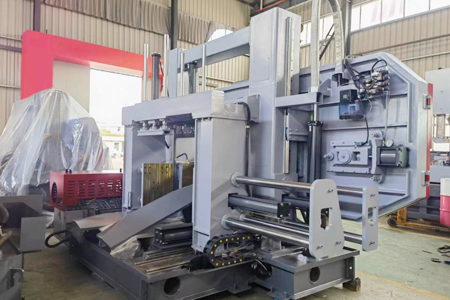

Gantry type structure, good rigidity, reliable and stable structure;
Double oil cylinder control, stable feeding;
Motorized feeding roller table and receiving roller table
Hydraulic tension of saw belt, frequency conversion control of cutting speed, optional chip cleaning device.

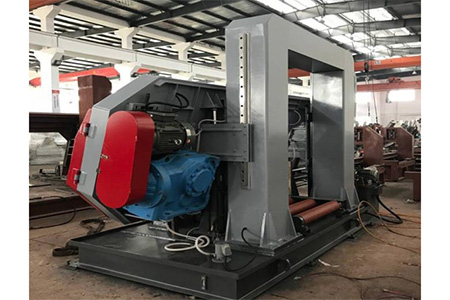

The main drive reducer adopts bevel helical gear reducer, with smooth transmission without impact, high transmission efficiency and long service life.
The hydraulic system adopts an independent hydraulic station, which is convenient for maintenance
1.5m electric roller
|NO.||Spare parts Description||Function|
|1||Spiral Chip Conveyor||Remove the cutting chips|
|2||2 meters detachable rack||Feed|
|3||Tool setting light||Lighting use|
|4||Pressure reducing valve||Adjustable vise pressure (suitable for cutting thin-walled tubes)|
