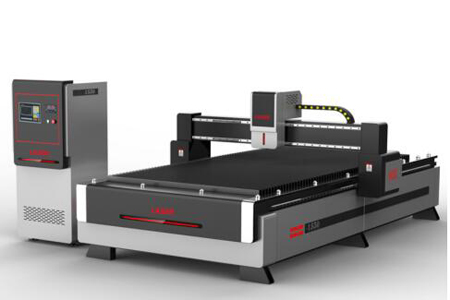

EOE3015 Laser and Plasma Integrated Cutting Machine
Min cutting width : 0.08-0.1mm
Lay out : 3.7*2.3*1.6 m
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Name | Unit | Paramerers |
| Machine model | EOE3015 | |
| Laser Source | w | MAX1000 |
| Water cooler Power | kw | 1 |
| Software | Cypcut | |
| Guide | EOE | |
| Rack | EOE | |
| Servo Motor | 750W | EOE |
| Reducer | EOE | |
| Minimum cutting width | mm | 0.08-0.1 |
| Maximum cutting thickness | mm | 8Carbon steel |
| 4stainless steel | ||
| Maximum moving speed | m/min | 120 |
| Electricity requirements | v/hz | 380/50,60 |
| Graphic Format Supported | PRO/E.UG, Solidworks | |
| Acceleration | G | 0.5 |
| Total power | kw | 7 |
| Presser of N2/O2/AIR | bar | 15-20/6-8/15-30 |
| Total Weight | t | 3 |
| Work per day | h | 16 |
| Lay out | m | 3.7*2.3*1.6 |
| Oil Box | Auto Oil Injection System | |
| Laser source | KW | 1 |
| Machine bed | KW | 5 |
| Water chiller system | KW | 1 |

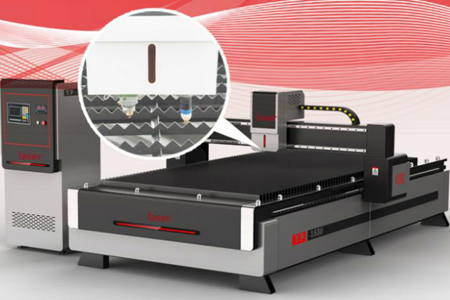

EOE3015 Laser and Plasma Integrated Cutting Machine Product Introduction :
Product Details
Weihong control system
Domestic EOE 750w servo motor with brake
High-precision square rail

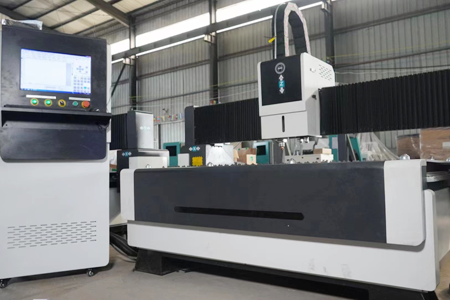

Industrial heavy-duty body, with a professional charging trolley
Industrial computer With a 19-inch screen, it is more in line with the habit of using a computer.
Swiss ray tool laser head with red light positioning operation is more stable and convenient
MAX1000W laser
High-precision planetary speed reducer
Dual cooler is more professional and can work for the long term
The new appearance design is more beautiful
Pressure-resistant and explosion-proof water pipes and air pipes ensure the safe and stable operation of the machine under special circumstances
Laser high-grinding tooth strips
Fully enclosed fireproof is a high and low temperature towline, which ensures the safety of the operation site
X-axis flame retardant dust cover
French Schneider Festival devices
Highly flexible, anti-breaking, cable that can shield external interference signals
Fully automatic oiling system
Easy-to-feed bull’s eye wheel
High-strength body leveling feet, more suitable for different venues of customers, ensuring high quality Operational cutting
Professional serrated blade (with anti-scratch iron plate function)
Air cushion film cling film pearl cotton three-layer soft packaging standard
Standard outlet wooden box（Metal square pipe reinforcement support below for easy unloading）
Main Parts & Standard Equipment
Control system
Servo motor with brake
Square rail
Industrial computer
Swiss ray tool laser head with red light
Dual cooler
Oiling system
