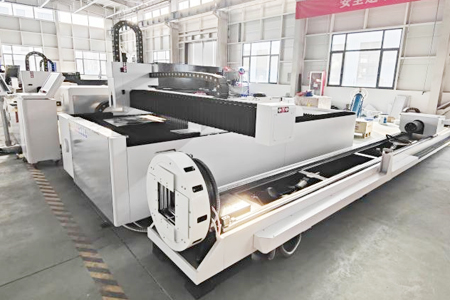

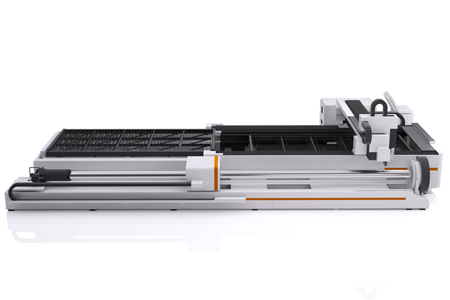

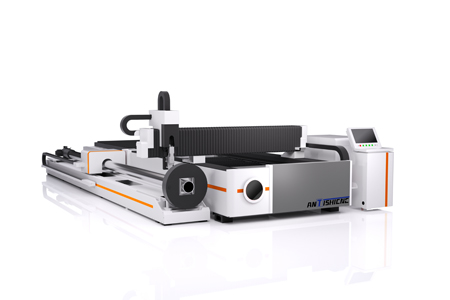

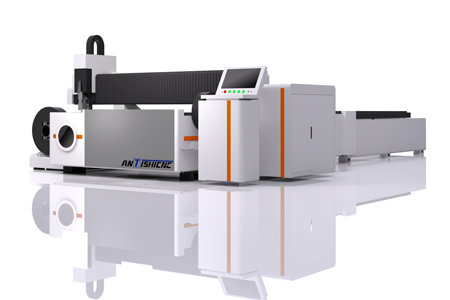

ATP-4020 Series Plate and Tube Integrated Laser Cutting Machine

1. Cutting Process
Laser cutting is the best cutting method in all kinds of cutting technology mastered by people nowadays. Compared with traditional cutting, the advantages of laser cutting lie in:
– Contactless cutting, small thermal deformation;
– Linear cutting has high precision and fast speed;
– Showing a low-carbon, environmentally friendly way;
– Automatically cutting is easy to achieve, improving machining efficiency;
– Buying something costs 50% less than machining.

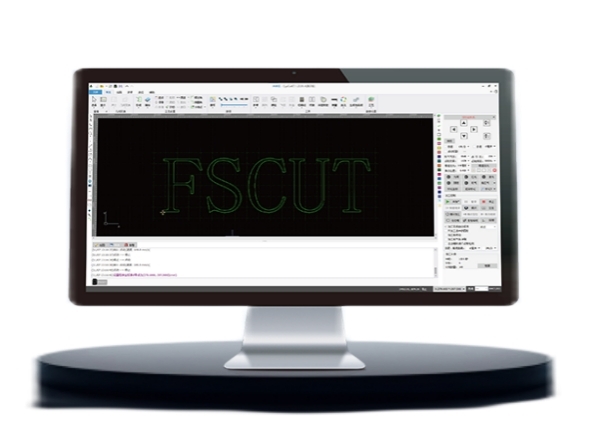

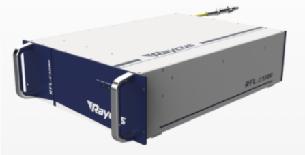

Fiber laser wavelength is 1.07-1.08μm, is 1/10 of the wavelength of CO2 laser, is more conducive to be absorbed by metal materials, cutting carbon steel, stainless steel and aluminum alloy speed is not only faster, but also can cut aluminum coated zinc plate, and pure aluminum, brass, copper and other high reflection non-ferrous metals; Optical fiber transmission, full flight optical path, especially suitable for cutting all kinds of complex parts; Powerful NUMERICAL control system and nesting software to solve many technological problems, further improve the cutting accuracy, perforation speed, simple and convenient operation. The laser is directly transmitted to the cutting head of the machine by the laser through the optical fiber. The mechanical structure is simple, the optical path is constant, the basic maintenance is free, and the cutting performance is stable. The fiber laser uses the rare element Ytterbium as the luminescent material, without high purity helium, nitrogen, carbon dioxide and their consumption. Electricity to light conversion rate up to 30%, more low-carbon, economic.

2. Advantages of fiber laser cutting

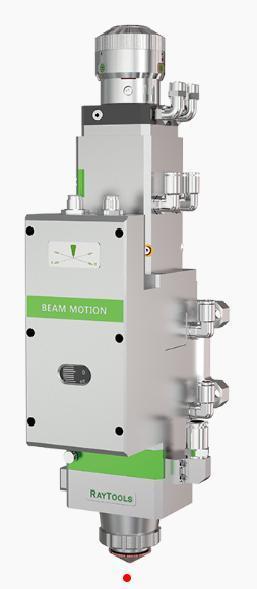

1) Cutting head, with the use of capacitive induction control, so that the nozzle in the cutting process is always consistent with the workpiece surface distance, so it can not only complete the plane cutting, but also can complete all kinds of uneven surface cutting;

2) Cutting quality is good: no contact cutting, cutting edge affected by heat is very small, basically no workpiece thermal deformation, can avoid the collapse of the edge formed when the material punching shear, slit generally do not need secondary processing;

3) Save mold investment: can complete a variety of complex structure processing, only need to draw any image on the computer can be laser processing, no mold, no mold consumption, no need to repair the mold, save the time to replace the mold, so as to save the processing costs, reduce the cost of production, especially suitable for the processing of large products;

4) Material saving: the use of computer programming, can be different shapes of products for cutting, maximize the utilization of materials.

3. Machine Feature:
1)High cutting precision: the laser beam has high cutting precision and can meet most of the cutting needs.

2)Fast cutting speed: the laser beam cutting speed is fast, high degree of numerical control, can meet the needs of mass production.

3)Simple operation: the operation of the laser cutting machine is simple and can be operated through the numerical control system.

4)wide range of processing: laser cutting machine processing range, can cut a variety of materials.

Summary: Laser plate cutting machine is a kind of efficient and accurate cutting equipment, can meet the cutting needs of a variety of materials. In modern industrial production, laser plate cutter has become one of the essential equipment, its high precision, high efficiency, low noise and other characteristics also provides a more convenient solution for industrial production.

4. Cutting Performance
