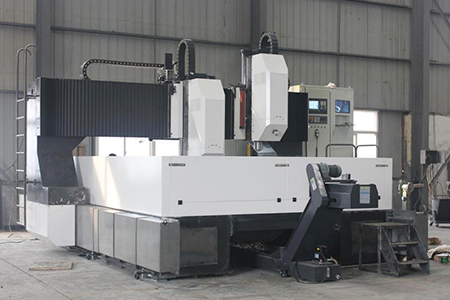

HD6040-1 CNC Gantry Movable High Speed Drilling Machine
Max. size : 6000X4000mm
Work table : 28/500mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Parameter Name | Item | Parameter Value |
| Max. size | L X W | 6000X4000mm |
| Max thickness | 250mm | |
| Work table | Width of T slot | 28/500mm |
| Vertical slide type drill head | Quantity | 1 |
| Main spindle taper hole | BT50 | |
| Max drill diameter | φ50mm | |
| Main spindle speed | 30—3000r/min | |
| Motor power of spindle | 22kW | |
| (X axis)
Gantry longitudinal move
|
Max. stroke | 6000mm |
| Moving speed of X axis | 0-8m/min | |
| Servo motor power of X axis | 3kW | |
| (Y axis)
Power head transverse move
|
Max stroke | 4000mm |
| Moving speed of Y axis | 0-8m/min | |
| Servo motor power of Y axis | 3kW | |
| (Z axis)
Vertical slider feeding |
Stroke of Z axis | 500mm |
| Feeding speed of Z axis | 0-5m/min | |
| Servo motor power of Z axis | 3kW | |
| Positioning accuracy | X/Y axis | ≤0.1mm/ Full length |
| Repositioning accuracy | X/Y axis | ≤0.05mm |
| Hydraulic system | Hydraulic pump pressure/flow rate | 6.5MPa /25L/min |
| Hydraulic pump motor power | 3kW | |
| Pneumatic system | Compressed air pressure | ≥0.4MPa |
| Chip cleaning and cooling | Chip cleaner type | Plate chain type |
| Chip cleaner no. | 1 | |
| Chip cleaning speed | 1m/min | |
| Chip cleaner motor power | 0.75kW | |
| Motor power of inner cooling water pump | 3kW | |
| Motor power of Outer cooling water pump | 0.75kW | |
| Automatic lubricating system | Lubrication pressure | 2MPa |
| Lubrication point oil injecting amount | 0.1mL | |
| Lubrication period | 6-10min | |
| Electric system | CNC system | SIEMENS 828D |
| CNC axis NO. | 4 | |
| Whole power of motors | Approx. 55kW | |
| Overall size | LxWxH | Approx. 11500X7800X3800mm |
| Weight | Approx. 39 t | |
Applicable Industry:

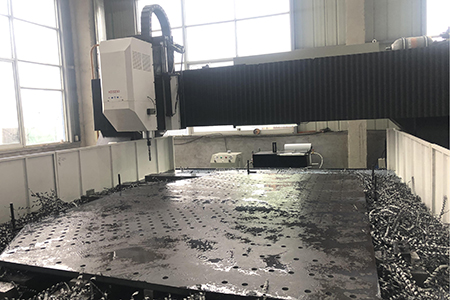

Mainly used for drilling tube plate, clapboard, flange and large plate in petrochemical, boiler, wind power, flange industries and also for connection plates in building, bridge, heat exchange, iron tower industries.
Product feature：
1. Heavy-load linear roller guide pairs are equipped on two sides of the machine bed respectively. The longitudinal movement of the gantry’s two sides is driven synchronously via AC servo motor and precise ball screw pair of big pitch.
2. Two movable slides are equipped on the cross beam of gantry. The sliders are guided by two linear roller guide pairs and driven by AC servo motor and precise ball screw pair of big pitch respectively.

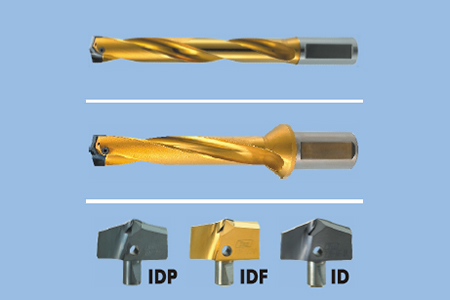

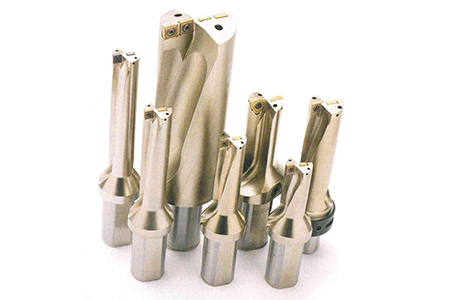

3. The slides on the cross beam are equipped with vertical CNC feeding ram-type drilling spindle, which adopts special conversion motor with heavy load for spindle. The motor drives the spindle via synchronous belt. The drilling spindle adopts Taiwan precision spindle (inner-cooling) with disk spring automatic broach mechanism, hydraulic cylinder loosing cutter, very convenient to change shank.
4. The machine is equipped with hydraulic system to finish the hydraulic balance of vertical ram and hydraulic cutter loosing of spindle.
5. It adopts SIEMENS CNC system, equipped with RS232 interface and LCD screen. The automatic programming provided can not only generate processing programs automatically, but also preview hole position before drilling.
6.It is equipped with chain-plate type automatic chip-conveyor and chip collection trolley. The cooling system is equipped with paper filer, high-pressure inner-cooling pump and low-pressure outer-cooling pump, which are used for inner-cooling or outer-cooling of cutter.
