CNC Drilling Machine

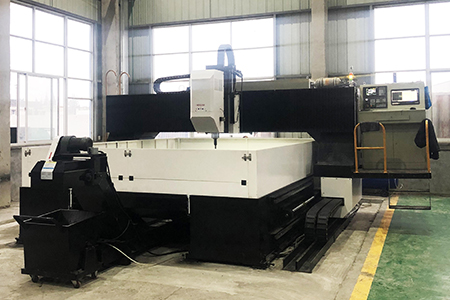

HD3020-1 CNC Gantry Movable High Speed Drilling Machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Parameter Name Item Parameter Value
Max. size L X W 3000X2000mm
Max thickness 100 mm
Work table Width of T slot 28/500mm
Torque Maximum torque 280Nm
Vertical slide type drill head Quantity 1
Main spindle taper hole BT50
Max. drilling diameter Φ50mm
Main spindle speed 30—3000r/min
Motor power of spindle 22kW
(X axis)

Gantry longitudinal move



Max. stroke 3000mm
Moving speed of X axis 0-8m/min
Servo motor power of X axis 3.1kW
(Y axis)

Power head transversal move



Max stroke 2000mm
Moving speed of Y axis 0-8m/min
Servo motor power of Y axis 3.1kW
(Z axis)

Vertical slider feeding

Stroke of Z axis 300mm
Feeding speed of Z axis 0-5m/min
Servo motor power of Z axis 3.1kW
Positioning accuracy X/Y axis ≤0.08mm/ Full length
Repositioning accuracy X/Y axis ≤0.04mm
Hydraulic system Hydraulic pump pressure/flow rate 6.5MPa /25L/min
Hydraulic pump motor power 3kW
Pneumatic system Compressed air pressure ≥0.4MPa
Chip cleaning and cooling Chip cleaner type Plate chain type
Chip cleaner no. 1
Chip cleaning speed 1m/min
Chip cleaner motor power 0.75kW
Motor power of inner cooling water pump 3kW
Motor power of Outer  cooling water pump 0.75kW
Automatic lubricating system Lubrication pressure 2MPa
Lubrication point oil injecting amount 0.1mL
Lubrication period 6-10min
Electric system CNC system SIEMENS CNC
CNC axis NO. 4
Overall size LxWxH Approx. 8150X6500X3500mm
Weight Approx. 31t

Applicable Industry:
Mainly used for drilling tube plate, clapboard, flange and large plate in petrochemical, boiler, wind power, flange industries and also for connection plates in building, bridge, heat exchange, iron tower industries.

Product feature:
1. Heavy-load linear roller guide pairs are equipped on two sides of the machine bed respectively. The longitudinal movement of the gantry’s two sides is driven synchronously via AC servo motor and precise ball screw pair of big pitch.
2. Two movable slides are equipped on the cross beam of gantry. The sliders are guided by two linear roller guide pairs and driven by AC servo motor and precise ball screw pair of big pitch respectively.

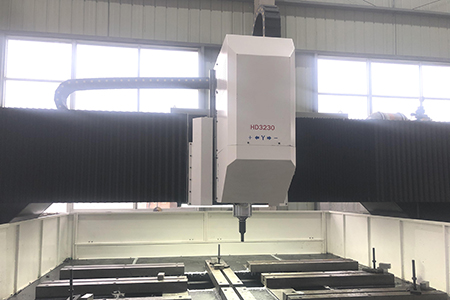

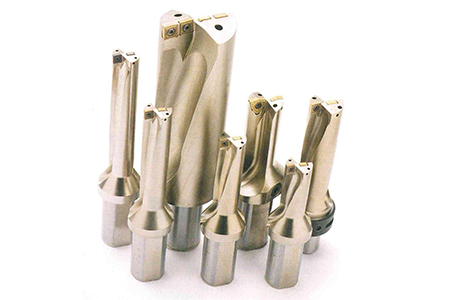

3. The slides on the cross beam are equipped with vertical CNC feeding ram-type drilling spindle, which adopts special conversion motor with heavy load for spindle. The motor drives the spindle via synchronous belt. The drilling spindle adopts Taiwan precision spindle (inner-cooling) with disk spring automatic broach mechanism, hydraulic cylinder loosing cutter, very convenient to change shank.
4. The machine is equipped with hydraulic system to finish the hydraulic balance of vertical ram and hydraulic cutter loosing of spindle.
5. It adopts SIEMENS CNC system, equipped with RS232 interface and LCD screen. The automatic programming provided can not only generate processing programs automatically, but also preview hole position before drilling.
6.It is equipped with chain-plate type automatic chip-conveyor and chip collection trolley. The cooling system is equipped with paper filer, high-pressure inner-cooling pump and low-pressure outer-cooling pump, which are used for inner-cooling or outer-cooling of cutter.
