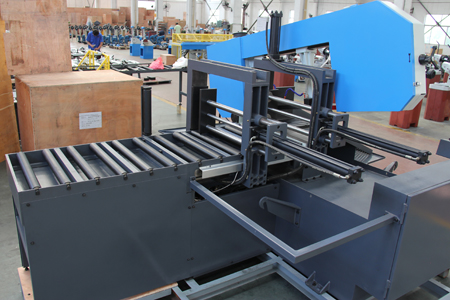

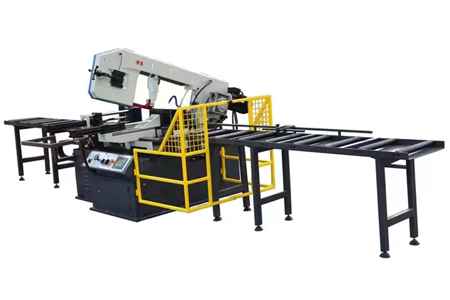

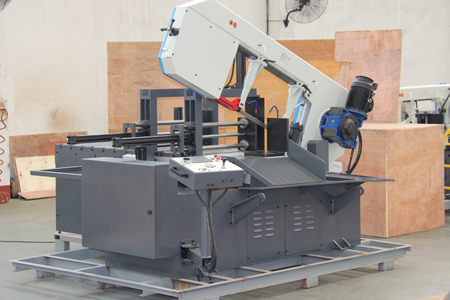

Horizontal Mitre Band Saw Machine BS-650G
Rectangular @ 90° : 650mmx350mm
Rectangular @ 60° : 310x350mm
Rectangular @ 45° : 460x350mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Model | BS-650G |
Circular @90° Round steel | 460mm(18”) |
Rectangular @90° Square steel | 650mmx350mm |
Circular @60°(Right) Round steel | 310mm |
Rectangular @60°(Right) Square steel | 310x350mm |
Circular @45°(Left & Right) Round steel | 460mm |
Rectangular @45°(Left & Right) Square steel | 460x350mm |
Blade speed | 23-95rpm |
Blade size | 34×1.1x5220mm |
Motor | 5.5 kW(servo) |
Drive | Gear |
Packing size | 293x220x200cm |
N.W./G.W | 2020/2320kg |
Features:
1. CNC automatic feeding and cutting
2. With hydraulic clamping vice
3. With automatic rotary saw bow
4.With deceleration variable frequency motor
5. The maximum length of an automatic feed us to 650mm
6. The maximum processing capability is 18 inch.
7. The precise CNC band saw BS-650G has a hydraulic control system that can automatically feed and clap materials, rotate, cut.
8. Our CNC band saw has a variable speed gear motor that determines the rotation rate of saw blade.
9. Hydraulic pressure controls the rotation of saw bow. The maximum feeding length is 650mm
10. The cooling system of our CNC band saw prolong the service life of saw blade and improve the precision of the work piece
Standard Equipment
1.Manual defend net
2.Back roller stand
3.Tools
