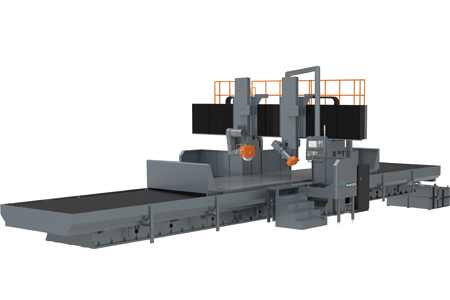

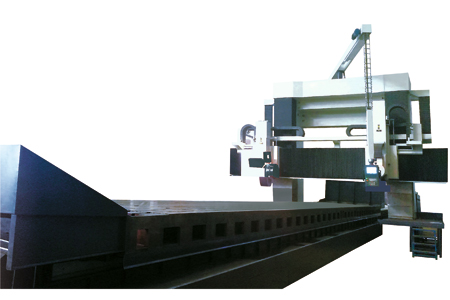

MKW52 series Double Column CNC Gantry Guide Grinder Machine
Max. grinding height :
2000/2500/3000 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Technical Specifications
Technical Description | Unit | MKW5225A | MKW5230A | MKW5240A |
Table width | mm | 2000 | 2500 | 3000 |
Table length | m | 6/8/10/12/14/15/16 | 8/10/12/13/14/15/16 | 8/10/12/13/14/15/16 |
Max. grinding height | mm | 2000/2500/3000 | ||
Column distance | mm | 2500 | 3000 | 4000 |
Horizontal wheel head motor | kw | 30 | 30 | 30 |
Horizontal wheel size | mm | φ600*150*305 | φ600*150*305 | φ600*150*305 |
Horizontal spindle speed | mm | 1050 | 1050 | 1050 |
Vertical head motor | mm | 15 | 15 | 15 |
Vertical travel of Horizontal head | mm | 250 | 250 | 250 |
Vertical travel of vertical head | mm | 800 | 800 | 800 |
Vertical wheel size | mm | φ600*100*250 | φ600*100*250 | φ600*100*250 |
Vertical spindle speed | mm | 800-2500 | 800-2500 | 800-2500 |
Vertical head rotation | ° | ±90 | ±90 | ±90 |
This series of machine tools adopts a gantry layout, and consists of a closed high-rigidity frame structure composed of double columns, beams and bed. It is a program-controlled (NC) fixed beam gantry rail grinder integrating advanced technologies such as machinery, electricity and hydraulics. Grinding.
Product Features
The machine adopts gantry type layout, consisting of double columns, beams and bed body .
The beam adopts the structure of ladder, partially attached steel guide rail, roller block , the whole rigidity is strong, the mechanical property is good.
The spindle of grinding head adopts dynamic and static shaft tile structure, which has the advantages of long life, high movement precision and good anti-vibration performance.
The working table is driven by oil cylinder, step-less speed regulation, stable movement and low noise;
The main motor of hydraulic station adopts servo motor, and the flow varies with the speed of motor, saving energy and high efficiency.
Vertical grinding head rotation with end gear disk positioning, one point.Large range of processing, to meet the needs of precision machining of large and extra-large work-piece.
Dedicated human-computer interaction interface, simple and efficient operation.
Application
The machine is a fixed beam type gantry guide grinder, can grind medium and large work-piece plane and various machine guide..
Standard Accessories
Coolant system, leveling wedges, foundation screw, wheel flange, wheel balance arbor,standard wheel, operation manual,wheel dressing base,PLC controller and Touch screen, Magnetic separator
Optional Accessories
Diamond pen
Wheel balance stand
DRO
Magnetic chuck
