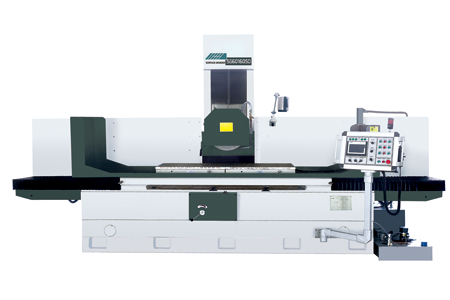

SGL Column Moving Surface Grinding Machine
Max grinding size :
1600*610 mm
3000*810 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Description | Unit | SG60160SD (SGL60160PC2) |
SG60220SD (SGL60220PC2) |
SG60600SD (SGL60600PC2) |
SG80160SD (SGL80160PC2) |
SG80220SD (SGL80220PC2) |
SG80300SD (SGL80300PC2) |
|
| Table size(L*W) | mm | 1600*610 | 2200*610 | 6000*610 | 1600*810 | 2200*810 | 3000*810 | |
| Max.grinding size of work-piece(L*W) | mm | 1600*610 | 2200*610 | 6000*610 | 1600*810 | 2200*810 | 3000*810 | |
| Distance from spindle center to table | mm | 820/1050 | 820/1050 | 800/1050 | 820/1050 | 820/1050 | 800/1050 | |
| Magnetic chuck size | mm | 600*800*2 | 600*1000*2 | 600*1000*6 | 800*800*2 | 800*1000*2 | 800*1000*3 | |
| Table longitudinal speed | mm | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | |
| Max. table load (include magnetic chuck) | kg | 1230 | 1690 | 6000 | 1230 | 1690 | 6000 | |
| Wheel head Transverse moving | Auto intermittent feed rate | m/t | 1~30 | 1~30 | 1~30 | 1~30 | 1~30 | 1~30 |
| Rapid speed feed | m/min | 0.05-2 | 0.05-2 | 0.05-2 | 0.05-2 | 0.05-2 | 0.05-2 | |
| Hand-wheel feed per gra. | mm/gra. | 0.05(0.02) | 0.05(0.02) | 0.05(0.02) | 0.05(0.02) | 0.05(0.02) | 0.05(0.02) | |
| Wheel vertical moving | Auto intermittent speed | mm/t | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 |
| Rapid speed feed | m/min. | 0.05-2 | 0.05-2 | 0.05-2 | 0.05-2 | 0.05-2 | 0.05-2 | |
| Hand-wheel feed per gra. | mm/gra. | 0.005(0.001) | 0.005(0.001) | 0.005(0.001) | 0.005(0.001) | 0.005(0.001) | 0.005(0.001) | |
| Grinding Wheel Speed | RPM | 960 | 960 | 960 | 960 | 960 | 960 | |
| Wheel size(OD*Width*ID) | mm | 500*75*305 | 500*75*305 | 500*100*305 | 500*75*305 | 500*75*305 | 500*75*305 | |
| Total rated power | KW | 28.5 | 28.5 | 38.5 | 28.5 | 28.5 | 31 | |
| Surface roughness | μm | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 | |
| Gross weight | kg | 8500 | 9500 | 25000 | 10000 | 11500 | 14000 | |
| Package dimension(L*W*H) | cm | 480*220*172 | 600*220*172 | 600*300*172 | 480*220*172 | 600*220*172 | 830*220*172 | |
| 260*227*255 | 260*227*255 | 260*350*255 | 280*227*255 | 280*227*255 | 280*227*255 | |||
Remark: SGLXXXPC2 means PLC controlled machine is with linear guideway; SGXXXSD means PLC controlled machine is with box way.
Product Features
High strength cast iron foundation
Longitudinal moves hydraulically with variable speed
The transverse and Vertical moves by servo motor and PLC controller realizing auto feed
The machine is suitable for heavy duty grinding with high grinding efficiency
Forced lubrication guideway, prolong the service life of machine.

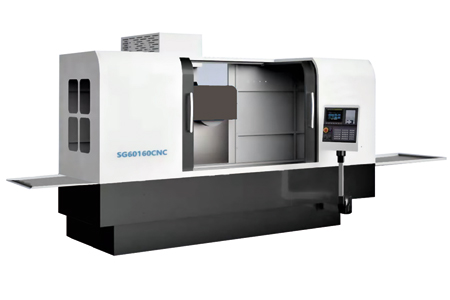

The machine can be configured with the CNC system to expand to 2-axis CNC or 3-axis CNC machine.
Application
The machine is mainly suitable for grinding steel parts, cast iron and various non-ferrous metal parts especially important surface, also can grind non-metallic sapphire and other materials, suitable for machinery processing plant, grinding tool processing plant and automobile and other industries of medium and large parts grinding.
Standard Accessories
Coolant system, Working light, leveling wedges, foundation screw, Wheel flange, Wheel balance arbor, Magnetic chuck, Standard wheel, Operation manual,Wheel dressing base,PLC controller and Touch screen.
Optional Accessories
Diamond pen
Magnetic separator
Wheel balance stand
DRO
