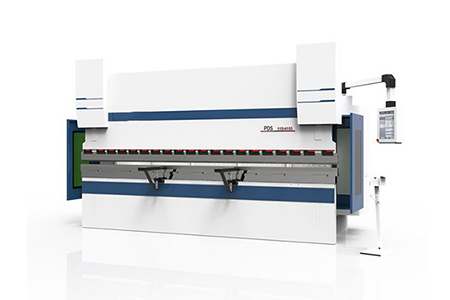

Oil-electric hybrid servo press brake machine
Nominal pressure: 400–3200KN
Bending length: 1500–6100mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
name | unit | parameter value |
Nominal pressure | KN | 400–3200 |
Bending length | mm | 1500–6100 |
Column spacing | mm | 1200–5600 |
Cylinder stroke | mm | 160–300 |
opening height | mm | 370–560 |
throat depth | mm | 300–400 |
no load | mm/s | 120–160 |
Slider motion speed work | mm/s | 9–13 |
return trip | mm/s | 110–140 |
main motor power | KW | 4–22 |
Dimensions (L×W×H) | mm | According to model |
machine weight | kg | About 4220-28530 |
Slider positioning accuracy | mm | ±0.02 |
Slider Repeat Positioning Accuracy | mm | ±0.01 |
Repeat positioning accuracy of backgauge | mm | ≤±0.02 |
Machine tool precision | ||
Workpiece straightness | mm | 0.3/m |
Bending Angle Error | ±20 | |
Grating resolution | mm | 0.005 |
Features
1.Adopt on-demand oil supply mode to reduce overflow and save energy by more than 30%
2.The capacity of the fuel tank is small and the temperature is low, prolonging the service life of the hydraulic system and components
3.The mechanical performance achieves high precision and high efficiency, and has the advantages of energy saving and environmental protection
4.The Dutch DelemDA53T system is standard
5.Equipped with Rexroth high-performance servo hydraulic system to control synchronization
6.The main motor adopts high-performance servo motor
7.Adopt CNC to control the mechanical disturbance compensation device
