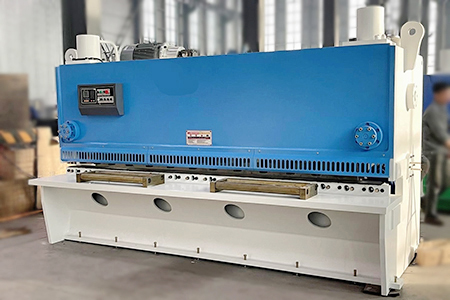

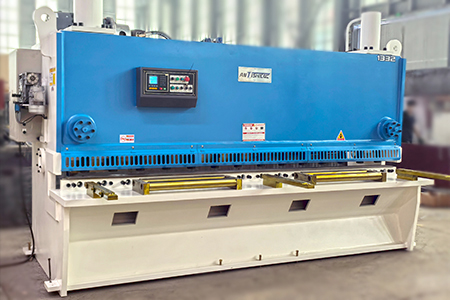

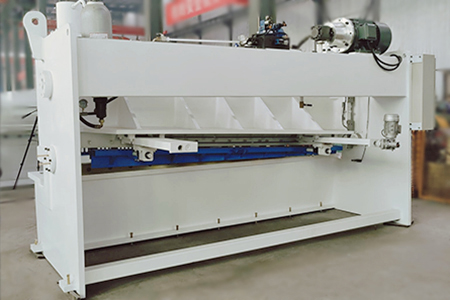

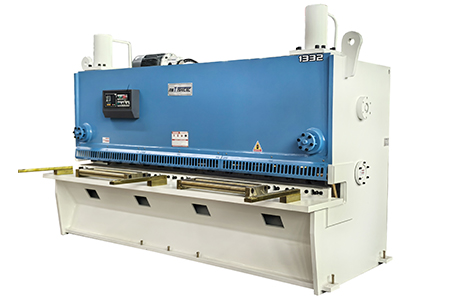

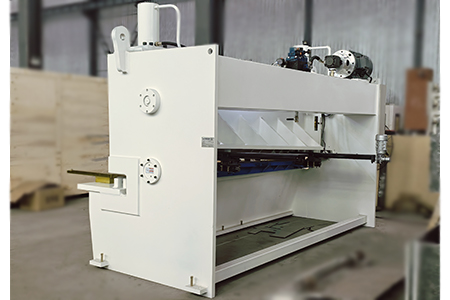

QC12K-13*3200mm Hydraulic Shearing Machine

Max. Cutting thickness: 13mm

Max. Cutting width: 3200mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Item Parameter Unit
Max. Cutting thickness 13 mm
Max. Cutting width 3200 mm
Number of strokes 10 times/min
Rake angle 30’-3° angle
Back gauge distance adjustment 20-600 mm
Main motor power 15 KW
Overall Dimensions 3880*2150*2300 mm
The weight of machine 9.3 Ton

This machine adopts E21S series single-axis CNC system, which is easy to operate and stable in performance.

1.The overall welded frame structure is adopted, and light vibration aging treatment is adopted. The machine tool has good rigidity, high precision and good precision retention.

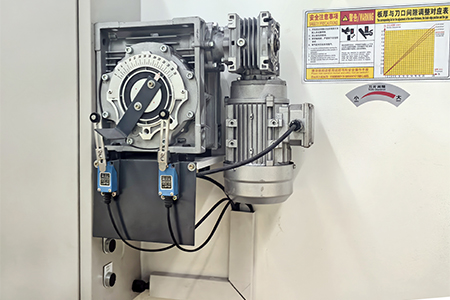

2.The three-point roller guide rail is adopted, and the upper tool holder moves linearly between the guide rails, and the blade gap can be adjusted by turning the hand wheel. The blade gap value corresponds to the plate thickness displayed on the gap table.

3.Movable blade support and four-edged upper blade are convenient for adjusting the uniformity of the blade gap, improving the cutting quality and prolonging the service life of the blade.

4.The tandem oil cylinder synchronization system is adopted, and the force on the machine tool is even.

5.The numerical control rear gauge device is adopted to facilitate the adjustment of the position of the rear gauge.

6.The hydraulic pressure feeder makes the cutting more reliable.

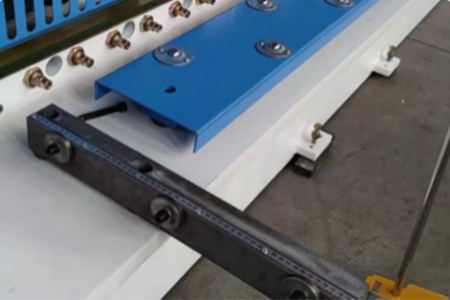

7.Spherical ball support table and support rod, which is convenient for users to cut and load materials.

8.The strip steel ruler front stopper perpendicular to the lower blade meets the user’s front positioning operation requirements.

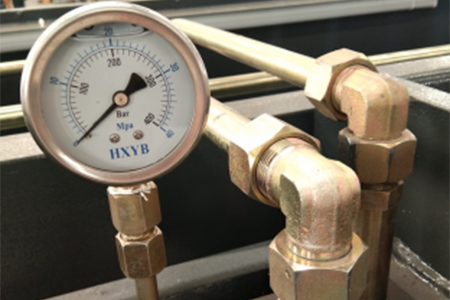

9.The hydraulic system uses a bladder accumulator as an auxiliary energy source, and at the same time absorbs pressure shocks. The machine tool runs smoothly and has low noise.

Configuration from Famous import brand
Built- in Spring Pressure Cylinder Controller: E21S Front Feeding Table & ruler

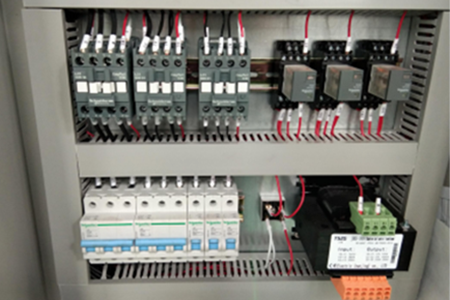

France Schneider electrics Safety fence Germany EMB Tube

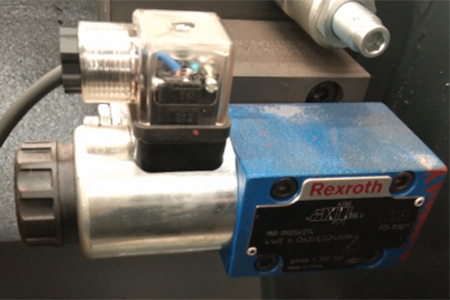

Hydraulic valve
Rexroth,Germany
Siemens Motor American Sunny Oil Pump
