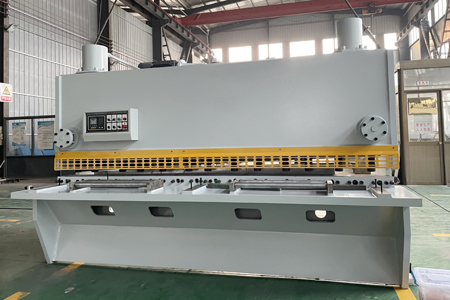

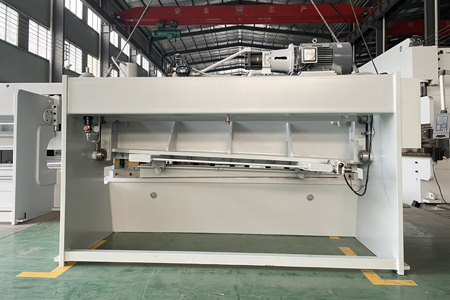

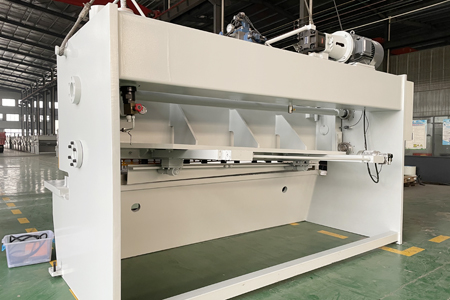

QC11Y-16×3200 Hydraulic Guillotine Type Shearing Machine
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Specifications | Unit | QC11Y-16×3200 |
Max. shearing plate thickness | mm | 16 |
Max. shearing plate width | mm | 3200 |
Sheared sheet tensile strength | N/mm2 | δb≤450 |
Shear angle | – | 0.5—1.5° |
Throat depth | mm | 120 |
Number of travels | times/min | 7~10 |
Workbench height from the ground | mm | 900 |
Blade length | mm | 3300 |
Back gauge range | mm | 20~800 |
Main motor model | / | Y132M-6B5 |
Main motor speed | rpm | 1440 |
Main motor power | KW | 22 |
Gear pump model | / | NB2-40GF |
Gear pump flow | L/min | 40 |
Gear pump pressure | Mpa | 31.5 |
Equipment Size(L*W*H) | mm | 3750*1700*2500 |
Product Details
The whole machine adopts an all-steel welded structure, and the welded parts such as wall panels, workbenches, and tool holders eliminate stress by vibration, and have good rigidity and stability.
1. This machine is the latest generation hydraulic shearing machine. Advanced hydraulic integrated valve block is adopted. Compact structure, reducing pipeline connections and improving the reliability of the system
Reliability and ease of maintenance.
2. Structural parts are derusted by shot blasting and sprayed with antirust paint;
3. The main parts of the machine tool, such as the frame, the upper tool rest, and the workbench, are all finished by domestic famous brand CNC large-scale floor boring and milling machines, which ensures that the main
The geometric accuracy of the machine.
4. The oil cylinders connected in series make the oil cylinders synchronized when the machine tool is cutting, and the cutting angle can be adjusted.
5. The installation surface of the blade on the upper tool holder is a helical surface, which ensures the uniformity of the blade gap during the cutting process, and the quality of the cutting section is good. sub-shaft bearing
The upper knife holder swings up and down, and the eccentric mechanism quickly adjusts the blade gap to improve the cutting accuracy.
6. The return stroke of the accumulator is stable and rapid, which changes the structure of the traditional gas storage tank and prevents the leakage of nitrogen gas.
7. The upper and lower blades are rectangular, and the material is 6Crw2Si, which has good hardness and long service life.
8. The gap between the upper and lower blades is adjusted by the handle, and the dial indicates the value. The adjustment is easy, fast, correct and reliable.
9. The back gauge is electromechanical and can be fine-tuned manually. There are digital display devices for the size of the gauge and the number of cutting times, which is easy to use.

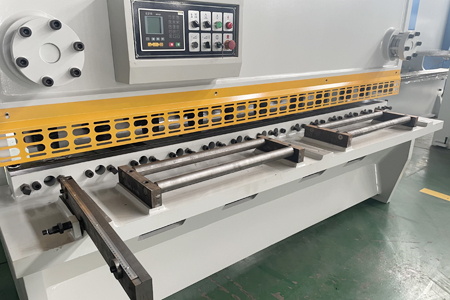

10. The working surface is equipped with a rolling structure to reduce sheet scratches and reduce frictional resistance.
Specifications | Supplier |
Seals | Japan VALQUA |
Hydraulic valve | China Mainland |
Electrical components | SIEMENS/SCHNEIDER |
Main motor | China Mainland |
Blades | China Mainland |
Oil pump | China Mainland |
