Roll lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :

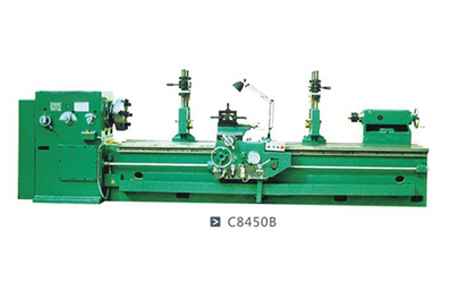

| Type | C8450B/ C8450C | C8463AVC8463C | C8480/C8480C |
| Max machining diameter( mm ) | ￠ 500 | ￠630 | ￠ 800 |
| Max length of workpiece( mm ) | 2500 | 4000 | 4000 |
| Max weight of workpiece( T ) | 3 | 6~8 | 6~8 |
| Bed width (mm) | 670 | 1020 | 1020 |
| Spindle speed ( rpm ) | 2~90 | 1~73 | 1~73 |
| Power of spindle servo motor (kw) | AC15 | AC22/AC30 | AC22/AC30 |
| Steady rest
(Optional with accessories) |
Φ180~Φ270 | Φ220~Φ320 | Φ220~Φ320 |
| Open steady rest
(Optional with accessories) |
1600 | ||
| Machine weight of standard model (T) | 6.8 | 15 | 16 |
| Add weight per meter
( T ) |
0.8 | 1 | 1.2 |
| Machine outline size
(mm) |
4765x1950x1500 | 6750x1600x1650
/7750x1600x1850 |
8800x2800x1650
/8800x2800x1800 |
| Shape of tool post | Optional with frame-type tool rest or press plate tool rest | ||
| Digital display | optional | ||
| Grinding head device | optional | ||
| Milling head device | optional | ||
| Machine tailstock | optional | ||
| Type | C8480/C84100 | C84100/C84125 | C84125/160/200 | C84125/160200/250 |
| Max machining diameter( mm ) | ￠800/ ￠1000 | ￠ 1000/ ￠1250 | ￠ 1250/￠ 1600/￠2000 | ￠1250/￠1600/￠2000/￠2500 |
| Max length of workpiece( mm ) | 4000 | 4000~ 16000 | 5000~ 16000 | 5000~ 16000 |
| Max weight of workpiece( T ) | 15、 18 | 15、18、20 | 25、32、40 | 25、32、40、63 |
| Bed width (mm) | 1350 | 1350 | 1600(Three guide rails) | 1600 (Four guide rails)( 1250/160 ) 2050(Four guide rails) |
| Spindle speed ( rpm ) | 2~ 200 | 2~ 200 | 0.8~160;0.5~100 | 0.8~ 160; 0.5~ 100 |
| Power of spindle servo motor (kw) | DC55 | DC55 | DC 75/90 | DC 75/90/110/125 |
| Steady rest
(Optional with accessories) |
Φ300~Φ480 | Φ300~Φ480 | Φ400~Φ750 | Φ400~Φ800 |
| Open steady rest
(Optional with accessories) |
Φ400~Φ920 ( C84100 ) | Φ400~Φ920 ( C84100 ) | Φ800~Φ1500 ( C84125 ) | Φ800~Φ1600 ( C84160 ) |
| Machine weight of standard model (T) | 29 | 30(4m机型) | 45(5m机型) | 45(5m机型) |
| Add weight per meter
( T ) |
1.5 | 1.5 | 2.5 | 3 |
| Machine outline size
(mm) |
9800X2500X2200
19800X2500X2350 |
10719x 2360x 1830 ( C84125 ) | 10672 x 2479 x 2280 ( C84125 ) | 14100 x 4348 x 2445 ( C84125 ) |
| Shape of tool post | Optional with frame-type tool rest or press plate tool rest | frame-type tool rest | ||
| Digital display | optional | standard | ||
| Grinding head device | optional | |||
| Milling head device | optional | |||
| Machine tailstock | standard | |||
Introduction
The roll lathe produced by our company has the following technical characteristics:
1. The basic components such as the bed, main shaft, tailstock sleeve, etc. have been optimized and finely processed, with high precision and rigidity, and are suitable for open-hole type;
2. Key components such as spindle bearings and electrical components are selected from well-known brands;
3. The machine tool has a good appearance and good operation and pleasantness.
The bed of this machine has three rectangular guide rails, which have good rigidity and can bear larger cutting torque. This machine tool is mainly used for roll pass processing, and it can also turn the outer circle, roll neck, etc. of the roll, and can perform turning processing on parts similar to the roll. Suitable for cutting cast steel, forged steel, alloy steel, chilled cast iron, ductile iron and other materials.
