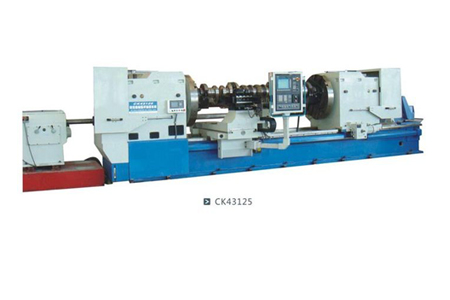

CNC crankshaft connecting rod neck lathe
For processing various large eccentric shafts and crankshaft connecting rod journals
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Main specifications | unit | CK43100 | CK43125 | CK43160 | CK43250 |
| Swing over carriage | mm | 600 | 850 | 1250 | 2000 |
| Adjustable range of eccentricity | mm | 0~ 105 | 0~ 160 | 0~ 260 | 0~ 300 |
| Max.load between centers | ton | 6 | 6 | 10 | 63 |
| Bed width | mm | 970 | 1100 | 1600 | 2050 |
| Spindle speed | rpm | 16~ 200 | 12~ 160 | 2~ 120 | 0.8~ 160 |
| Spindle motor | kw | AC17/22 | AC30/42 | DC55 | DC110 |
| Machine weight of 3 meters | kg | 18500 | 19500 | 30000 | 65 |
| Add weight per meter | kg | 1200 | 1250 | 2250 | 3200 |
| Machine outline size of 3 meters | L* w * h | 7350X1850X1950 | 7850X2550X1950 | 15200X2450X2475 | 10500X4100X3100 |
Product description:
This machine tool is a special numerical control equipment for processing various large eccentric shafts and crankshaft connecting rod journals. It can complete the crankshaft main journal and connecting rod journal: outer circle, round root, crank arm outer circle, crank arm inner surface, connecting rod Semi-finishing and finishing of the internal fillet of the neck intersection and the external round chamfer of the crank. It also has the function of machining the crankshaft spindle diameter. Suitable for carbon steel, alloy steel, cast steel, cast iron processing.
