CNC roll lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Type | CK8450 | CK8463
CK8480 |
CK8480
CK84100 |
CK84100
CK84125 |
CK84125/
160/200 |
CK84125/
160/200/250 |
|
| Max machining diameter( mm ) | ￠500 | ￠630/￠800 | ￠800/￠ 1000 | ￠1000/￠1250 | ￠1250/￠1600
￠2000 |
￠1250/￠1600
￠2000/￠2500 |
|
| Max length of workpiece( mm ) | 2500 | 3200/4000 | 4000~ 16000 | 4000~ 16000 | 5000~ 16000 | 5000~ 16000 | |
| Max weight of workpiece( T ) | 3 | 6/8 | 15、18 | 15、18、 20 | 25、32、40 | 25、32、40、63 | |
| Bed width (mm) | 670(Three guide rails) | 1100(Three guide rails) | 1350(Three guide rails) | 1350(Three guide rails) | 1600(Three guide rails) | 1600 (Four guide rails)( 1250/160 ) 2050(Four guide rails) | |
| Spindle speed ( rpm ) | 5~400 | 2.5~250 | 2~ 200 | 2~ 200 | 0.8~ 160;
0.5~ 100 |
0.8~ 160;
0.5~ 100 |
|
| Power of spindle servo motor (kw) | AC30 | AC37 | DC55 | DC 55 | DC 75/90 | DC 75/90/110/125 | |
| Steady rest
(Optional with accessories) |
Φ140~Φ270 | / | / | Φ300~Φ480 | Φ400~Φ750 | Φ400~Φ800 | |
| Open steady rest
(Optional with accessories) |
/ | / | Φ400~Φ920 ( CK84100 ) | Φ400~Φ920 ( CK84100 ) | Φ800~Φ1500 ( CK84125 ) | Φ800~Φ1600 ( CK84160 ) | |
| Machine weight of standard model (T) | 6.8 | 15.5 | 29(4m机型) | 30(4m机型) | 46(5m机型) | 63(5m机型) | |
| Add weight per meter
( T ) |
0.8 | 1 | 1.5 | 1.5 | 2.5 | 3 | |
| Machine outline size
(mm) |
4765x1670x1500 | 6750x2200x1670/7750x2200x1850 | 7600x2600x1650/7600x2600x1850 | 10719x 2360x 1830 ( CK84125/5m ) | 10672 x 2479 x 2280 ( CK84125/5m ) | 14100 x 4348 x 2445 ( CK84125/5m ) | |
| Shape of tool post | Optional with frame-type tool rest or vertical four-position tool rest | frame-type tool rest | |||||
| CNC system | Japan FANUC 0L-TF, Germany SIEMENS 828D, Beijing Kaini CNC system (can be selected according to user needs) | ||||||
| Grating scale | optional | ||||||
| Measure unit | optional | ||||||
| Tool setting | optional | ||||||
| Chip conveyor | optional | ||||||
| Grinding head device | optional | ||||||
| Milling head device | optional | ||||||
| Machine tailstock | optional | standard | |||||
Introduction

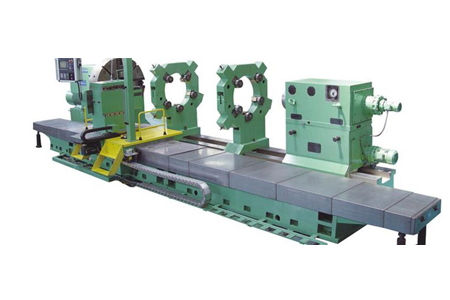

The CNC roll lathe is one of our company’s CNC series products. It has the characteristics of high precision, high power, good rigidity, excellent manufacturing and complete functions. Its main components and structures have been optimized and designed for rough and finish machining of cast iron, steel and non-ferrous metals with high-speed steel and hard alloy turning tools. The machine tool can be used for turning external circles, end faces, grooving, and various pass types. Processes such as surface turning and repairing.
