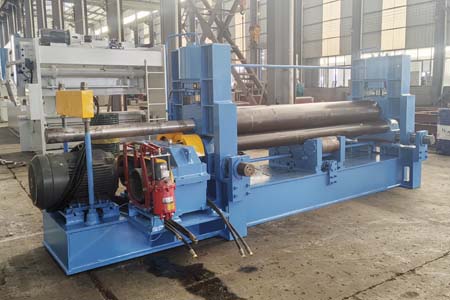

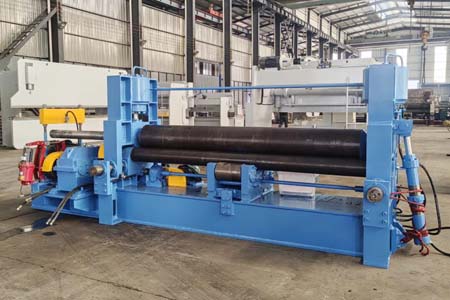

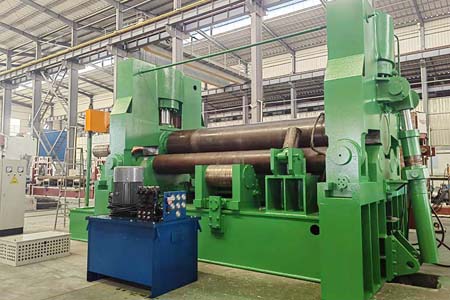

W11S-20X2500 Upper Roller Universal Plate Rolling Machine

W11S-20X2500 Upper Roller Universal Plate Rolling Machine Product Introduction :

Equipment Introductions:
This machine is a hydraulic three-roller plate rolling machine with Japanese technology, which is used to roll steel plates into cylindrical, conical, arc-shaped, etc.
This machine is a hydraulic three-roller plate rolling machine, which is used to roll plates into cylindrical, arc-shaped, and conical shapes at room temperature.
The upper roller can move vertically and horizontally.
Pre-bending is achieved by horizontally moving the upper roller so that the upper roller is in an asymmetric position relative to the lower roller.
When rolling, the two lower rollers are driven by the motor and the reducer.
Since the elevation of the lower roller remains unchanged, it is convenient for feeding and operation.
The tipping frame adopts hydraulic tipping.
The vertical displacement of the upper roller adopts hydraulic transmission, and the horizontal movement adopts mechanical transmission.
It is controlled by PLC programmable display.
Provide detailed electrical schematics, and the electrical wiring must be strictly carried out according to the drawings. The numbers at both ends of each connection must be clear and complete. The terminal block should be labeled with the same wire number as the connection number, and corresponding marks should be made on the electrical wiring diagram and schematic diagram;
All electrical parts used in the equipment are high-quality products from famous brands. Electrical protection devices (such as current relays, air switches, etc.) must be strictly tested by the electrical manufacturer before installation to ensure reliable operation.
The hydraulic components used in the equipment are famous brand products. The equipment runs smoothly, the control is flexible, there is no jamming, oil leakage and abnormal noise.
Adding a cone device can roll a cone within a certain range.
The equipment has high reliability and low failure rate.

Performance and features:
1. High-precision end pre-bending
Free setting of straight edge length and direct pressure pre-bending by upper rollers can complete high precision end pre-bending.
2. NC control, high productivity
Rolling The process parameters of the product NC, easy to operate, the efficiency is greatly improved.
3. Superior precision of products
The upper roll is in the shape of a drum, and the lower part of the lower roll is adjusted with a roller, and continuous bending makes it possible to roll ideal products in a wide range of thicknesses from thin plates to thick plates.
4. Safety of operation
The two lower rolls are fixed, the upper rolls move up and down, left and right, and the workpiece does not move with the work rolls, so the operator is safe.
5. Integral structure, simple foundation, easy to move
The equipment adopts integral chassis, no need for ground bolts, simple foundation, easy to move the workplace.
6. Different applications, corresponding control methods
According to the usage, there are the following control methods:
TNC (Upper NC): Multi-species, small amount of production;
T&BNC (Upper and lower NC): For few varieties and mass production.
7. Abundant bending shapes
With rolled O-type, U-type, multi-section R, and auxiliary cone device, a certain range of cones can be rolled.
O-bending: rear bending method
U-shape bending: Front bending method
Multi-section R bending: Combination type method.
