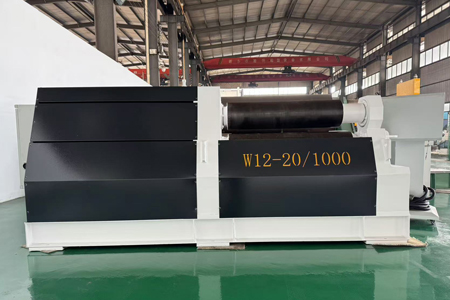

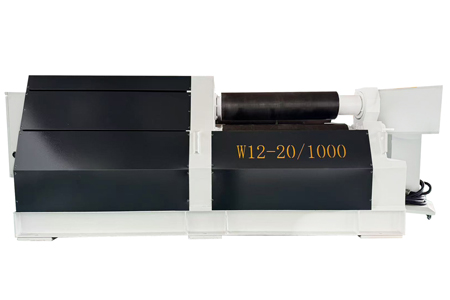

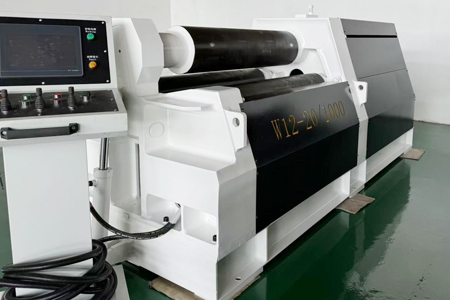

W12CNC-20X1000 CNC Hydraulic Four-roller Plate Rolling machine
Max width : 1000mm
Length of working roller : 1050mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | Unit | W12CNC-20*1000 |
| Max width | mm | 1000 |
| The length of working roller | mm | 1050 |
| Full-loading min. diameter | mm | T20*B1000*φmin500（σs≤245Mpa） |
| Pre-bending min. diameter | mm | T16*B1000*φmin500（σs≤245MPa） |
| Top roller diameter | mm | Φ260 |
| Lower roller diameter | mm | Φ240 |
| Side roller diameter | mm | Φ200 |
| Rolling speed | m/min | About 4 |
| Main motor power | kW | 7.5 |
| max working pressure of hydraulic system | MPa | 19.5 |
This machine is four-roller plate rolling machine, top roller is the main drive and do rotation movement, lower roller makes up-down movement to make the plate can get the frication along with length direction, two side rollers makes Up-down movement which is an angel with straight line, which can make the steel plate get the needed plastic deformation. Because adjust the side roller can achieve symmetric bending and asymmetrical bending, the flat end will be very short in theory, comparing with three-roller plate rolling machine, which can save pre-bending procedure and pre-bending device, meanwhile it can make rough leveling of steel plate. It is extensively applied in petroleum industry, chemical industry, boiler, shipbuilding industry, hydroelectricity, metal structure and machinery industry.
Standard parts
| NAME | Manufacture | ||
| Bearings | Type | Double row aligning bearing | |
| Manufacture | Wafangdian | ||
| Rollers | Material | 42CrMo forging | |
| Manufacture | Nangang/Warwick Steel
· |
||
| Body frame | Material | Q235A | |
| Processing methods | Welded structural parts, annealing stress – shot blasting, CNC boring and milling machine machining | ||
| Manufacture | ANTISHICNC | ||
| Hydraulic driver | Jieshite | ||
| Hydraulic motor | Nantong tongde | ||
| Main electrical element | SIEMENS | ||
| Hydraulic system | Pump | Type | Gear pump |
| Manufacture | Changyuan | ||
| Valve | Manufacture | YUKEN | |
| cylinder | Piston rod | 45 Forgings, Heat treatment HRC48-52
· |
|
| Manufacture | Nantong | ||
| Sealing | Yx | ||
| Manufacture | NOK/dingji | ||

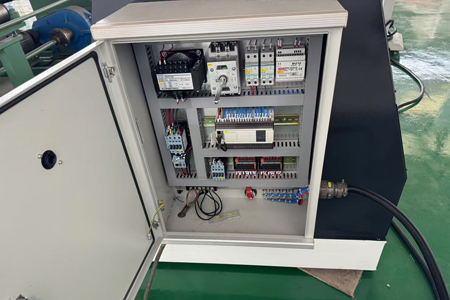

| Electric system | digital control system | ||
| Hydraulic motor | Nantong tongde | ||
| Touch screen | Haiwei 15.6’ | ||
| PLC | XINJE | ||
| Sensor | Milante | ||
| Main electrical element | SchneiderElectric/Siemens | ||
Optional parts:
| Description | Function |
| Internal automatic lifting rack and automatic external carrier | Control of self-weight deformation in workpiece coiling |
| Upper roll cone device technology | Rolling conical workpieces |
| Custom Mould | Rolled angle iron, flat iron, round and square tube |
