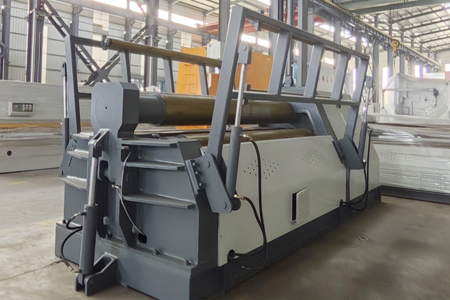

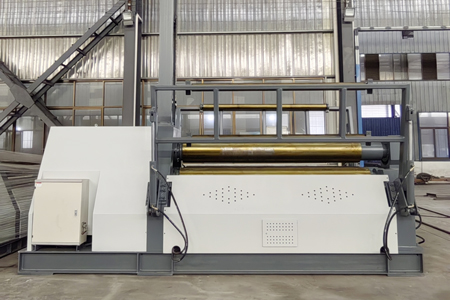

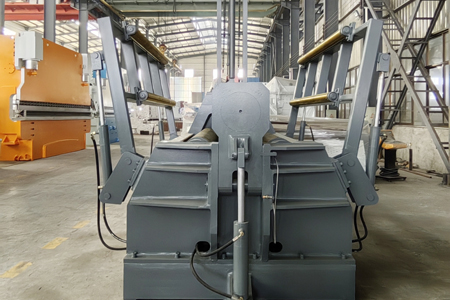

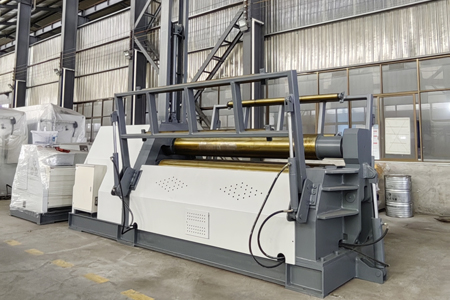

W12CNC-20X2500 Hydraulic Four-roller CNC Plate Rolling Machine
Max Bending Thickness : 20mm
Pre-bending Thickness : 16mm
Max Plate Width : 2500mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | W12-20 x 2500 |
| Top Roll Diameter | Φ350mm |
| Lower Roll Diameter | Φ320mm |
| Side Rolls Diameter | Φ280mm |
| Maximum Bending Thickness | 20mm (CS) |
| Maximum Pre-bending Thickness | 16mm (CS) |
| Maximum Plate Width | 2500mm |
| Rolls Length | 2550mm |
| Drive Roll and Type | Top roll as drive roll driven by hydraulic motor & Planetary reducer drive |
| Material Yield Limit | ≤245Mpa |
| Rotation Speed | About 4m/min |
| Pre-bending Remaining Straight Edge | ≤1.5*Plate Thickness |
| Main Motor Power | 18.5KW |
| Roll Capacity of Plate Edge | T16×B2500×￠550 (σs≤245Mpa) |
| Roll Capacity of Plate except Plate Edge | T20×B2500×￠550 (σs≤245Mpa) |
Equipment Introductions
W12 four-roller plate rolling machine is designed and manufactured by our company with the introduction of advanced technology from Germany and Italy. Equipment electrical, hydraulic and other configurations are selected from international or domestic first-line brands. The machine is fully hydraulic drive, digital control, advanced structure, superior performance, high efficiency, in the international and domestic industry are in the leading level.
Our four-roller plate rolling machine features:
1. Side rollers move in a straight line to increase working stability.
2.Absolute encoder is used to control the synchronisation of both sides of the pressure roller.
The following users are suitable to use four-roller plate rolling machine:
1. First time users of plate rolling machine, because it is one of the easiest to operate plate rolling machine.
2. Inexperienced operators Demanding high productivity
3. Require high precision and improved quality
4. Wish to have only one operator to reduce labour cost
5. Require handling device, feeding device, palletising device due to large plate size, high production volume or for safety reasons.
| NAME | Manufacture | ||
| Bearings | Type | · Heavy Duty Roller Double Row Spherical Bearings | |
| Manufacture | Wafangdian,China | ||
| Rollers | Material | Secondary flaw detection, 45# steel tempering,quenching | |
| Hardness | HB260-300/HRC42-50 | ||
| Manufacture | Jiangsu Huaxiang Special Steel, Nangang Steel,China | ||
| Body frame | Material | Q235A | |
| Processing methods | Welded structural parts, annealing stress – shot blasting, CNC boring and milling machine machining | ||
| Manufacture | AntishiCNC,China | ||
| Hydraulic driver | Jieshite,China | ||
| Hydraulic motor | Nantong tongde,China | ||
| Electrical motor | Type:Y | ||
| Manufacturer: Jiangsu Xingyu/Nantong Hengli,China | |||
| Hydraulic system | Pump | Type | Gear pump |
| Manufacture | Hefei hydraulic parts factory,China | ||
| Valve | Manufacture | YUKEN,China | |
| cylinder | Piston rod | 45# steel, tempered HB217-255. | |
| Manufacture | Nantong Opal,China | ||
| Sealing | UN type | ||
| Manufacture | Dingji,Taiwan | ||
| Electric system | Main electrical components | SIEMENS | |
| Touch screen | SIEMENS | ||
| PLC | SIEMENS | ||
| Numerical Control Calculator | SIEMENS | ||
