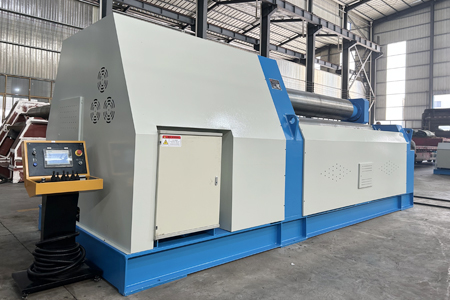

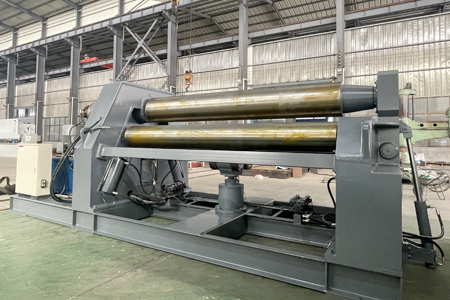

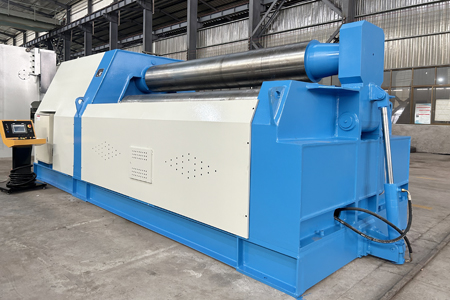

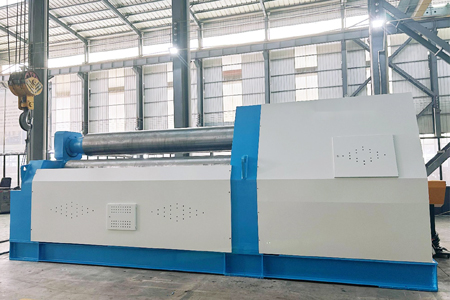

W12-16X3000 Hydraulic Four-roll CNC Plate Rolling Machine
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Model | W12-16×3000 |
Upper roll diameter | Φ320mm |
Bottom roll diameter | Φ300mm |
Side roll diameter | Φ250mm |
Maximum rolled plate thickness | 16mm |
Maximum pre-bending thickness | 12mm |
Coil Maximum Width | 3000mm |
Work roll drive form | Upper roll hydraulic motor drive & planetary deceleration |
Plate Yield Limit | ≤245Mpa |
Rolling speed | About 4m/min |
pre-bent remaining straight edge | ≤1.5 times plate thickness |
Total power of equipment | 15KW |
rolling capacity | T12*B3000*φ500(σs≤245MPa) |
Center of Rolling Capability | T16*B3000*φ500(σs≤245MPa) |
W12 four-roll plate rolling machine is designed and produced by our company introducing advanced technology from Germany and Italy. The electrical, hydraulic and other configurations of the equipment are all selected from international or domestic first-line brands. The machine is fully hydraulically driven, digitally controlled, advanced in structure, superior in performance and high in efficiency, and is at the leading level in the same industry both at home and abroad.
Features of four roll plate rolling machine:
1. The side roller moves linearly to increase the working stability
2. Absolute encoders are used to control the synchronization on both sides of the pressure roller.
The following users are suitable for using the four-roll plate bending machine:
1. Users who use the plate rolling machine for the first time, because this is the most easy-to-operate plate rolling machine
2. The operator lacks inspection and requires high productivity
3. Require high precision and improve quality
4. It is hoped that there is only one operator to reduce labor costs
5. Due to the large size of the board, the production volume is high or for safety reasons, handling devices, feeding devices, and supporting devices are required
Main Parts | Details |
Main Bearing Type | Heavy Roller Double Row Self-aligning Bearings |
Major Bearing Manufacturers | China Mainland |
Work roll material | secondary flaw detection,45crmo |
Work roll hardness | HB260-300/HRC42-50 |
Work roll manufacturer | China Mainland |
Chassis and Side Frame Materials | Q235-A |
Chassis and side frame processing methods | Welded structural parts, normalizing treatment, CNC boring and milling machine processing |
Chassis and side frame manufacturers | China Mainland |
Hydraulic motor manufacturers | China Mainland |
Motor form | Y type |
Motor manufacturers | China Mainland |
Hydraulic pump form | gear pump |
Hydraulic pump manufacturers | China Mainland |
Hydraulic valve manufacturers | China Mainland |
Main oil cylinder block and piston rod | 45#forging,ConditioningHB217-255 |
Main cylinder block and piston rod manufacturers | China Mainland |
Master cylinder seal | UN Type |
Main oil cylinder seal manufacturer | Taiwan |
CNC electrical components | SIEMENS |
CNC system touch screen | SIEMENS |
PLC Programmable Controllers | SIEMENS |
CNC calculation software | SIEMENS |
