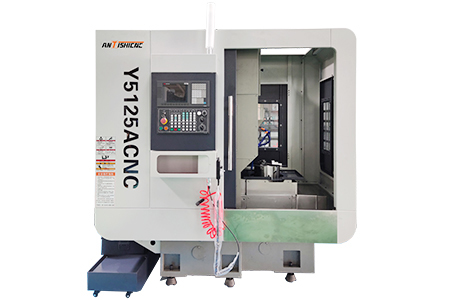

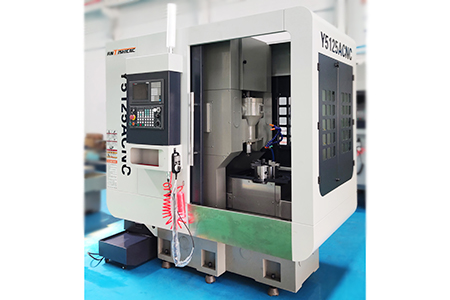

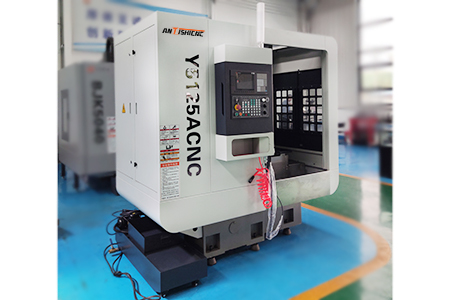

Y5125A CNC Gear Shaper Series
Max. diameter of workpiece external teeth:250mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | Y5125ACNC |
| Max. diameter of workpiece external teeth | 250mm |
| Max. internal tooth diameter of the workpiece | 2 0 0 + D tool mm |
| Max. modulus/tooth width | 6mm/80mm |
| Max. travel length of gear shaper tool | 90mm |
| Max. number of spindle strokes of gear shaper tool | 500(stepless)str/min |
| Spindle diameter | 80mm |
| Max. letting amount of gear shaper tool | 0.38mm |
| Table diameter | 250mm |
| Table aperture | 70mm |
| Gear shaper tool stroke position adjustment amount | 50mm |
| Gear shaper mounting journal diameter | 20/31.743/44.45mm Morse 2 # / Morse 3 # |
| Distance from spindle line of gear shaper tool to spindle line of table | -100~230mm |
| Distance from tool mounting face to work surface | 100~240mm |
| Total machine power | 10Kw |
| Appro. weight | 3000Kg |
Y5125A CNC Gear Shaper Series Product Introduction :
