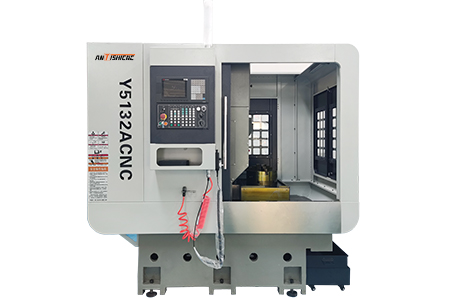

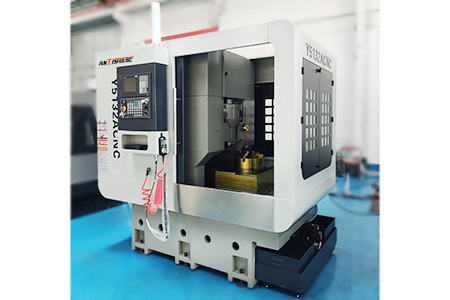

Y5132A CNC Gear Shaper Series
Max. diameter of workpiece external teeth:320mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | Y5132ACNC |
| Max. diameter of workpiece external teeth | 320mm |
| Max. internal tooth diameter of the workpiece | 2 2 0 + D tool mm |
| Max. modulus/tooth width | 6mm/80mm |
| Max. travel length of gear shaper tool | 90mm |
| Max. number of spindle strokes of gear shaper tool | 700(stepless)str/min |
| Spindle diameter | 80mm |
| Max. letting amount of gear shaper tool | ≥0.3mm |
| Table diameter | 320mm |
| Table aperture | 90mm |
| Gear shaper tool stroke position adjustment amount | 50mm |
| Gear shaper mounting journal diameter | 31.743mm |
| Distance from spindle line of gear shaper tool to spindle line of table | -115~270mm |
| Distance from tool mounting face to work surface | 100~215mm |
| Total machine power | 11.5Kw |
| Appro. weight | 4300Kg |
