YQ34-315T Frame hydraulic press machine Machine

YQ34-315T Frame hydraulic press machine Machine Product Introduction :

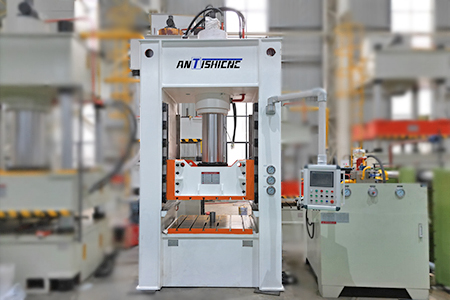

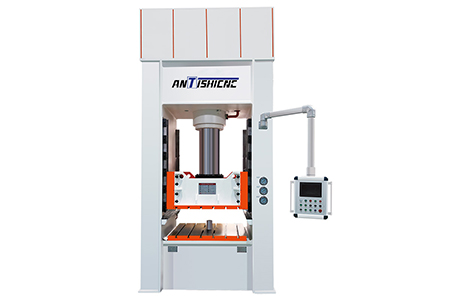

The 315-ton frame hydraulic press machine, also known as 315-ton frame hydraulic press machine, model YQ34-315T, is a commonly used forging and pressing equipment. Its structure is sturdy, adopting full steel plate welding frame type structure, which is optimized and designed by computer to ensure the stability and precision of the equipment. Quadrangular eight-face guide rail design, high guiding precision and strong resistance to partial loads, hydraulic preloading, and a centralized lubrication system to ensure smooth operation of the equipment.

This 315-ton frame hydraulic press machine frame for the overall frame structure, the main structural components for the steel plate welded box structure, using high-quality Q345 steel plate, welded through the carbon dioxide gas shielded welding, structural welding standards in accordance with the implementation of the relevant national standards, beveling in line with industry standards, the weld to do the flaw detection process, no welding slag and scarring phenomenon, and by the tempering process to eliminate the structural stress, and finally sanding and painting treatment. Finally, it is sanded and sprayed with paint, and the whole frame is smooth and beautiful.

Features:
1. 315 tons of frame hydraulic press machine body using computer optimization design, for the whole steel plate welding frame structure, good precision retention.
2. Hydraulic control system adopts cartridge valve integrated system, reliable, large flow, small internal leakage, long service life, the system is highly integrated, reducing the connection pipeline and leakage points.

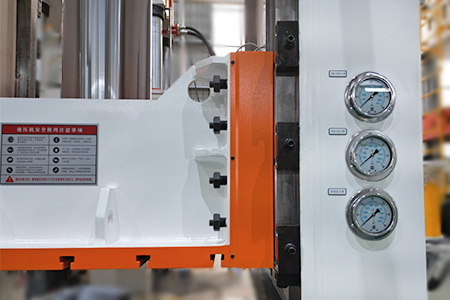

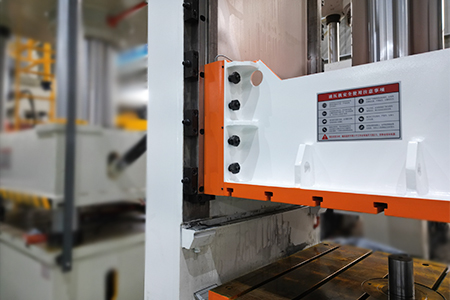

3. Four corners and eight surfaces guide rail, high guiding precision, strong resistance to partial load, and centralized lubrication.
4. 315 tons frame hydraulic press machine adopts centralized control, with three operation modes: adjusting, manual and semi-automatic (fixed range single time and fixed pressure single time).
5. Slider movement speed, high efficiency.
6. Slider working pressure, no-load fast down and slow.
7. The tonnage of the pressing cylinder is realized by a piston cylinder, the cylinder body is high-quality forged steel, and the surface of the piston rod is quenched by medium-frequency quenching treatment, with high hardness and long service life. The main seals of the cylinder adopt high-quality sealing ring to ensure reliable sealing.

Operation mode:
1.The press is equipped with pointing and semi-automatic operation mode.
2.The slide stroke of the hydraulic press machine is adjusted by the stroke control device.
3.In addition to the buttons on the operating table to complete all the actions of the press, there should also be “two-handed pressing”, “return”, “stop”, “emergency stop” and other buttons. Buttons such as “stop”, “emergency stop”, etc.

Safety protection devices:
1.Set the emergency stop button, press the emergency stop button, the press immediately stop the power stationary.
2.The slider is equipped with limit switches at the upper and lower limits.
3.Hydraulic support insurance circuit is set in the lower chamber of piston cylinder.
