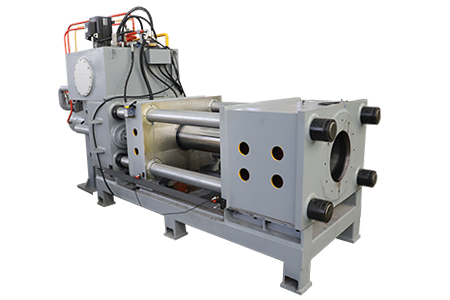

YQ68-200T Horizontal Hydraulic press machine Machine
Maximum liquid pressure:25Mpa
Maximum opening height:900mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Description | YQ68-200T-F-K | YQ68-200T-A-K | YQ68-200T-C-Z |
| Maximum liquid pressure (Mpa) | 25 | 25 | 25 |
| Slider stroke (mm) | 500 | 500 | 500 |
| Maximum opening height (mm) | 900 | 900 | 900 |
| Table size (mm) | 660X660 | 800X800 | 1000X900 |
| Down speed of empty range (mm/s) | 100 | 110 | 190 |
| Working speed (mm/s) | 6-12 | 6–12 | 12-18 |
| Return speed (mm/s) | 100 | 100 | 160 |
| Motor power (kw) | 7.5 | 11 | 11 |
| Oil pump displacement (ml/R) | 40 | 63 | 63 |
| Jacking force (T) | 35 | 50 | 50 |
| Ejection stroke (mm) | 250 | 250 | 250 |
| Approximate weight (T) | 3.4 | 4.2 | 5 |
Note: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTISHICNC.
YQ68-200T Horizontal Hydraulic press machine Machine Product Introduction :
Horizontal hydraulic press machine, also known as horizontal hydraulic press machine, can be viewed structurally as hydraulic press machine placed in a horizontal position. Similar to conventional vertical hydraulic press machine, horizontal hydraulic press machine are available in three common configurations: horizontal four-column hydraulic press machine, horizontal single-column hydraulic press machine, and horizontal three-column hydraulic press machine. Horizontal hydraulic press machine are easy to assemble, overhaul, maintenance, workpieces and molds are relatively easy to take and put. Horizontal hydraulic press machine, also known as horizontal hydraulic press machine, can be viewed structurally as hydraulic press machine placed in a horizontal position. Similar to conventional vertical hydraulic press machine, horizontal hydraulic press machine have three common structures: horizontal four-column hydraulic press machine, horizontal single-column hydraulic press machine, and horizontal three-column hydraulic press machine.
Features:
1. Horizontal hydraulic press machine lying down placed on the height requirements of the plant workshop is low, but at the same time increase the footprint;
2. Horizontal hydraulic press machine of the filling tank and valve master cylinder is much lower than the common vertical hydraulic press, so maintenance, maintenance is more convenient, without having to climb high;
3. Horizontal hydraulic press machine for some of the heavy mold installation provides convenience, you can use aerial cranes and other vertical lifting and lowering, not subject to the limitations of the hydraulic press slide beam.
Working principle:
The working principle of the horizontal hydraulic press is through the hydraulic system of oil pipeline to send oil into the hydraulic cylinder, through the reciprocating movement of the piston to realize the operation of mechanical processing. The working pressure of the machine, the pressing speed, the formation and range of no-load fast down and deceleration can be customized according to the process requirements.
