4H 5H 4HW 5HW Series Turret milling machine
X axis travel : 970-1070mm
Y axis travel : 380-420mm
Z axis travel : 450mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | 4H | 5H | 4HW | 5HW |
| Table size（mm） | 1270X254 | 1370X305 | 1370X305 | 1570X320 |
| X axis travel（mm） | 780-850 | 770-880 | 770-850 | 970-1070 |
| Y axis travel（mm） | 400 | 380 | 380-420 | 380-420 |
| Z axis travel（mm） | 450 | 450 | 400 | 450 |
| T slot（number-width*pitch） | 3-16*50 | 3-16*50 | 3-16*50 | 3-16*50 |
| Distance between spindle nose and table surface（mm） | 420 | 440 | 540 | 540 |
| Spindle taper | R8 | NT40 | R8/ISO40 | NT40/ISO40 |
| Spindle travel（mm） | 127 | 127 | 127 | 127 |
| Spindle speed range(steps)（rpm） | 60HZ:60-4540 | 50HZ:66-5440 | Vertical/Horizontal(60-4540(16steps)/40-1350(12steps)) | |
| Spindle feed range(steps)（mm） | 3steps 0.04(0.0015)/0.08(0.003)/0.15(0.006) | |||
| Spindlemain motor power （KW） | 2.2kw/3HP | 3.7kw/5HP | V/H(2.2/3) | V/H(3.75/3) |
| Head rotation(left-right) | 90° | 90° | 90° | 90° |
| Head rotation(front-rear) | 45° | 45° | 45° | 45° |
| Packing size（mm） | 1700X1600X2000 | 1700X1600X2000 | 1800X1780X2350 | 1800X1780X2350 |
| rough weight（kg） | 1200 | 1350 | 1400 | 1400 |

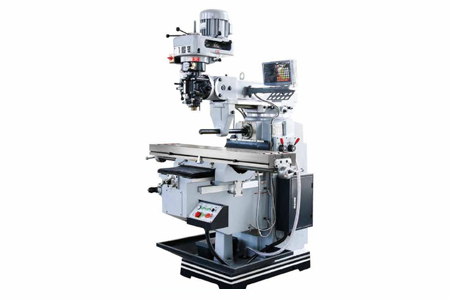

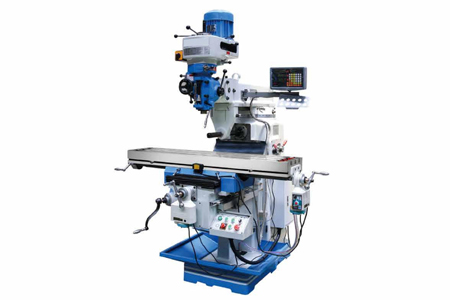

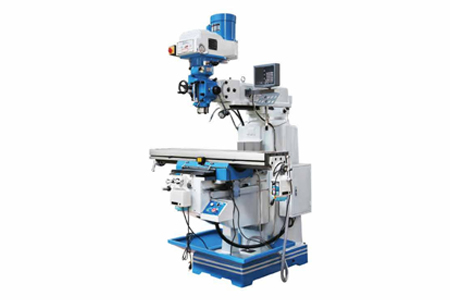

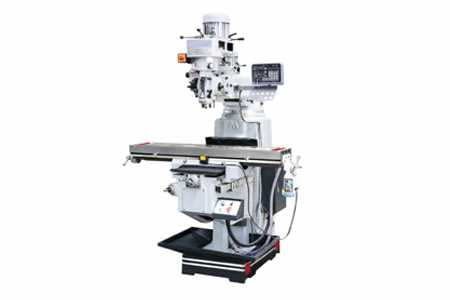

4H 5H 4HW 5HW Series Turret milling machine
Turret milling machine is a lightweight universal metal cutting machine,
with vertical and horizontal milling two functions.
It can mill the planes, bevels, grooves and splines of medium and small parts.
Widely used in machining, Mold, instrument, instrument and other industries.
Optional configuration
2or3 Axis DRO
X/Y Axis Automatic feed
Z – Axis electric lift
Dividing head
system
