Conventional Milling Machine

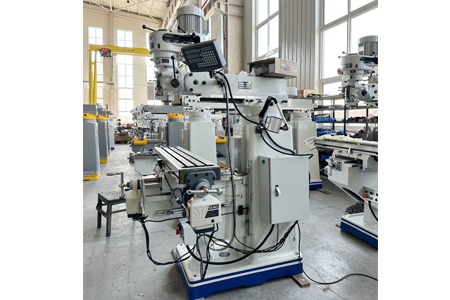

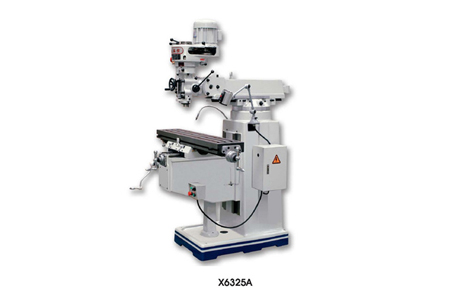

X6325A Universal Turret Milling Machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Item /Model Unit X6325A
Table size mm/” 254×1270(10”50”)
Long travel mm 810
Cross travel mm 380
Vertical travel mm 400
T-slot No.and size mm 3×16
Ram Travel mm 470
Distance from spindle nose to table surface mm 0~400
Spindle hole taper Standard :R8  Optional :ISO 30/ISO40
Spindle travel mm 127
Spindle Speed rpm Standard: Shiftgrade50HZ:66-4540 60HZ :80-5440
rpm Optional :variable 60-4200
Auto.quill feed mm Three steps:

0.04(0.0015”)/0.08(0.003”)/0.15(0.006”)mm/revolution

Spindle motor KW/HP 2.25KW/3HP
Head swivel ° 90°
Head tilting ° 45°
Dimension

of package

One miller per case mm 1516x1550x2080
Two miller per case mm 1650x1790x2170
Three miller per case mm 1650x2285x2235
G.W/set KG 1280 1320

Turret Milling Machine is also called Rocker arm universal milling machine

Products Feature:

1.Our milling machines has passed the strict CE certification and had already got the CE certificate. Our factory also get the ISO certificate.

2.Our universal turret milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.

3.Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others. NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.

Product Description :

X6323A
1.Double 55° swallowtail guide way is adopted on both Y, Z-axis, so it is easy to adjust and repair.
2.Adopted strengthen rib on both sides of the column that makes the machine rigidly and beautiful.

X6323B
1. 55° swallowtail guide way is adopted on Z-axis, and rectangular guide way on Y-axis.
2. Adopted strengthen rib on both sides of the column, that makes the machine rigidly and beautiful.

X6325
1. Rectangular guideway on Y and Z-axis is featured a good rigidity and stability.
2. The guideway on saddle is lined with TF wear.

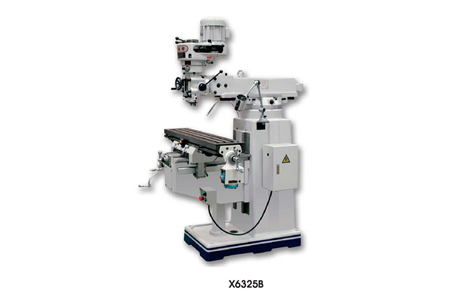

X6325B
1. Rectangular guideway on Y-axis and 55°swallowtail guideway on Z-axis. It makes the machine stably and easy to adjust.
2. The guideway on saddle is lined with TF wearable material.

X6325C
1. Fixed structure is used to connect the mill head without ram, which makes the cut intensity will.
2. Rectangular guideway on Y-axis and 55°swallowtail guideway on Z-axis. It makes the machine stably and easy to adjust.
3. The guideway on saddle is lined with TF wearable material.

X6325D
1. Rectangular guideway on Z-axis is featured a good rigidity and stability.
2. The guideway on saddle is lined with TF wearable material.

XU6325
1. Rectangular guideway on Y and Z-axis is featured a good rigidity and stability.
2. X,Y axis motor 250w. Feed rate: 15, 23, 33, 48, 78, 114, 166, 257(8kinds).

X6330A
1. Fixed structure is used to connect the mill head without ram, which makes the cut intensity well.
2. Rectangular guideway on Z-axis is featured a good rigidity and stability.
3. The guideway on saddle is lined with TF wearable material.

X6333
1. Rectangular guideway on Z-axis is featured a good rigidity and stability.
2. The guideway on saddle is lined with TF wearable material.

Standard Equipment

drawbar Handle lubricate Electrical cabinet
Tools and tool box Working light 16 speeds milling head

Optional Equipment

Standard Equipment

drawbar Handle lubricate Electrical cabinet
Tools and tool box Working light 16 speeds milling head

Optional Equipment
